[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Sparkle unit, 2.5-slot, 242 mm long. Rated 170 W; Sparkle recommends a 600 W supply.

MFR WARRANTY
Limited SPARKLE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

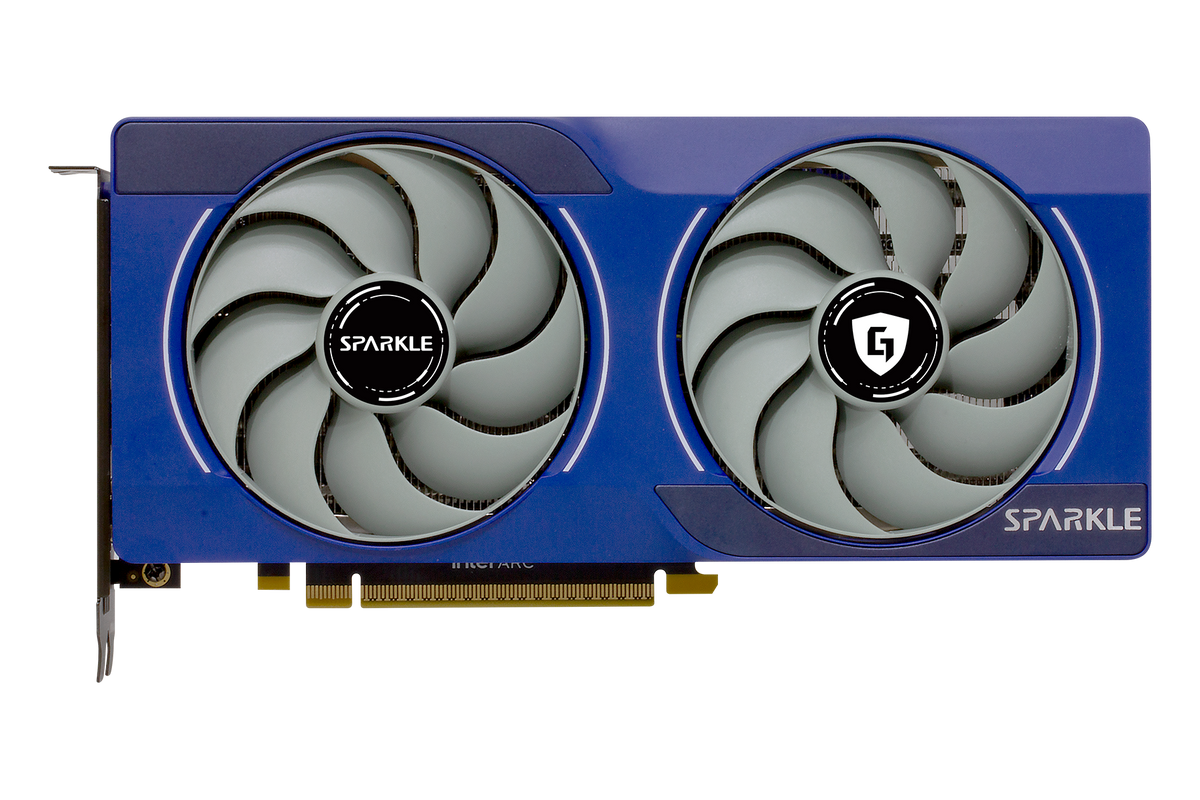

The Sparkle GUARDIAN ARC B570 OC is a 10 GB GDDR6 graphics card built on Intel's ARC B570 with 18 Xe cores, a 2660 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 10 GB GDDR6 · 160-bit bus · 19 Gbps · 380 GB/s bandwidth
  • Cores 18 Xe cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2660 MHz boost
  • Interface PCIe 4.0 x8 · 1x HDMI 2.1, 3x DisplayPort 2.1 at 7680×4320
  • Power 170 W board power · 1x 8-pin · 600 W recommended PSU

Limited manufacturer warranty from Sparkle, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2660 MHz
BOOST CLOCK
10 GB
VIDEO MEMORY
18
XE CORES
170 W
BOARD POWER
[ PARAMETER TABLE ] // 24 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor Intel
Series Arc B
Process Node TSMC N5
Xe Cores 18
Boost Clock 2660 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 10 GB
Memory Type GDDR6
Memory Bus 160-bit
Memory Bandwidth 380 GB/s
Memory Clock 19000 MHz (19 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 170 W
Min PSU 600 W
Power Connectors 1x 8-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 3x DisplayPort 2.1
Max Resolution 7680×4320
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x8
Length 242 mm
Slot Width 2.5-slot
Dimensions 242 x 105 x 44 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer Limited SPARKLE → (opens in a new tab)
NIMBUS 1 Year →
