[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
1770 MHz
BOOST CLOCK
24GB
VIDEO MEMORY
4608
SHADER CORES
280W
TOTAL BOARD PWR
[ PARAMETER TABLE ] // 27 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01

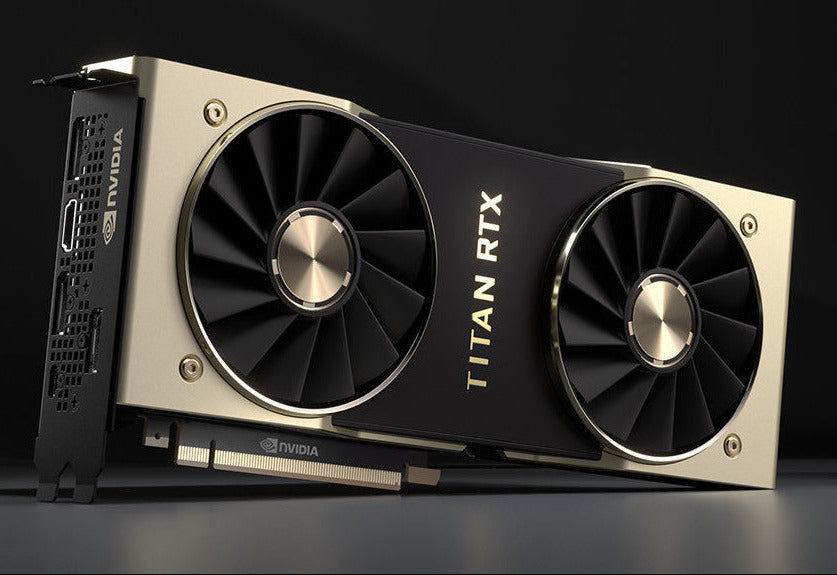

GPU Vendor NVIDIA
Series TITAN
Process Node 12nm
Shader Cores 4608
CUDA Cores 4608
RT Cores 72
Tensor Cores 576
Boost Clock 1770 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 24GB
Memory Type GDDR6
Memory Bus 384-bit
Memory Speed 14 Gbps
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 280W
Min PSU 650W
Power Connectors 2x 8-pin
Cooling Dual axial, 2 fans
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI, 3x DisplayPort, 1x USB-C
Max Resolution 7680x4320
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 3.0 x16
Length 267mm
Slot Width 2
Form Factor 2 slot, ATX
Dimensions 267 x 116 x 35 mm
[ FEATURES / API ] SPEC·06
DirectX DirectX 12 Ultimate
Vulkan Yes
FreeSync G-SYNC Compatible
