[ UNIT BRIEFING ]

// ORBITAL INVENTORY

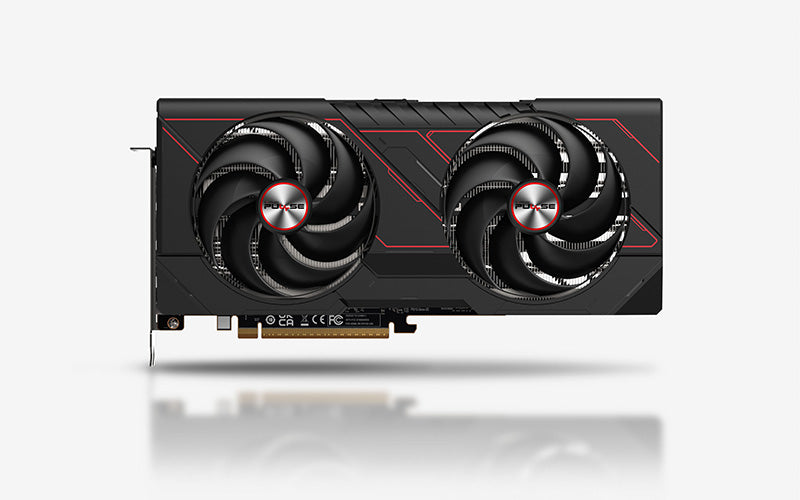

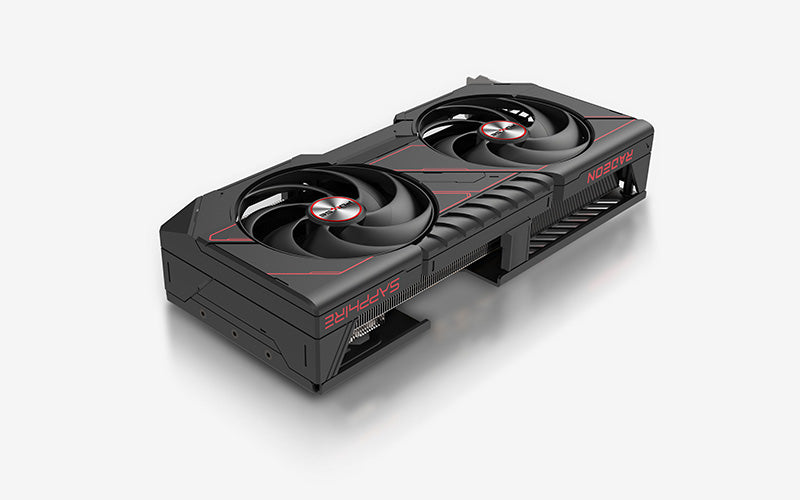

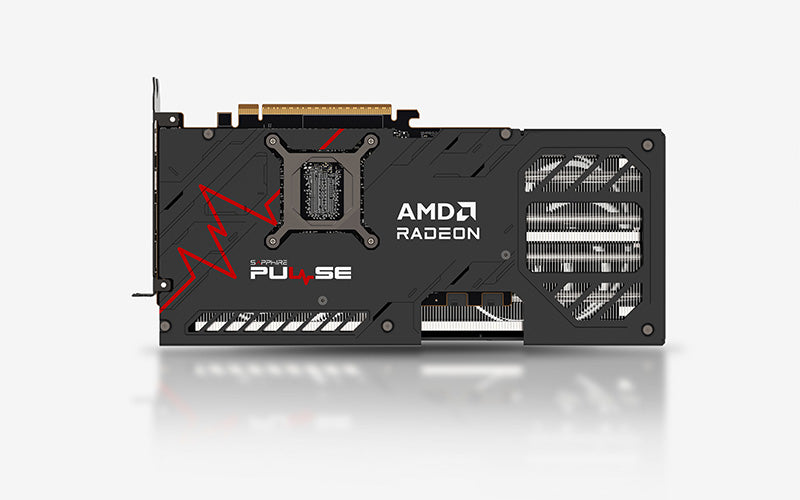

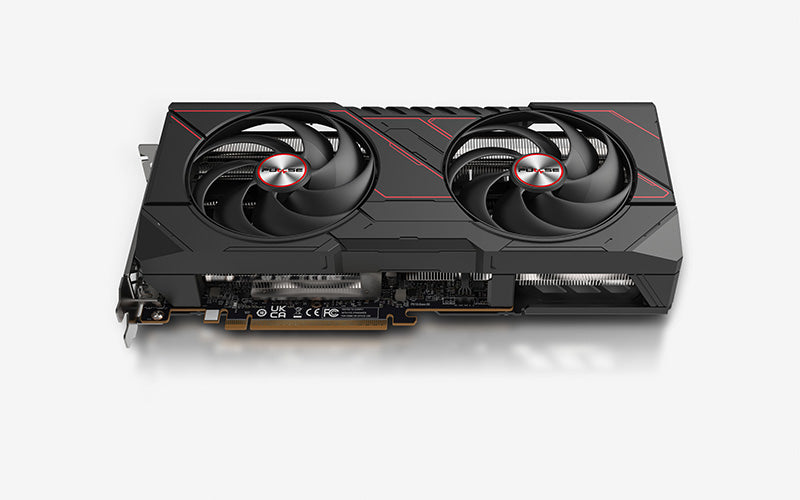

Sapphire unit, dual-fan cooling, 2.5-slot, 280 mm long. Rated 220 W; Sapphire recommends a 650 W supply.

NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA
* Verify final terms with the manufacturer — NIMBUS listing may differ

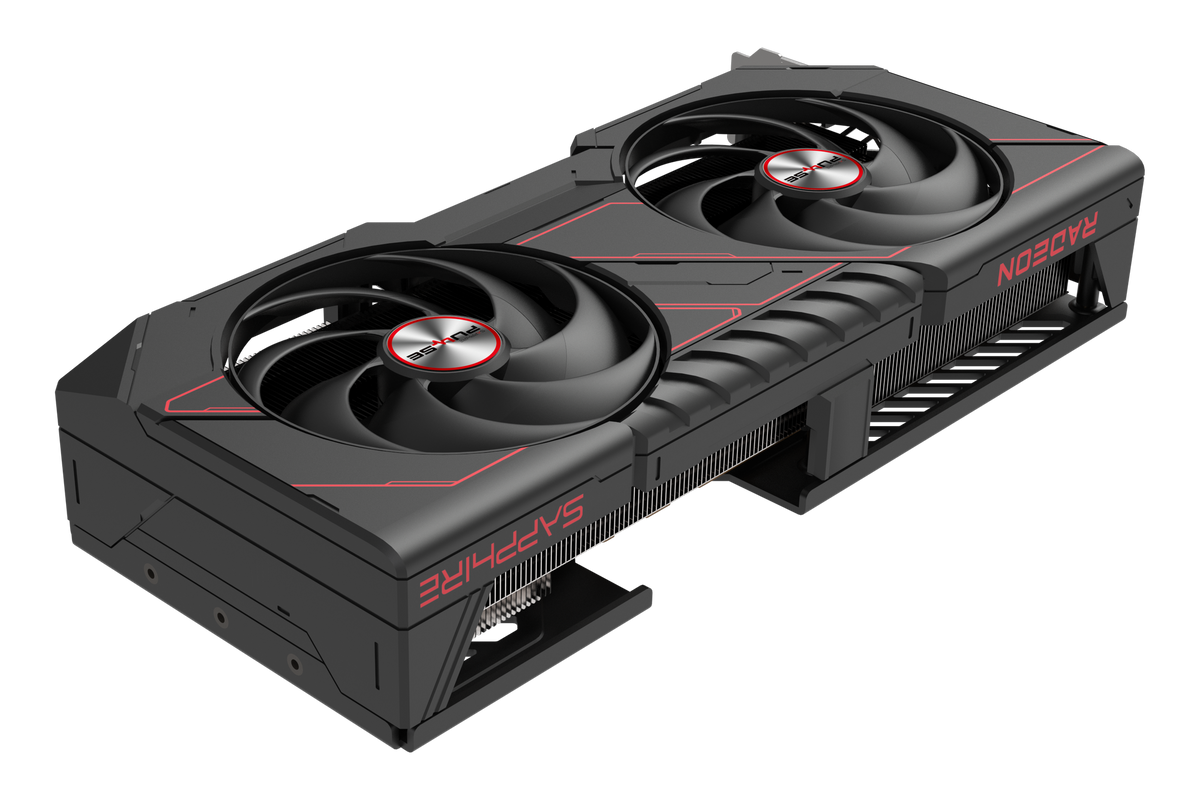

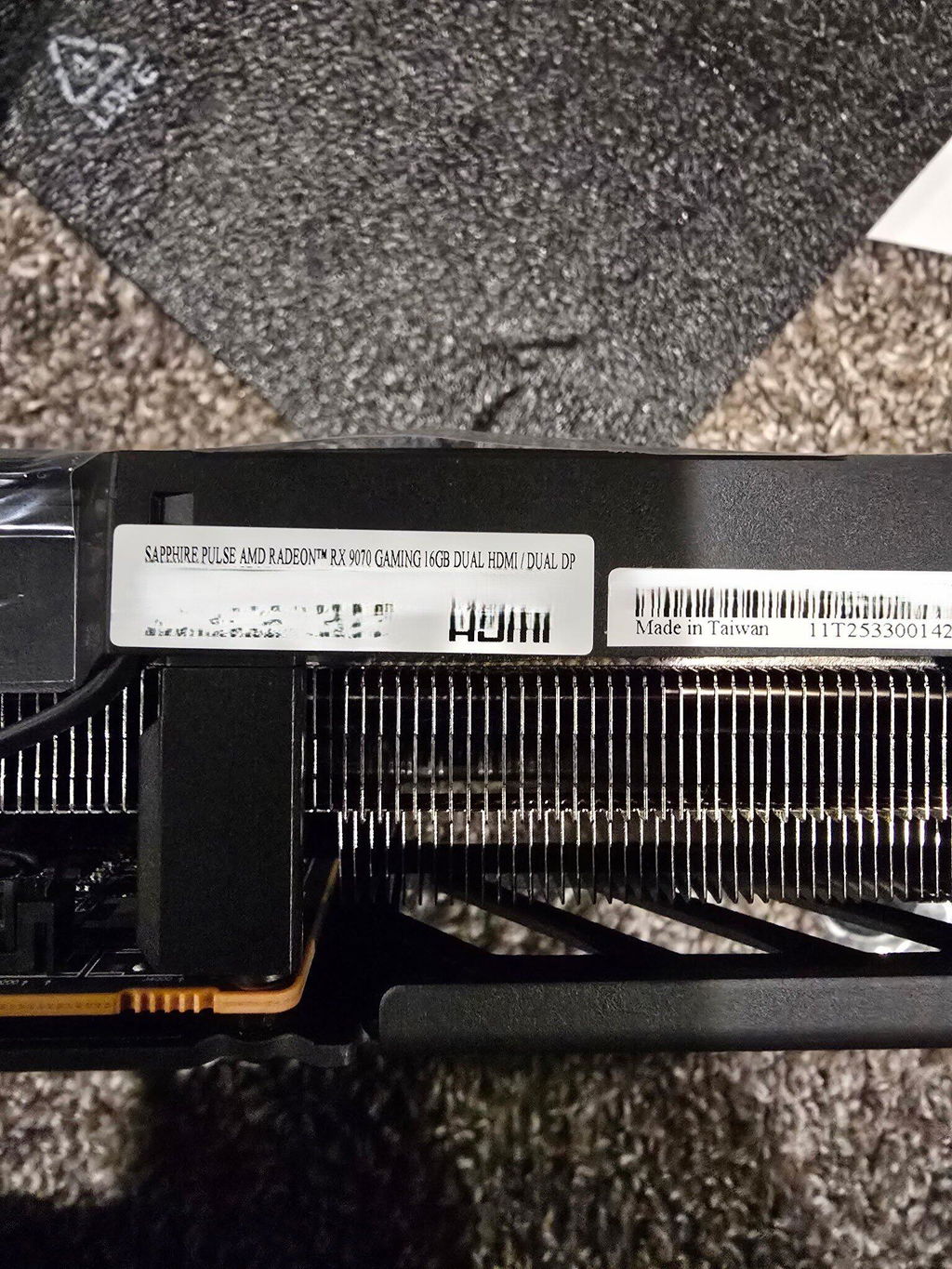

The Sapphire PULSE RX 9070 is a 16 GB GDDR6 graphics card built on AMD's RX 9070 with 3,584 stream processors, a 2520 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR6 · 256-bit bus · 20 Gbps · 640 GB/s bandwidth
  • Cores 3,584 stream processors
  • Boost 2520 MHz boost · 2070 MHz game

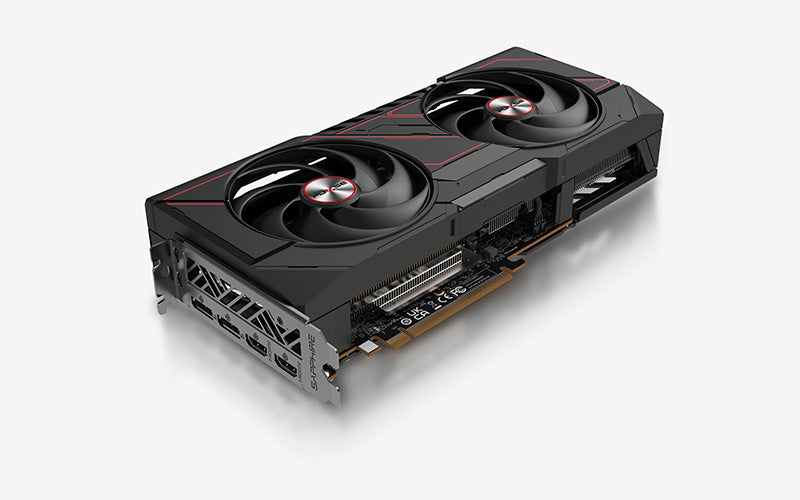

  • Interface PCIe 5.0 x16 · 2x HDMI, 2x DisplayPort 2.1a · up to 4 displays at 7680×4320
  • Power 220 W board power · 2x 8-pin · 650 W recommended PSU

Limited manufacturer warranty from Sapphire, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2520 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
3584
STREAM PROCESSORS
220 W
BOARD POWER
[ PARAMETER TABLE ] // 32 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 9000
Process Node 4nm
Stream Processors 3584
Compute Units 56
Ray Accelerators 56
Infinity Cache 64MB
Boost Clock 2520 MHz
Game Clock 2070 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 640 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 220 W
Min PSU 650 W
Power Connectors 2x 8-pin
Cooling Dual Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI, 2x DisplayPort 2.1a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 280 mm
Slot Width 2.5-slot
Form Factor 2.5 slot, ATX
Dimensions 280 x 120.25 x 51.5 mm
[ FEATURES / API ] SPEC·06
DirectX DirectX 12 Ultimate
Vulkan Yes
FreeSync Yes
[ SUPPORT ] SPEC·07
NIMBUS 1 Year →
