[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2680 MHz
BOOST CLOCK
24GB
VIDEO MEMORY
6144
SHADER CORES
420W
TOTAL BOARD PWR
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 7000
Process Node 5nm
Shader Cores 6144
Compute Units 96
Ray Accelerators 96
Infinity Cache 96MB
Boost Clock 2680 MHz
Game Clock 2510 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 24GB
Memory Type GDDR6
Memory Bus 384-bit
Memory Speed 20 Gbps
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 420W
Min PSU 800W
Power Connectors 3x 8-pin
Cooling Vapor-X, 3 fans
[ DISPLAY & OUTPUTS ] SPEC·04

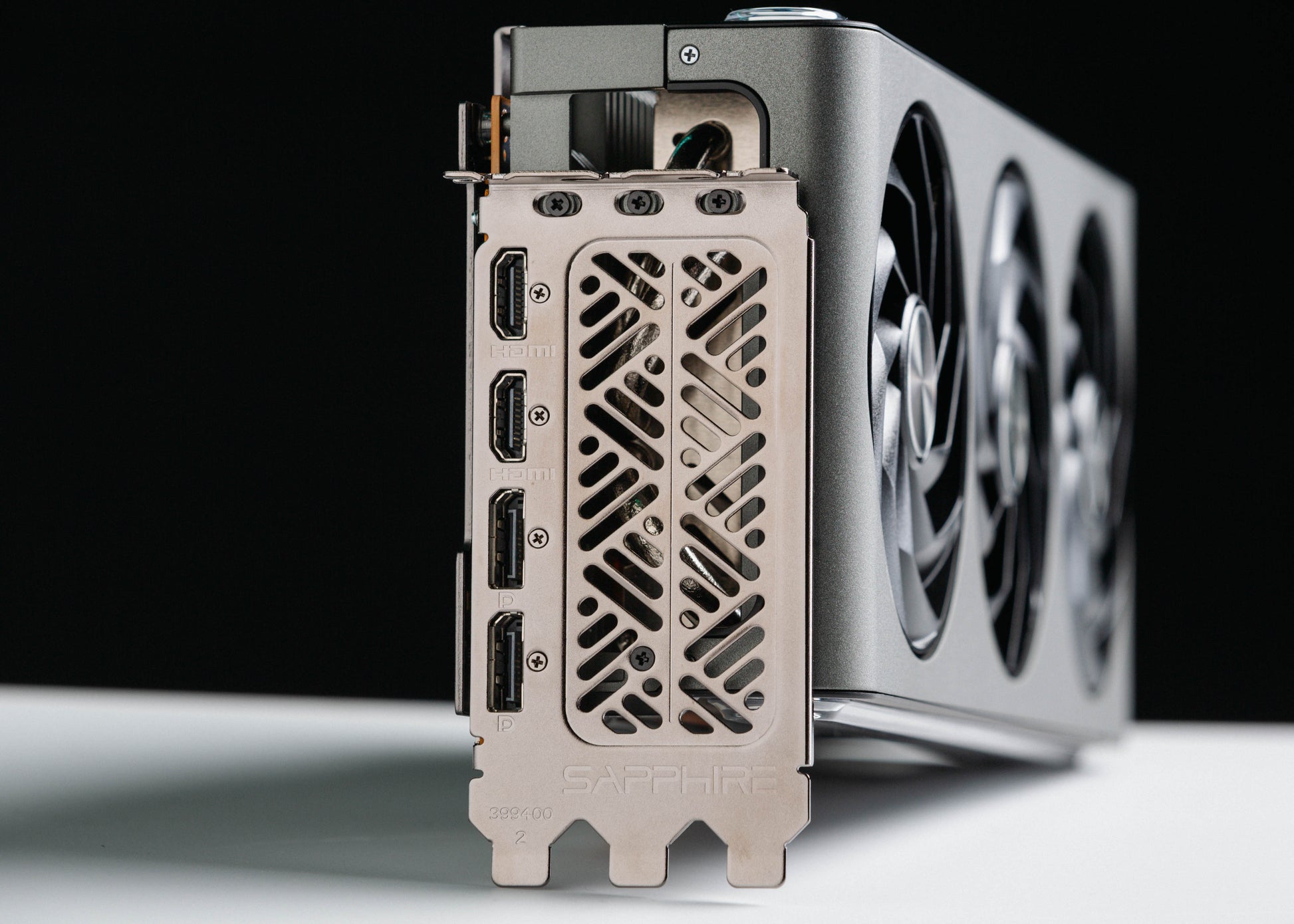

Outputs 2x HDMI, 2x DisplayPort
Max Resolution 7680x4320
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 320mm
Slot Width 3.5
Form Factor 3.5 slot, ATX
Dimensions 320 x 135.75 x 71.6 mm
[ FEATURES / API ] SPEC·06
DirectX DirectX 12 Ultimate
Vulkan Yes
FreeSync Yes
