Gigabyte unit, triple-fan cooling, 3.5-slot, 330 mm long. Rated 575 W; Gigabyte recommends a 1000 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

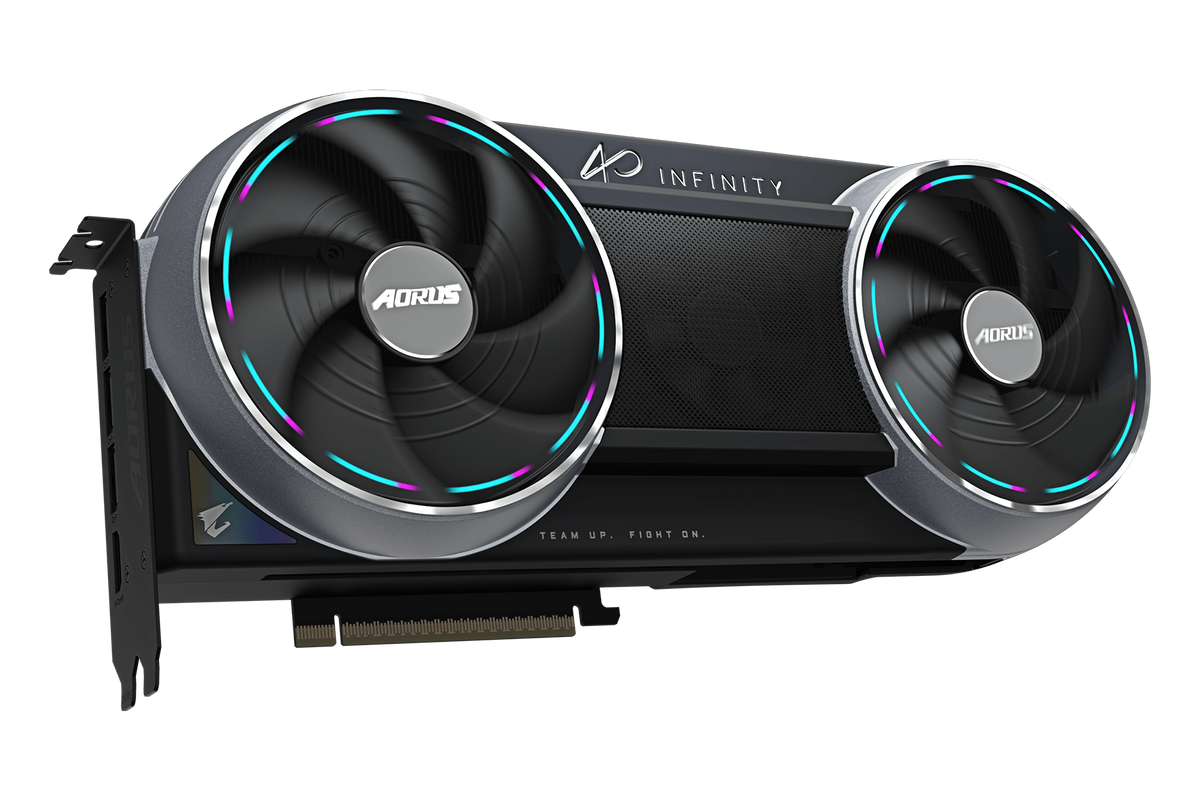

The Gigabyte AORUS INFINITY RTX 5090 is a 32 GB GDDR7 graphics card built on NVIDIA's RTX 5090 with 21,760 CUDA cores, a 2730 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 32 GB GDDR7 · 512-bit bus · 28 Gbps · 1792 GB/s bandwidth
  • Cores 21,760 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2730 MHz boost · 2010 MHz base
  • Interface PCIe 5.0 x16 · 1x HDMI 2.1b, 3x DisplayPort 2.1b · up to 4 displays at 7680 x 4320
  • Power 575 W board power · 1x 16-pin · 1000 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2730 MHz
BOOST CLOCK
32 GB
VIDEO MEMORY
21760
CUDA CORES
575 W
BOARD POWER
[ PARAMETER TABLE ] // 29 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 5000
Process Node TSMC 4N
CUDA Cores 21760
Boost Clock 2730 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 32 GB
Memory Type GDDR7
Memory Bus 512-bit
Memory Bandwidth 1792 GB/s
Memory Clock 28000 MHz (28 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 575 W
Min PSU 1000 W
Power Connectors 1x 16-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1b, 3x DisplayPort 2.1b
Max Resolution 7680 x 4320
Max Monitors 4
DisplayPort 2.1b
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 330 mm
Slot Width 3.5-slot
Form Factor Full-Height/Full-Length
Dimensions 330 x 145 x 65 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
