MSI unit, dual-fan cooling, 197 mm long. Rated 145 W; MSI recommends a 550 W supply.

MFR WARRANTY
3 Years Limited MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

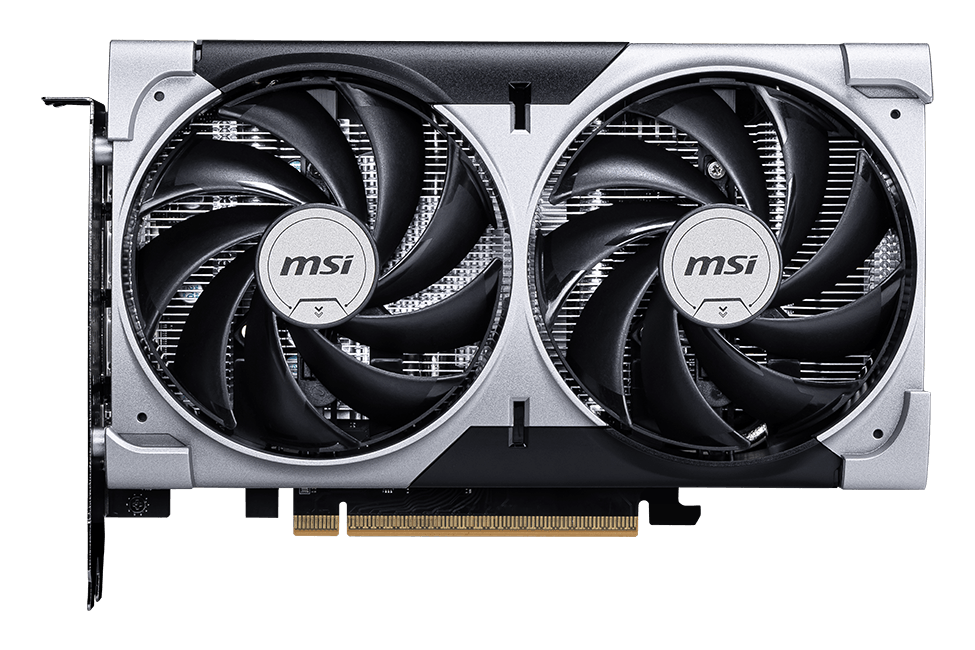

The MSI VENTUS 2X RTX 5060 is an 8 GB GDDR7 graphics card built on NVIDIA's RTX 5060 with 3,840 CUDA cores, a 2527 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 8 GB GDDR7 · 128-bit bus · 28 Gbps · 448 GB/s bandwidth
  • Cores 3,840 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2527 MHz boost · 2280 MHz base
  • Interface PCIe 5.0 x16 · 1x HDMI 2.1b, 3x DisplayPort 2.1b · up to 4 displays at 7680 x 4320
  • Power 145 W board power · 1x 8-pin · 550 W recommended PSU

3 Years Limited manufacturer warranty from MSI, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2527 MHz
BOOST CLOCK
8 GB
VIDEO MEMORY
3840
CUDA CORES
145 W
BOARD POWER
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 5000
CUDA Cores 3840
Boost Clock 2527 MHz
Factory OC Yes
[ MEMORY ] SPEC·02
Memory (VRAM) 8 GB
Memory Type GDDR7
Memory Bus 128-bit
Memory Bandwidth 448 GB/s
Memory Clock 28000 MHz (28 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 145 W
Min PSU 550 W
Power Connectors 1x 8-pin
Cooling Dual Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1b, 3x DisplayPort 2.1b
Max Resolution 7680 x 4320
Max Monitors 4
DisplayPort 2.1b
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 197 mm
Slot Width 2-slot
Form Factor Full-Height/Half-Length
Dimensions 197 x 120 x 41 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited MSI → (opens in a new tab)
NIMBUS 1 Year →
