MSI board, 305 x 244 mm, 10 rear USB ports. Supports Intel® Celeron®, Intel® Pentium®.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

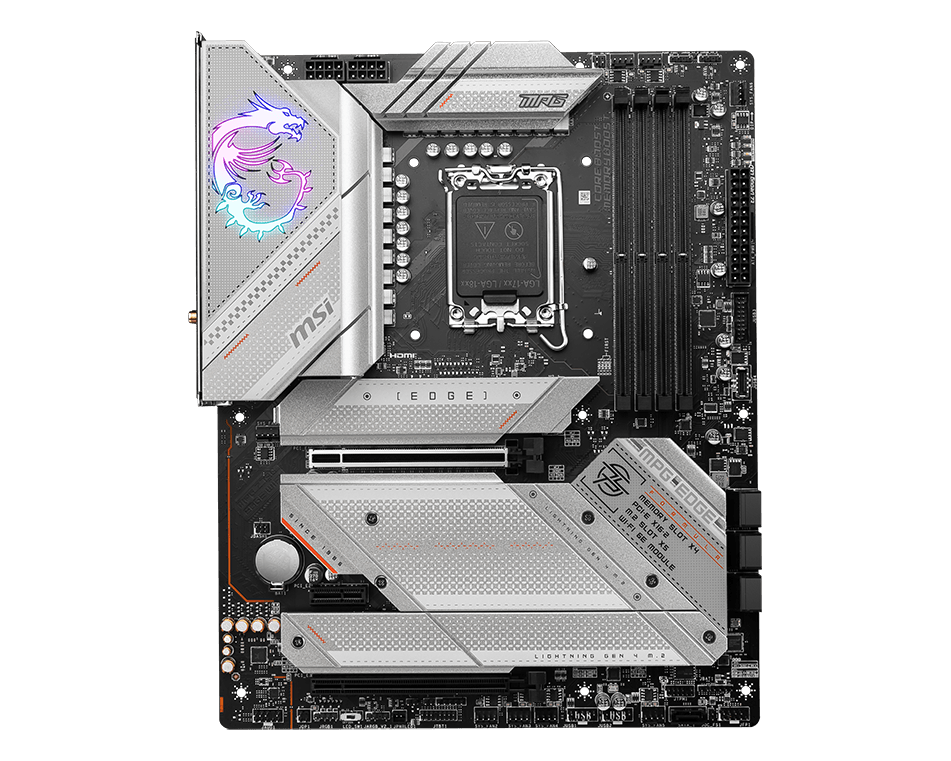

The MSI MPG Z790 EDGE WIFI is an LGA1700 ATX motherboard built on Intel's Z790 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 5 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform LGA1700 · Z790 chipset · Intel® Celeron®, Intel® Pentium®
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 7200 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 3.0 x1, 1x PCIe 4.0 x4 · 5x M.2 (5x PCIe 4.0) · 7x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC4080 audio
  • Rear I/O 10 USB (1x USB-C 20Gbps, 4x USB-A 10Gbps, 1x USB-C 10Gbps, 4x USB-A 5Gbps) · 1x HDMI, 1x DisplayPort

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
Z790
CHIPSET
4 DIMM
MEMORY SLOTS
5 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset Z790
CPU Platform Intel
Form Factor ATX
CPU Support Intel® Celeron®, Intel® Pentium®
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 7200 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 3.0 x1, 1x PCIe 4.0 x4
PCIe Gen 5.0
M.2 Slots 5x M.2 (5x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 7x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC4080
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Silver
Brand MSI
Condition NEW
MFR Part MPG Z790 EDGE WIFI
