Gigabyte board, 305 x 285 mm, 12 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

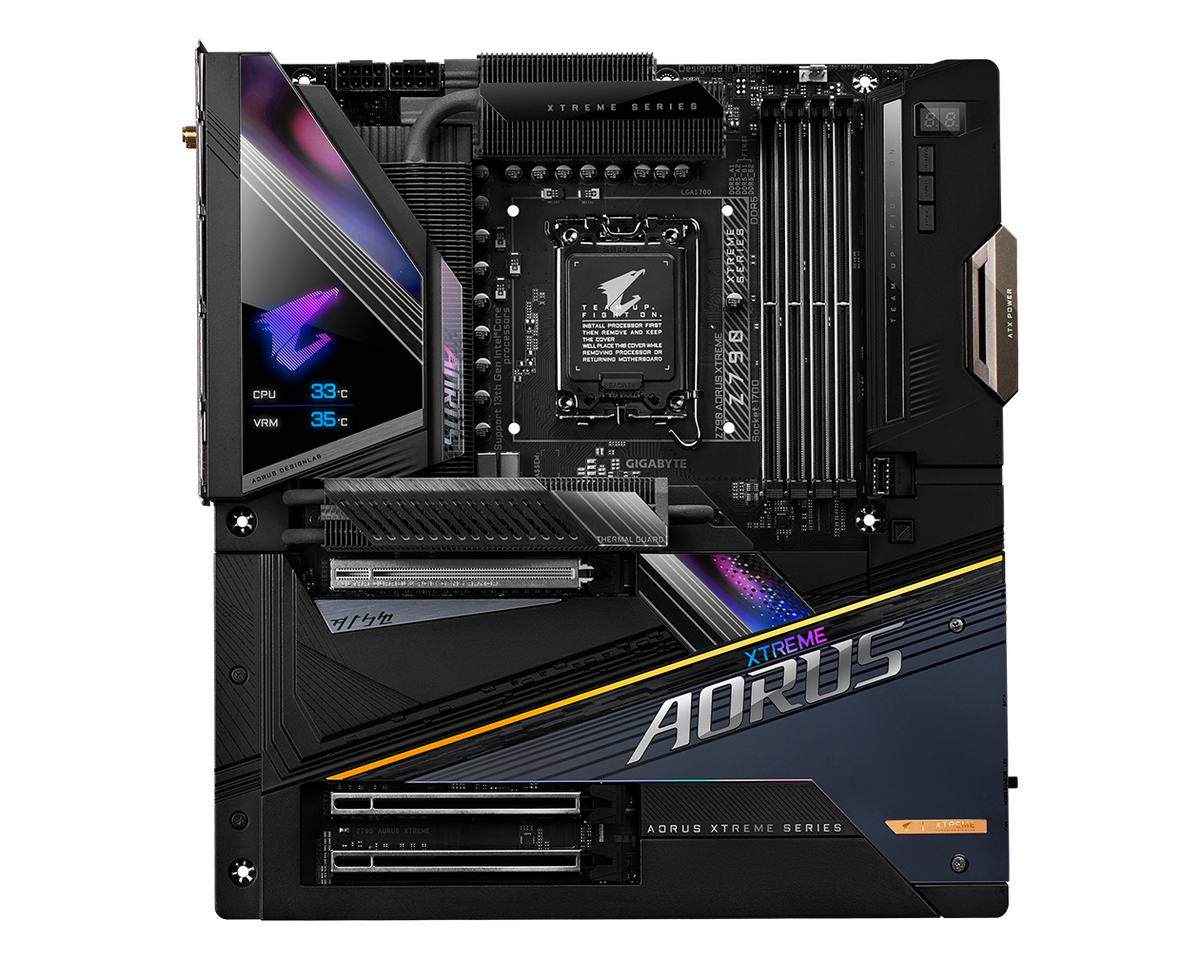

The Gigabyte Z790 AORUS XTREME is an LGA1700 E-ATX motherboard built on Intel's Z790 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 5 M.2 slots, 10GbE LAN and Wi-Fi 6E.

  • Platform LGA1700 · Z790 chipset · Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4000 to 4800 MT/s
  • Connectivity 10GbE LAN (Marvell AQtion AQC107 10GbE + Intel 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)) · Wi-Fi 6E · Bluetooth 5.3 · ESS ES9280AC audio
  • Rear I/O 12 USB (2x USB-C 10Gbps, 10x USB-A 10Gbps) · 1x HDMI 2.0, 1x DisplayPort 1.2 · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
Z790
CHIPSET
4 DIMM
MEMORY SLOTS
5 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset Z790
CPU Platform Intel
Form Factor E-ATX
CPU Support Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4000 to 4800 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 2x PCIe 3.0 x16
PCIe Gen 5.0
M.2 Slots 5x M.2 (1x PCIe 5.0, 4x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps, 2.5 Gbps
LAN Chip Marvell AQtion AQC107 10GbE + Intel 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wi-Fi Wi-Fi 6E
Wireless Chip Intel Killer AX1690
Bluetooth 5.3
Display Outputs 1x HDMI 2.0, 1x DisplayPort 1.2
Audio ESS ES9280AC
[ PHYSICAL ] SPEC·05
Dimensions 305 x 285 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part Z790 AORUS XTREME
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
