MSI board, 305 x 244 mm, 8 rear USB ports. Supports AMD Ryzen 5000 / 3000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

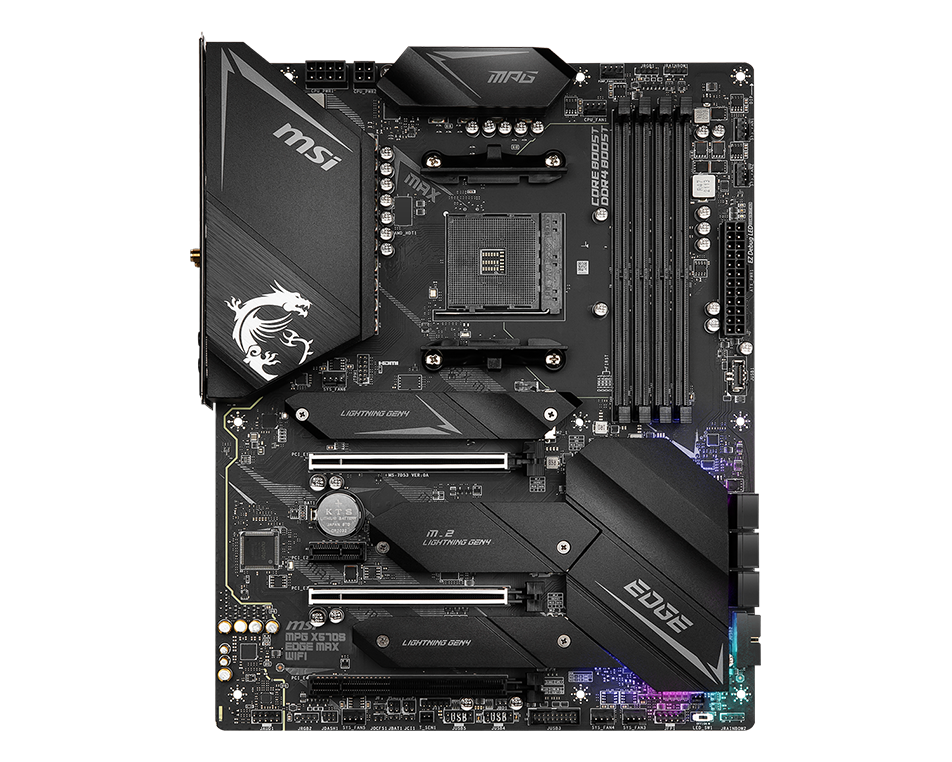

The MSI MPG X570S EDGE MAX WIFI is an AM4 ATX motherboard built on AMD's X570 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 3 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM4 · X570 chipset · AMD Ryzen 5000 / 3000 Series
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4-3600 to 5300 MT/s (OC)
  • Connectivity 2.5GbE LAN (Realtek RTL8125B) · Wi-Fi 6E · Bluetooth 5.2 · Realtek ALC4080 audio
  • Rear I/O 8 USB (1x USB-C 10Gbps, 2x USB-A 10Gbps, 4x USB-A 5Gbps, 1x USB 2.0) · 1x HDMI 2.1

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
X570
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 24 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset X570
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 5000 / 3000 Series
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4-3600 to 5300 MT/s (OC)
[ EXPANSION ] SPEC·03
M.2 Slots 3x M.2
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek RTL8125B
Wi-Fi Wi-Fi 6E
Bluetooth 5.2
Display Outputs 1x HDMI 2.1
Audio Realtek ALC4080
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part MPG X570S EDGE MAX WIFI
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
