ASUS board, 305 x 277 mm, 14 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited ASUS → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

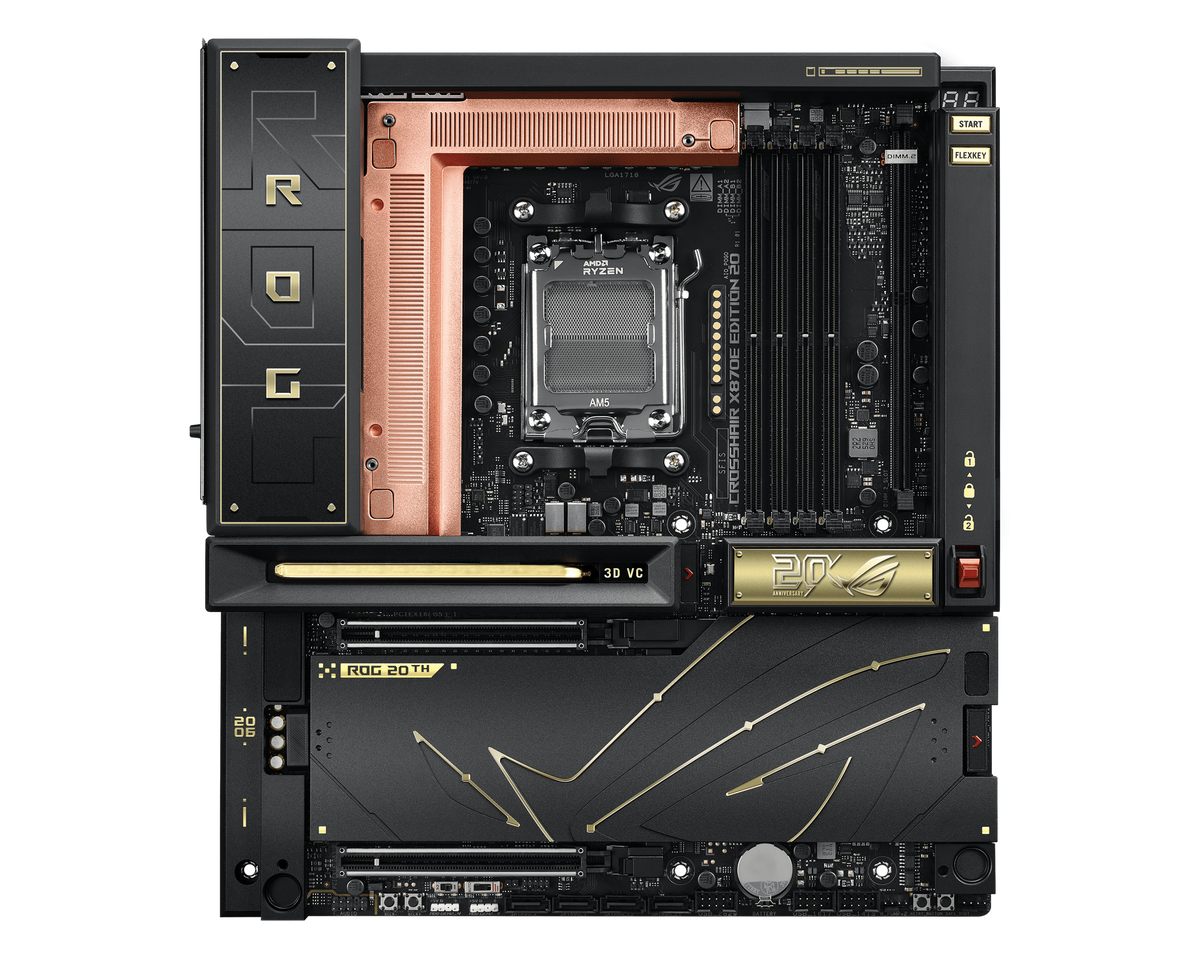

The ASUS ROG CROSSHAIR X870E EDITION 20 is an AM5 E-ATX motherboard built on AMD's X870E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 9 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform AM5 · X870E chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 9600 MT/s (OC)
  • Expansion 2x PCIe 5.0 x16 · 9x M.2 (2x PCIe 5.0, 3x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (Realtek 10GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC4082 audio
  • Rear I/O 14 USB (2x USB4 40Gbps, 12x USB 10Gbps) · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from ASUS, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X870E
CHIPSET
4 DIMM
MEMORY SLOTS
9 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X870E
CPU Platform AMD
Form Factor E-ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 9600 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe 5.0 x16
PCIe Gen 5.0
M.2 Slots 9x M.2 (2x PCIe 5.0, 3x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps
LAN Chip Realtek 10GbE
Wi-Fi Wi-Fi 7
Wireless Chip MediaTek MT7927
Bluetooth 5.4
Audio Realtek ALC4082
[ PHYSICAL ] SPEC·05
Dimensions 305 x 277 mm
Color Black
Brand ASUS
Condition NEW
MFR Part ROG CROSSHAIR X870E EDITION 20
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited ASUS → (opens in a new tab)
NIMBUS 1 Year →
