Gigabyte board, 305 x 285 mm, 12 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

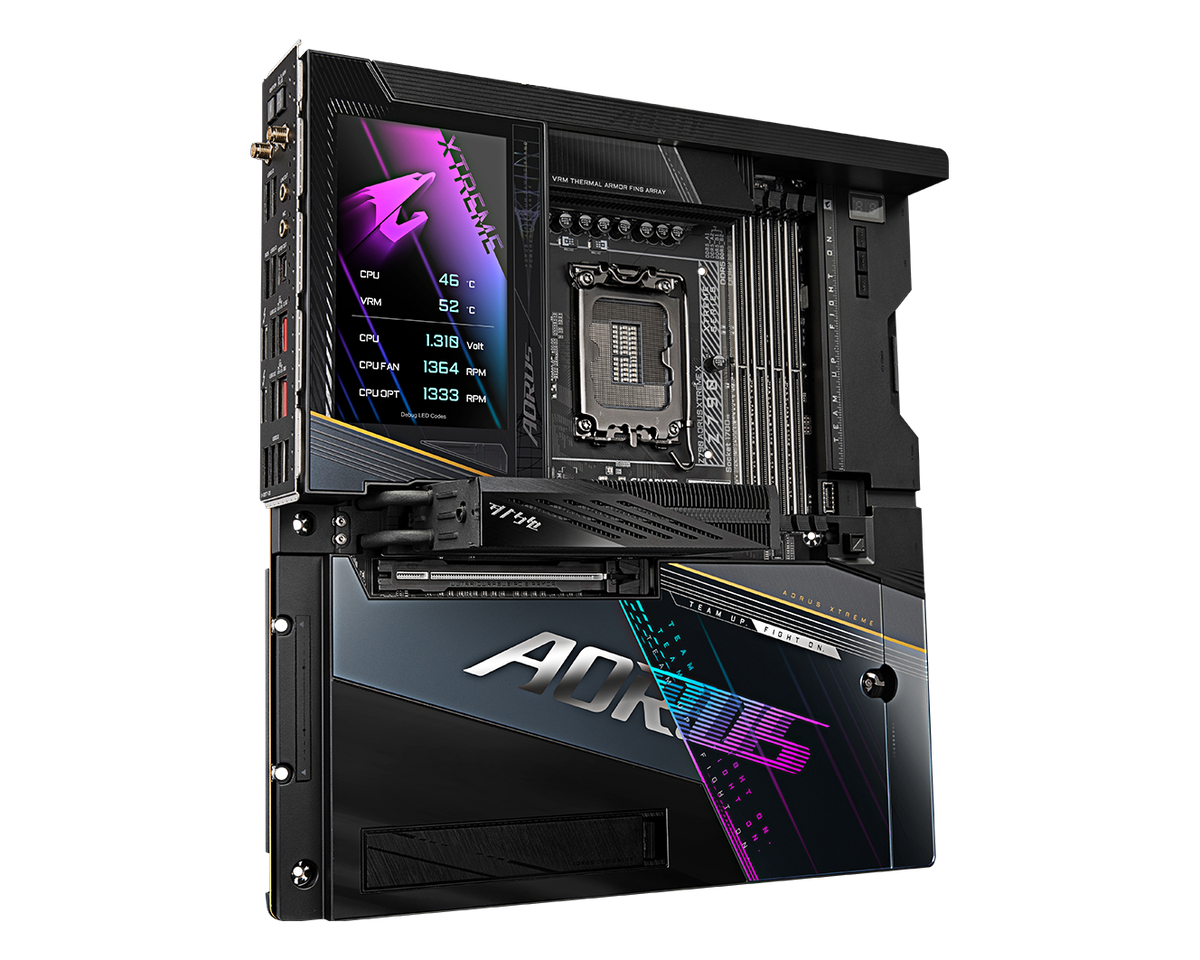

The Gigabyte Z790 AORUS XTREME X is an LGA1700 E-ATX motherboard built on Intel's Z790 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 5 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform LGA1700 · Z790 chipset · Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4000 to 4800 MT/s
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 · 5x M.2 (1x PCIe 5.0, 4x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (Marvell AQtion AQC107 10GbE + Intel 2.5GbE) · Wi-Fi 7 · Bluetooth 5.4 · ESS ES9280AC + ESS ES9080 audio
  • Rear I/O 12 USB (2x USB-C 10Gbps, 10x USB-A 10Gbps) · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
Z790
CHIPSET
4 DIMM
MEMORY SLOTS
5 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset Z790
CPU Platform Intel
Form Factor E-ATX
CPU Support Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4000 to 4800 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 3.0 x16
PCIe Gen 5.0
M.2 Slots 5x M.2 (1x PCIe 5.0, 4x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps, 2.5 Gbps
LAN Chip Marvell AQtion AQC107 10GbE + Intel 2.5GbE
Wi-Fi Wi-Fi 7
Wireless Chip Qualcomm QCNCM865
Bluetooth 5.4
Audio ESS ES9280AC + ESS ES9080
[ PHYSICAL ] SPEC·05
Dimensions 305 x 285 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part Z790 AORUS XTREME X
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
