MSI board, 244 x 244 mm, 8 rear USB ports. Supports Intel® Celeron®, Intel® Pentium® Gold.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

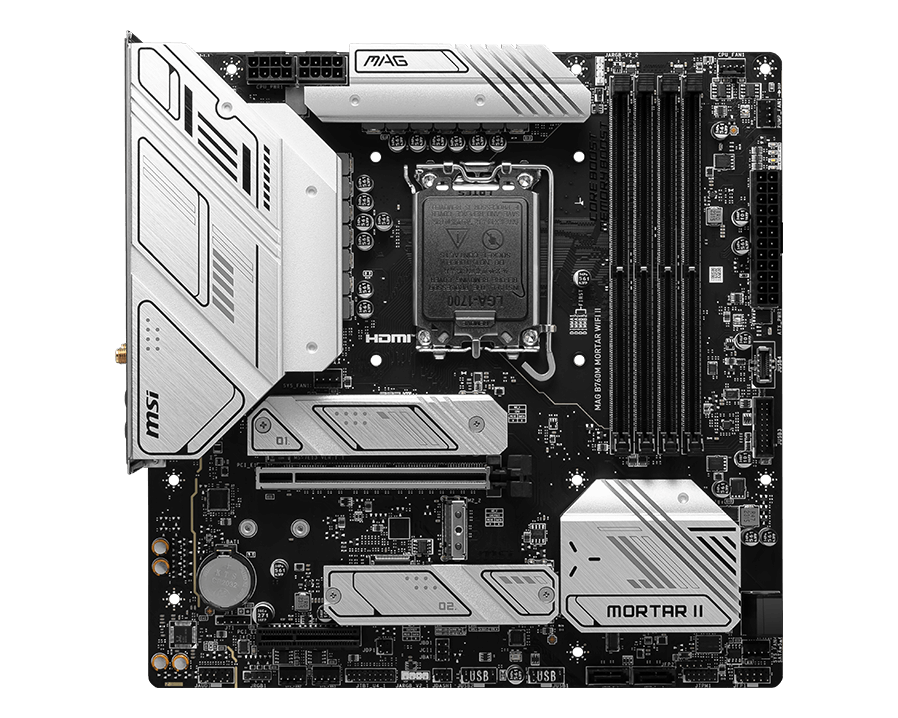

The MSI MAG B760M MORTAR WIFI II is an LGA1700 mATX motherboard built on Intel's B760 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform LGA1700 · B760 chipset · Intel® Celeron®, Intel® Pentium® Gold
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 7800 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 3.0 x4 · 3x M.2 (3x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC897 audio
  • Rear I/O 8 USB (1x USB-C 20Gbps, 3x USB-A 10Gbps, 4x USB 2.0) · 1x HDMI, 1x DisplayPort

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
B760
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 28 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset B760
CPU Platform Intel
Form Factor mATX
CPU Support Intel® Celeron®, Intel® Pentium® Gold
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 7800 MT/s (OC)
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 3.0 x4
PCIe Gen 5.0
M.2 Slots 3x M.2 (3x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part MAG B760M MORTAR WIFI II
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
