MSI board, 244 x 244 mm, 7 rear USB ports. Supports AMD Ryzen 5000 / 3000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

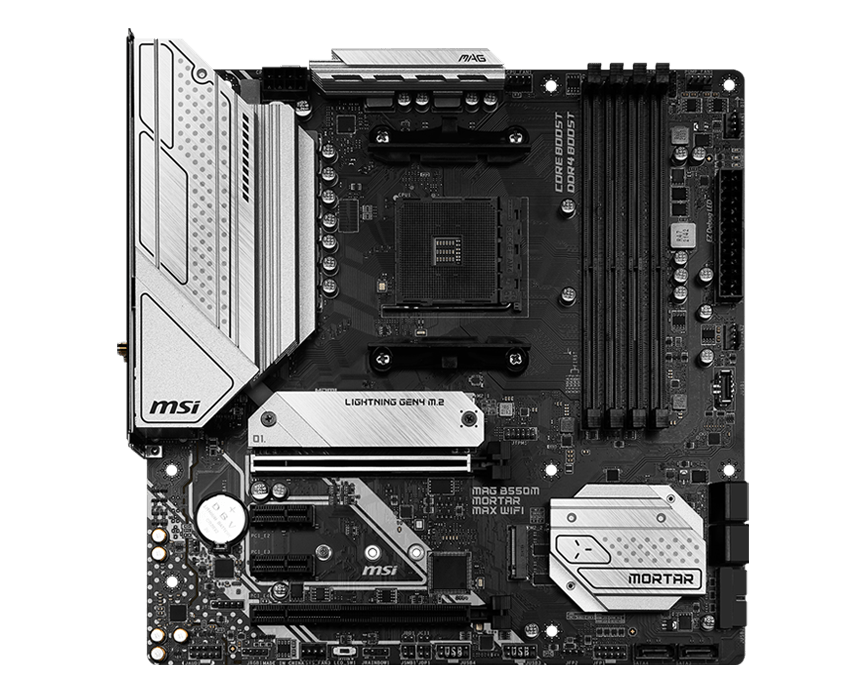

The MSI MAG B550M MORTAR MAX WIFI is an AM4 mATX motherboard built on AMD's B550 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM4 · B550 chipset · AMD Ryzen 5000 / 3000 Series
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4-2133 to 4400 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 · 2x M.2 · 6x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek RTL8125B) · Wi-Fi 6E · Bluetooth 5.2 · Realtek ALC1220P audio
  • Rear I/O 7 USB (1x USB-C 10Gbps, 2x USB-A 10Gbps, 2x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI 2.1, 1x DisplayPort

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 26 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 5000 / 3000 Series
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4-2133 to 4400 MT/s (OC)
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 2x M.2
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek RTL8125B
Wi-Fi Wi-Fi 6E
Bluetooth 5.2
Display Outputs 1x HDMI 2.1, 1x DisplayPort
Audio Realtek ALC1220P
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part MAG B550M MORTAR MAX WIFI
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
