Gigabyte unit, triple-fan cooling, 2.7-slot, 288 mm long. Rated 304 W; Gigabyte recommends an 850 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

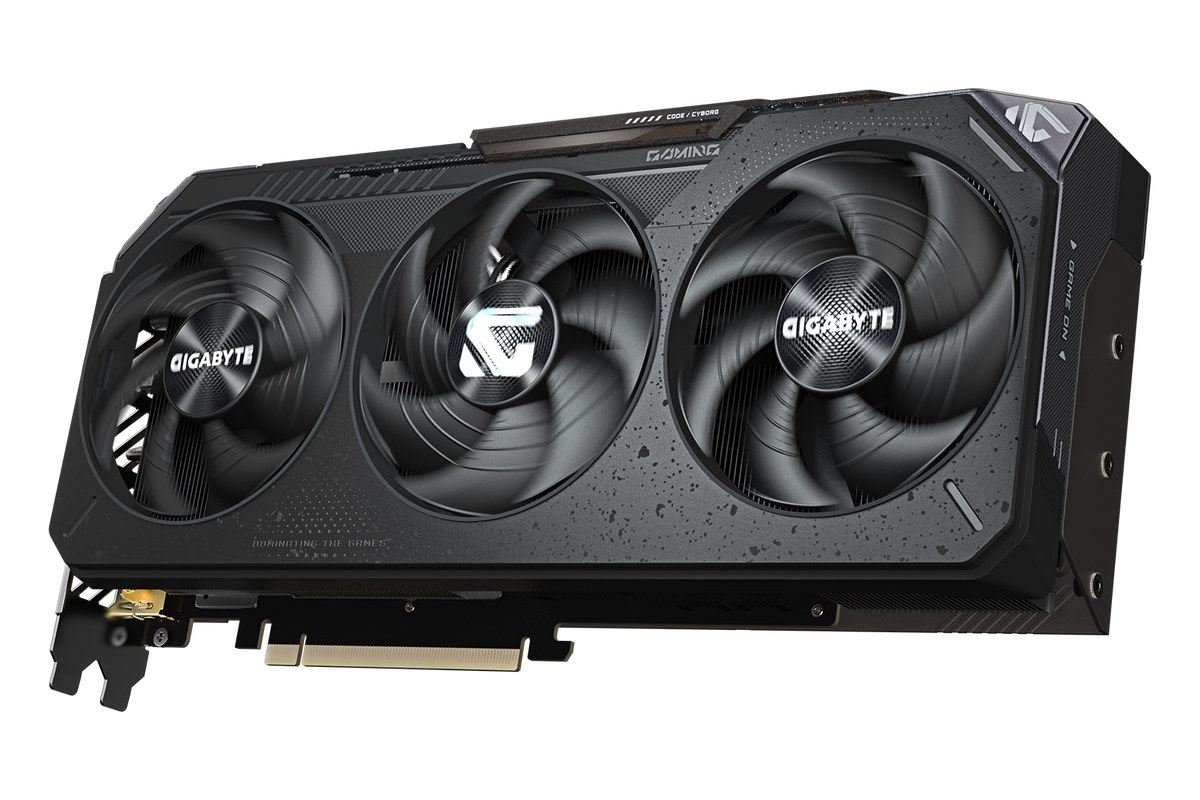

The Gigabyte GAMING RX 9070 XT OC is a 16 GB GDDR6 graphics card built on AMD's RX 9070 XT with 4,096 stream processors, a 3060 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR6 · 256-bit bus · 20 Gbps · 640 GB/s bandwidth
  • Cores 4,096 stream processors · DirectX 12.0 · OpenGL 4.6
  • Boost 3060 MHz boost · 2520 MHz game
  • Interface PCIe 5.0 x16 · 2x HDMI 2.1b, 2x DisplayPort 2.1a · up to 4 displays at 7680 x 4320
  • Power 304 W board power · 3x 8-pin · 850 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
3060 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
4096
STREAM PROCESSORS
304 W
BOARD POWER
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 9000
Stream Processors 4096
Boost Clock 3060 MHz
Game Clock 2520 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 640 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 304 W
Min PSU 850 W
Power Connectors 3x 8-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1b, 2x DisplayPort 2.1a
Max Resolution 7680 x 4320
Max Monitors 4
DisplayPort 2.1a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 288 mm
Slot Width 2.7-slot
Form Factor Full-Height/Full-Length
Dimensions 288 x 132 x 56 mm
[ FEATURES / API ] SPEC·06
DirectX 12.0
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
