Gigabyte unit, triple-fan cooling, 2.7-slot, 330 mm long. Rated 300 W; Gigabyte recommends a 750 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

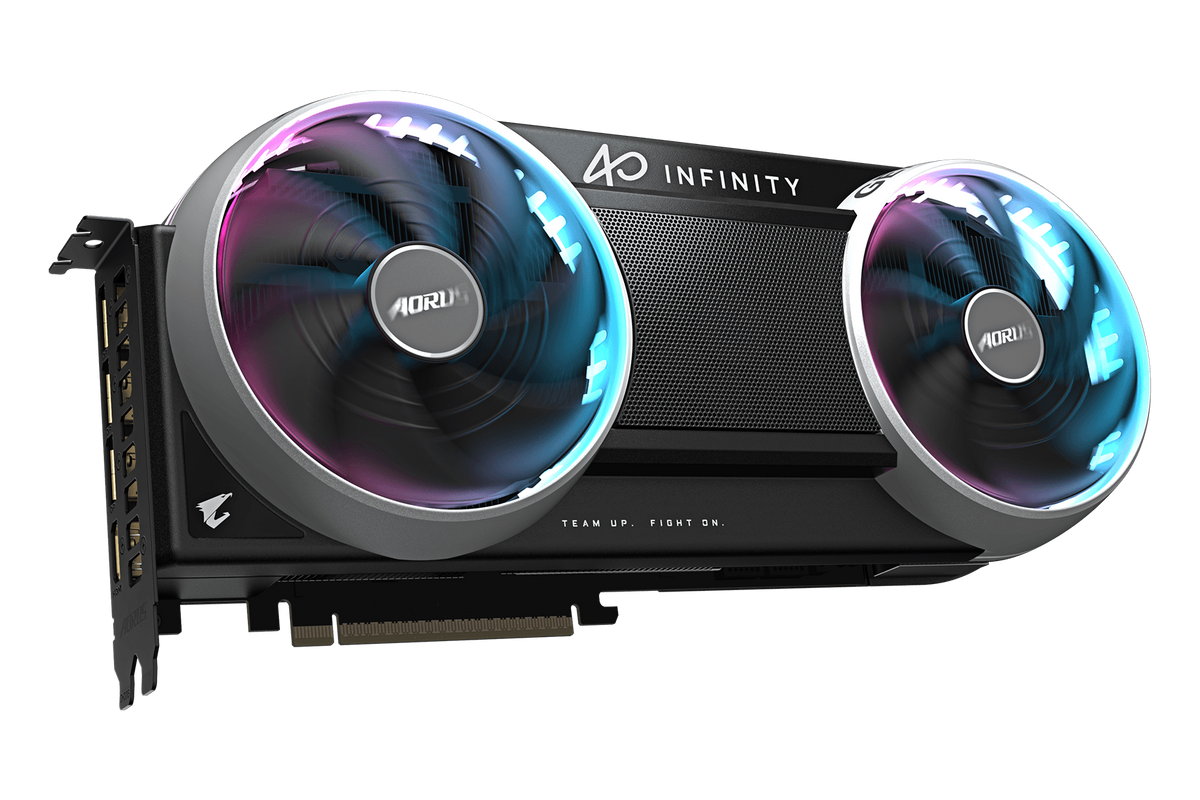

The Gigabyte AORUS INFINITY RTX 5070 Ti is a 16 GB GDDR7 graphics card built on NVIDIA's RTX 5070 Ti with 8,960 CUDA cores, a 2670 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR7 · 256-bit bus · 28 Gbps · 896 GB/s bandwidth
  • Cores 8,960 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2670 MHz boost · 2300 MHz base
  • Interface PCIe 5.0 x16 · 1x HDMI 2.1b, 3x DisplayPort 2.1b · up to 4 displays at 7680 x 4320
  • Power 300 W board power · 1x 16-pin · 750 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2670 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
8960
CUDA CORES
300 W
BOARD POWER
[ PARAMETER TABLE ] // 29 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 5000
Process Node TSMC 4N
CUDA Cores 8960
Boost Clock 2670 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR7
Memory Bus 256-bit
Memory Bandwidth 896 GB/s
Memory Clock 28000 MHz (28 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 300 W
Min PSU 750 W
Power Connectors 1x 16-pin
Cooling Triple Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1b, 3x DisplayPort 2.1b
Max Resolution 7680 x 4320
Max Monitors 4
DisplayPort 2.1b
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 330 mm
Slot Width 2.7-slot
Form Factor Full-Height/Full-Length
Dimensions 330 x 145 x 65 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
