[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2584 MHz
BOOST CLOCK
12GB
VIDEO MEMORY
3456
SHADER CORES
240W
TOTAL BOARD PWR
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 7000
Process Node 5nm
Shader Cores 3456
Compute Units 54
Ray Accelerators 54
Infinity Cache 48MB
Boost Clock 2584 MHz
Game Clock 2226 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12GB
Memory Type GDDR6
Memory Bus 192-bit
Memory Speed 18 Gbps
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 240W
Min PSU 700W
Power Connectors 2x 8-pin
Cooling Tri-X, 3 fans
[ DISPLAY & OUTPUTS ] SPEC·04

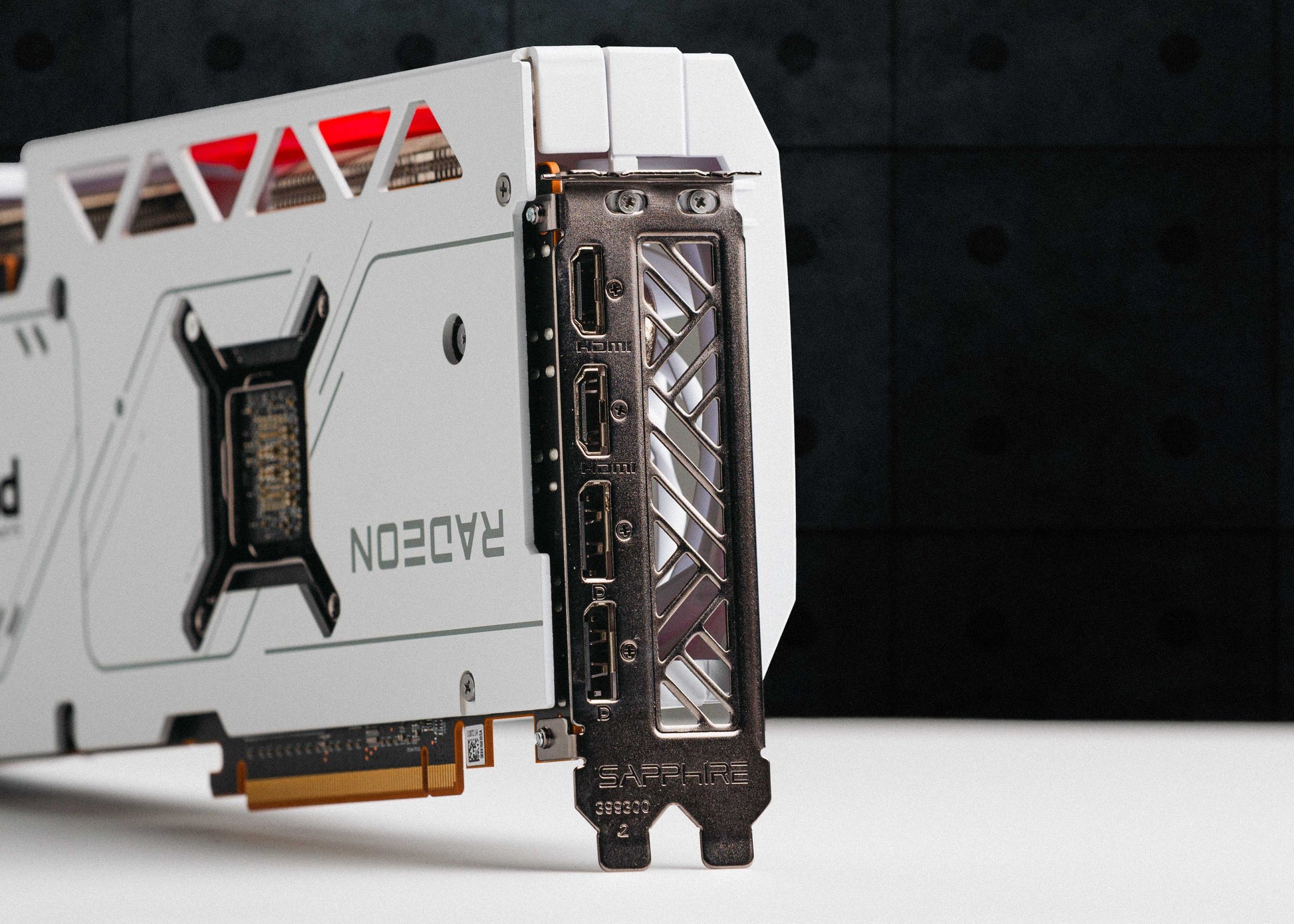

Outputs 2x HDMI, 2x DisplayPort
Max Resolution 7680x4320
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 320mm
Slot Width 2.5
Form Factor 2.5 slot, ATX
Dimensions 320 x 128.75 x 52.57 mm
[ FEATURES / API ] SPEC·06
DirectX DirectX 12 Ultimate
Vulkan Yes
FreeSync Yes
