[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2647 MHz
BOOST CLOCK
16GB
VIDEO MEMORY
4608
SHADER CORES
180W
TOTAL BOARD PWR
[ PARAMETER TABLE ] // 27 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 5000
Process Node 4nm
Shader Cores 4608
CUDA Cores 4608
RT Cores 36
Tensor Cores 144
Boost Clock 2647 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16GB
Memory Type GDDR7
Memory Bus 128-bit
Memory Speed 28 Gbps
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 180W
Min PSU 650W
Power Connectors 1x 8-pin
Cooling WINDFORCE, 3 fans
[ DISPLAY & OUTPUTS ] SPEC·04

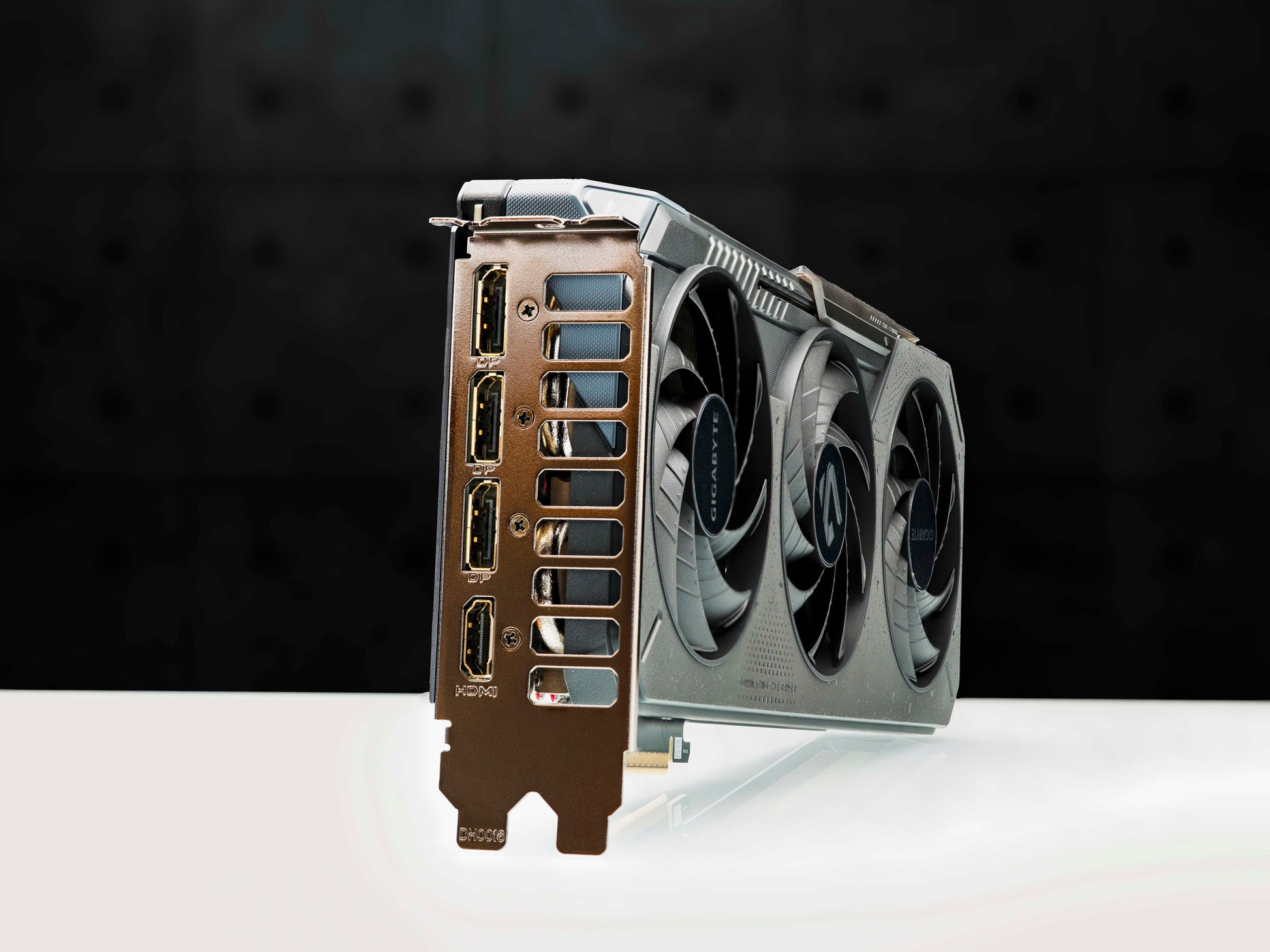

Outputs 1x HDMI, 3x DisplayPort
Max Resolution 7680x4320
DisplayPort 2.1b
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x8
Length 281mm
Slot Width 2
Form Factor 2 slot, ATX
Dimensions 281 x 119 x 40 mm
[ FEATURES / API ] SPEC·06
DirectX DirectX 12 Ultimate
Vulkan Yes
FreeSync G-SYNC Compatible
