PowerColor unit, 3.5-slot, 340 mm long. Rated 220 W; PowerColor recommends an 800 W supply.

MFR WARRANTY
Manufacturer terms apply
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

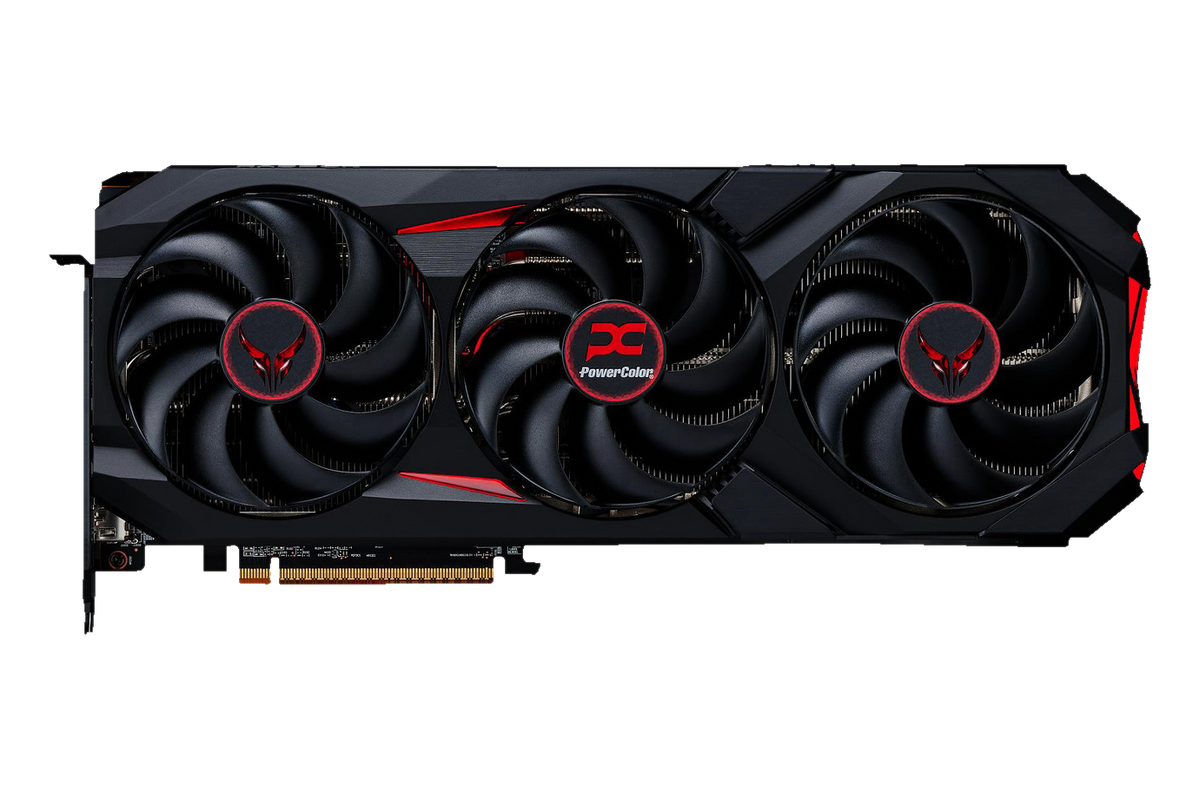

The PowerColor RED DEVIL RX 9070 is a 16 GB GDDR6 graphics card built on AMD's RX 9070 with 3,584 stream processors, a 2650 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR6 · 256-bit bus · 20 Gbps · 640 GB/s bandwidth
  • Cores 3,584 stream processors · OpenGL 4.6
  • Boost 2650 MHz boost · 2170 MHz game
  • Interface PCIe 5.0 x16 · 1x HDMI 2.1b, 3x DisplayPort 2.1a at 7680×4320
  • Power 220 W board power · 2x 8-pin · 800 W recommended PSU

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2650 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
3584
STREAM PROCESSORS
220 W
BOARD POWER
[ PARAMETER TABLE ] // 22 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 9000
Stream Processors 3584
Boost Clock 2650 MHz
Game Clock 2170 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 640 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 220 W
Min PSU 800 W
Power Connectors 2x 8-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1b, 3x DisplayPort 2.1a
Max Resolution 7680×4320
DisplayPort 2.1a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 340 mm
Slot Width 3.5-slot
Dimensions 340 x 132 x 69 mm
[ FEATURES / API ] SPEC·06
OpenGL 4.6
[ SUPPORT ] SPEC·07
NIMBUS 1 Year →
