PowerColor unit, 2.5-slot, 290 mm long. Rated 245 W; PowerColor recommends a 750 W supply.
- MFR WARRANTY
- 2 Years POWERCOLOR → (opens in a new tab)
- NIMBUS COVERAGE
- 1 Year →
- SHIPS FROM
- Low Earth Orbit
- FREIGHT
- Free · contiguous USA

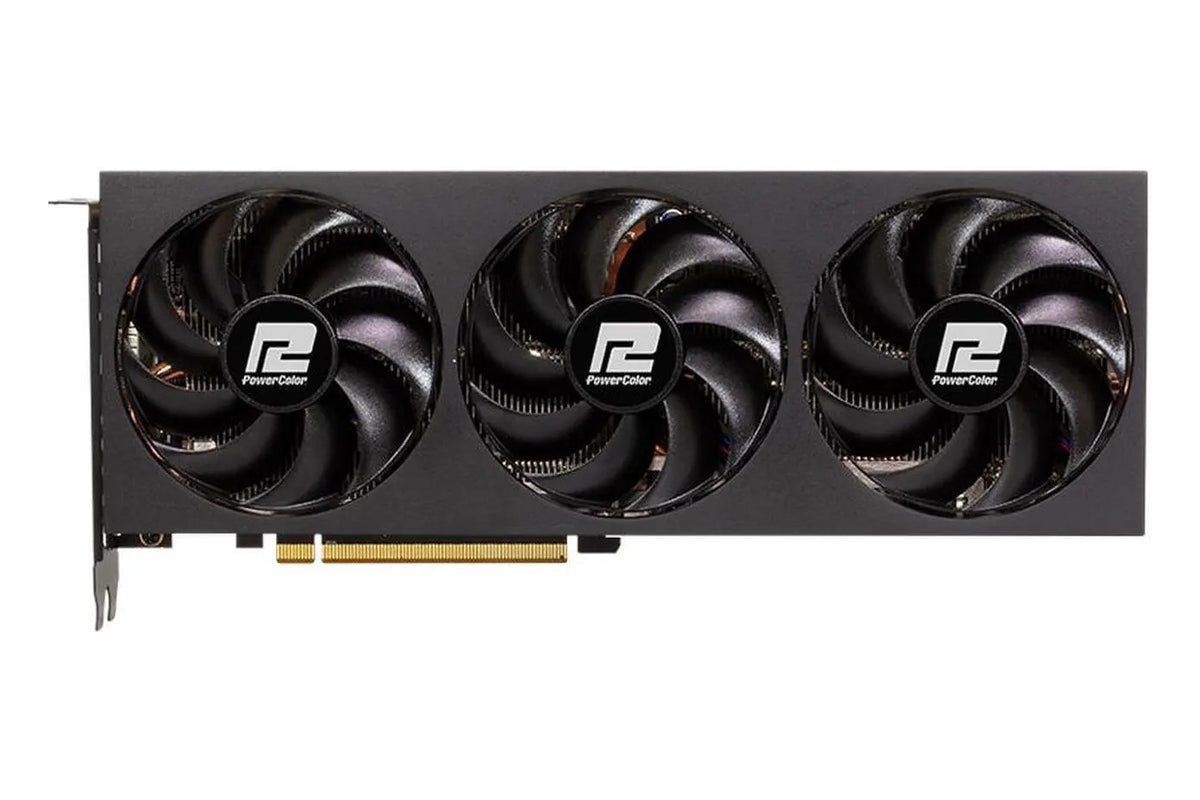

The PowerColor FIGHTER RX 7700 XT is a 12 GB GDDR6 graphics card built on AMD's RX 7700 XT with 3,456 stream processors, a 2584 MHz boost clock and 4 display outputs over PCIe 4.0.
- Memory 12 GB GDDR6 · 192-bit bus · 18 Gbps · 432 GB/s bandwidth
- Cores 3,456 stream processors · OpenGL 4.6
- Boost 2584 MHz boost · 2226 MHz game
- Power 245 W board power · 2x 8-pin · 750 W recommended PSU
Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.
[ SPEC MANIFEST ]
[ CORE TELEMETRY ]
LIVE FEED
2584 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
3456
STREAM PROCESSORS
245 W
BOARD POWER
[ PARAMETER TABLE ]
// 21 PARAMETERS
[ CORE ARCHITECTURE ]
SPEC·01
GPU Vendor
AMD
Stream Processors
3456
Boost Clock
2584 MHz
Game Clock
2226 MHz
[ MEMORY ]
SPEC·02
Memory (VRAM)
12 GB
Memory Type
GDDR6
Memory Bus
192-bit
Memory Bandwidth
432 GB/s
Memory Clock
18000 MHz (18 Gbps effective)
[ THERMAL & POWER ]
SPEC·03
Board Power (TDP)
245 W
Min PSU
750 W
Power Connectors
2x 8-pin
[ DISPLAY & OUTPUTS ]
SPEC·04
Outputs
1x HDMI 2.1, 3x DisplayPort 2.1
Max Resolution
7680×4320
DisplayPort
2.1
[ INTERFACE & FORM ]
SPEC·05
Length
290 mm
Slot Width
2.5-slot
Dimensions
290 x 111 x 50 mm
[ FEATURES / API ]
SPEC·06
OpenGL
4.6
