[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2565 MHz
BOOST CLOCK
16GB
VIDEO MEMORY
3840
SHADER CORES
288W
TOTAL BOARD PWR
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 7000
Process Node 5nm
Shader Cores 3840
Compute Units 60
Ray Accelerators 60
Infinity Cache 64MB
Boost Clock 2565 MHz
Game Clock 2254 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Speed 19.5 Gbps
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 288W
Min PSU 700W

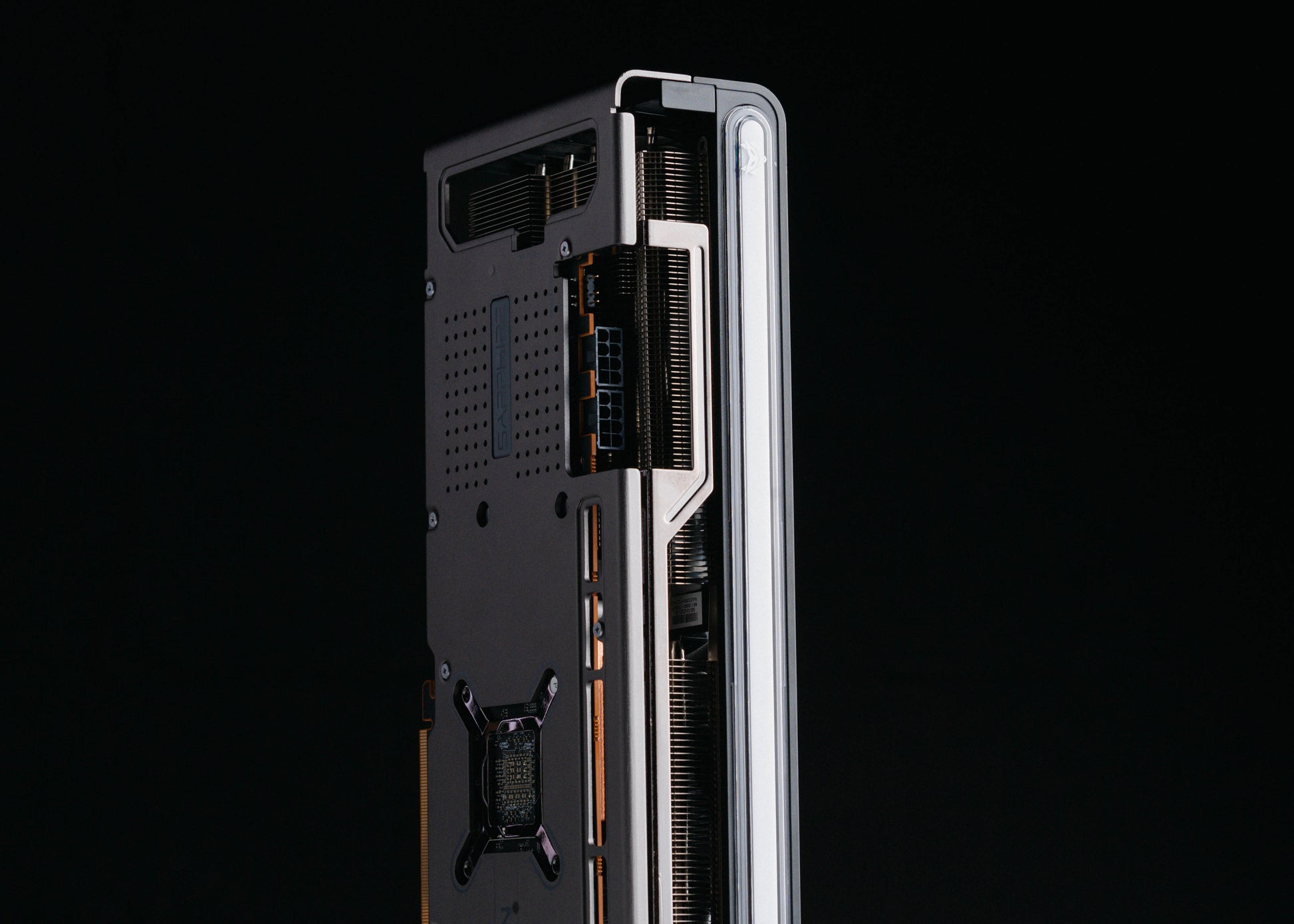

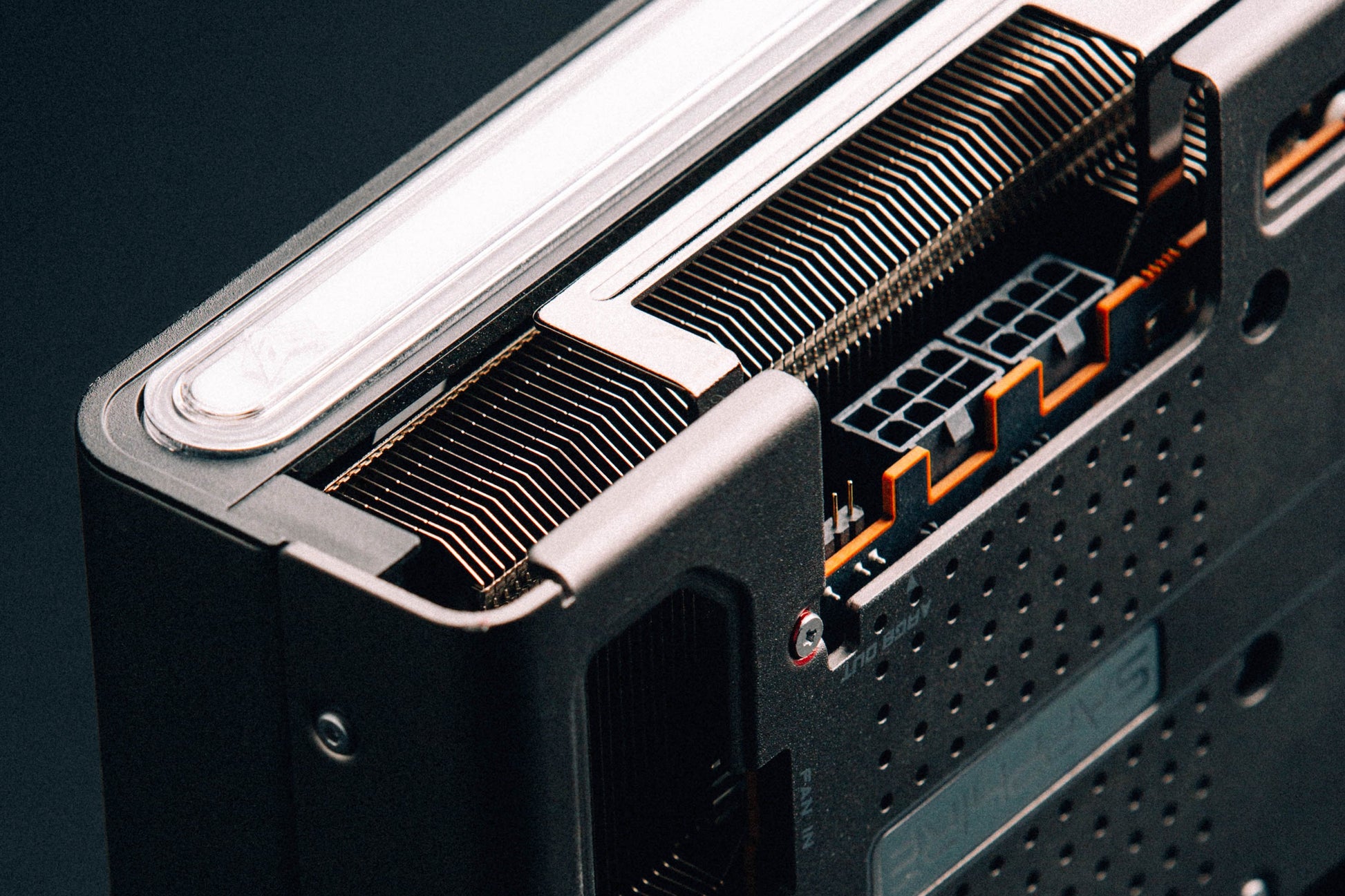

Power Connectors 2x 8-pin

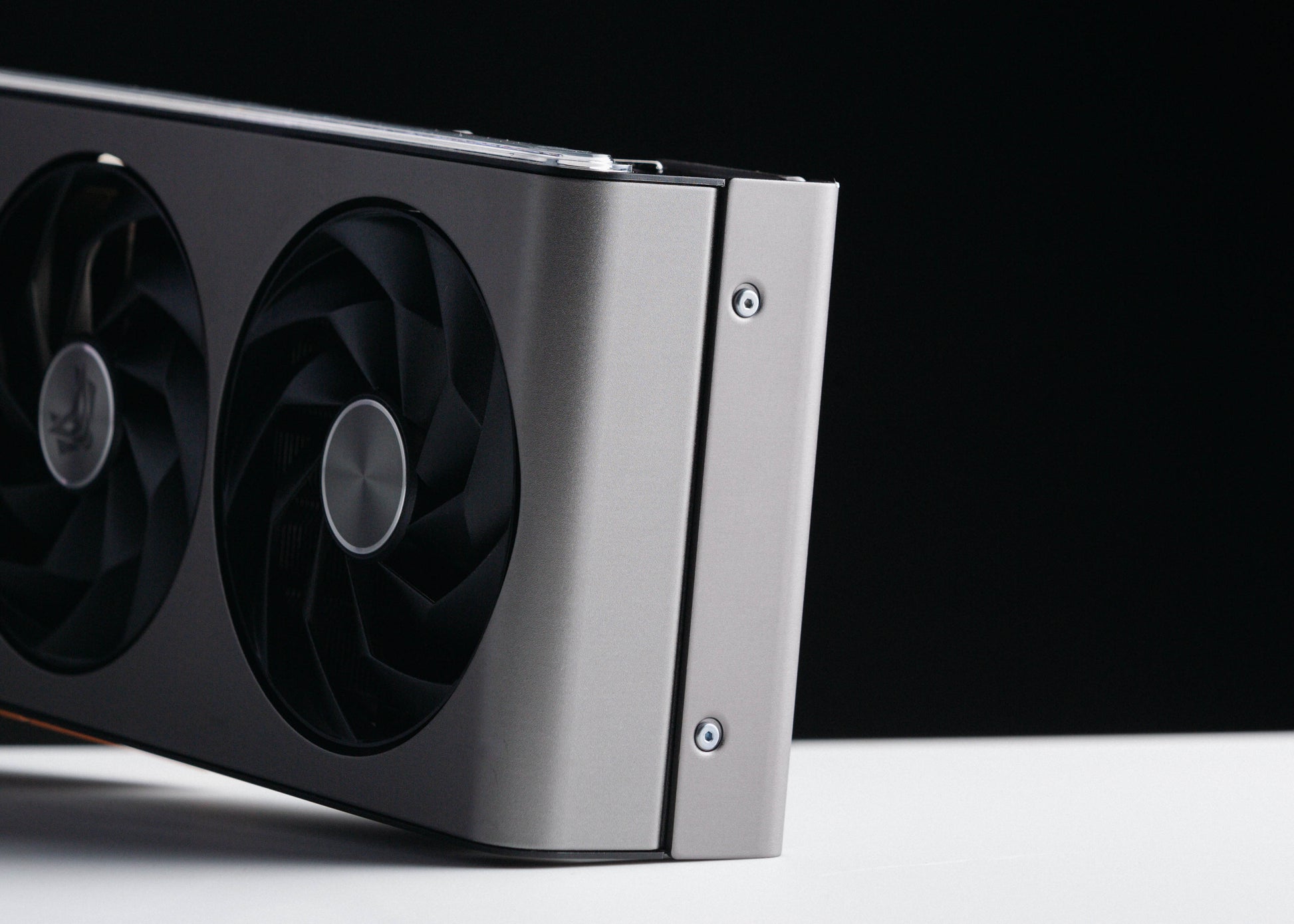

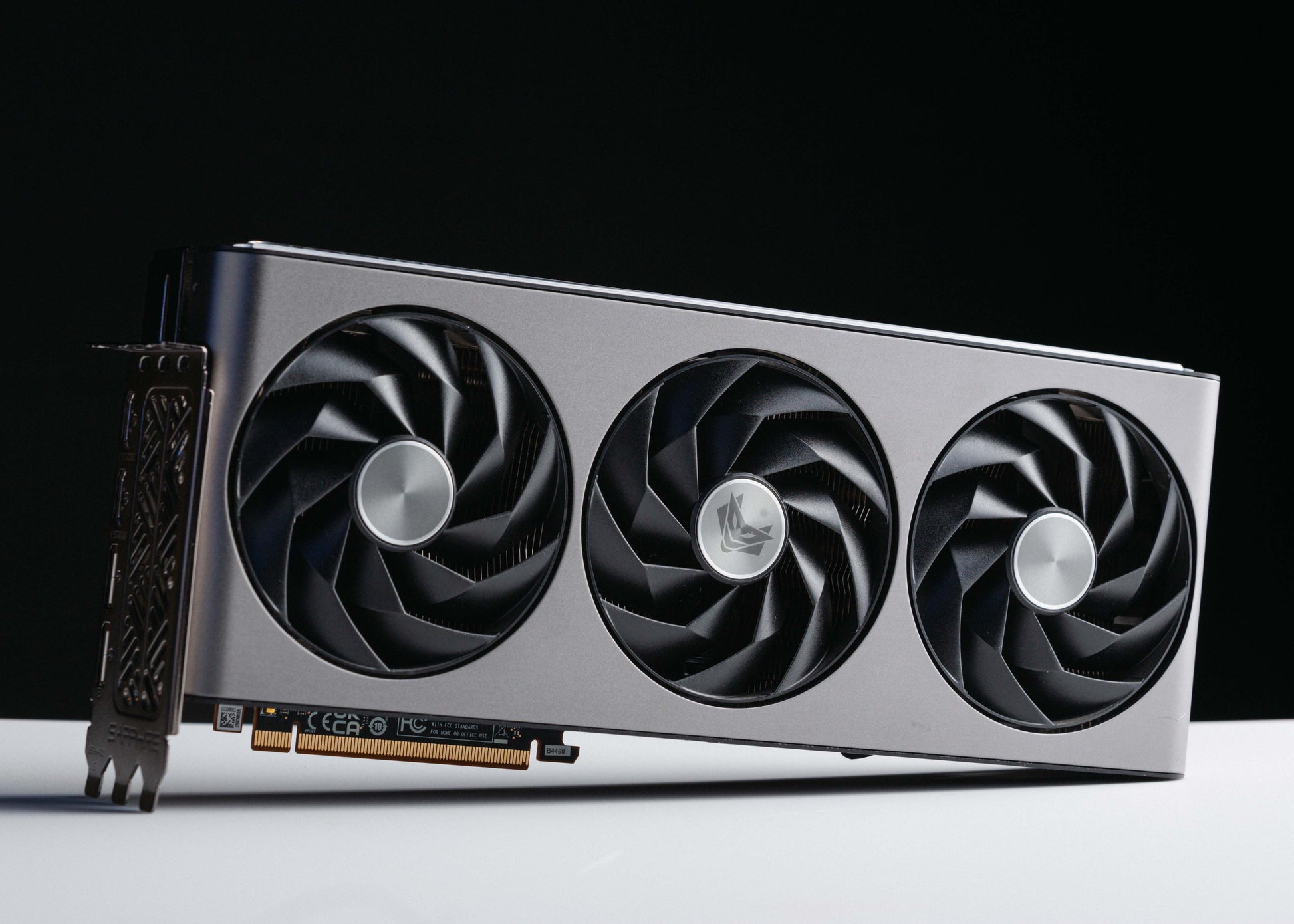

Cooling Tri-X, 3 fans
[ DISPLAY & OUTPUTS ] SPEC·04

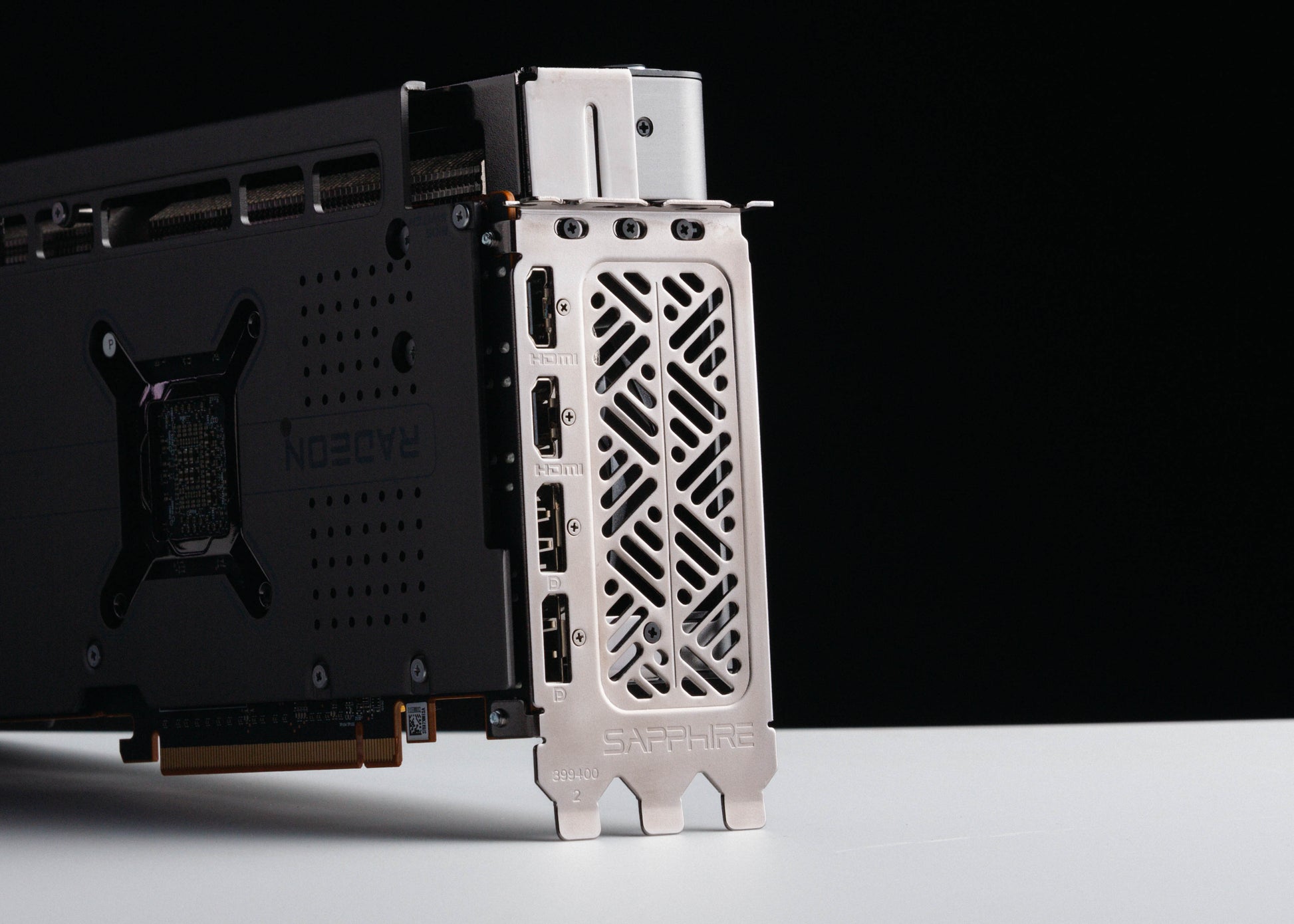

Outputs 2x HDMI, 2x DisplayPort
Max Resolution 7680x4320
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 320mm
Slot Width 3
Form Factor 3 slot, ATX
Dimensions 320 x 134.85 x 61.57 mm
[ FEATURES / API ] SPEC·06
DirectX DirectX 12 Ultimate
Vulkan Yes
FreeSync Yes
