MSI unit, dual-fan cooling, 2-slot, 238 mm long. Rated 132 W; MSI recommends a 500 W supply.

MFR WARRANTY
3 Years Limited MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

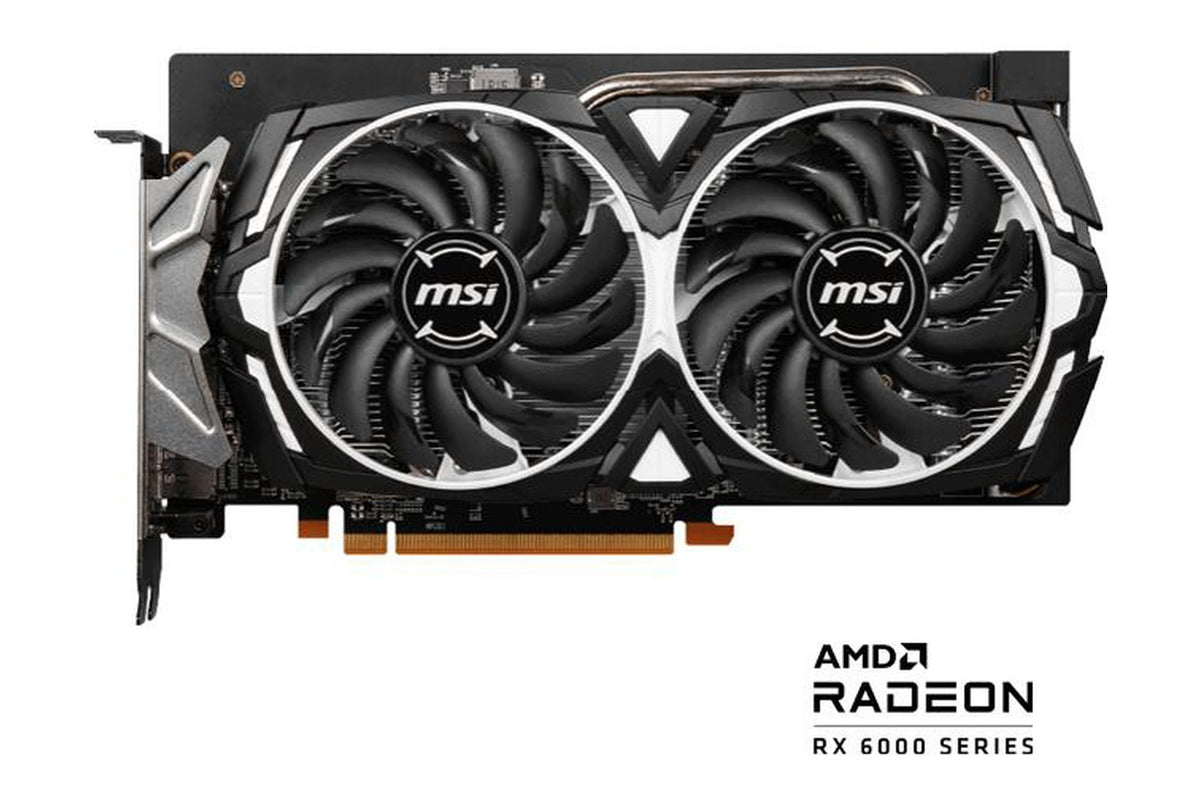

The MSI RX 6600 is an 8 GB GDDR6 graphics card built on AMD's RX 6600 with 1,792 stream processors, a 2491 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 8 GB GDDR6 · 128-bit bus · 14 Gbps · 224 GB/s bandwidth
  • Cores 1,792 stream processors · DirectX 12.0 · OpenGL 4.6
  • Boost 2491 MHz boost · 2044 MHz game
  • Interface PCIe 4.0 x8 · 1x HDMI 2.1, 3x DisplayPort 1.4 · up to 4 displays at 7680×4320
  • Power 132 W board power · 1x 8-pin · 500 W recommended PSU

3 Years Limited manufacturer warranty from MSI, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2491 MHz
BOOST CLOCK
8 GB
VIDEO MEMORY
1792
STREAM PROCESSORS
132 W
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Stream Processors 1792
Boost Clock 2491 MHz
Game Clock 2044 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 8 GB
Memory Type GDDR6
Memory Bus 128-bit
Memory Bandwidth 224 GB/s
Memory Clock 14000 MHz (14 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 132 W
Min PSU 500 W
Power Connectors 1x 8-pin
Cooling Dual Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 3x DisplayPort 1.4
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x8
Length 238 mm
Slot Width 2-slot
Dimensions 238 x 128 x 39 mm
[ FEATURES / API ] SPEC·06
DirectX 12.0
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited MSI → (opens in a new tab)
NIMBUS 1 Year →
