MSI unit, dual-fan cooling, 2-slot, 276 mm long. Rated 170 W; MSI recommends a 550 W supply.

MFR WARRANTY
3 Years Limited MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

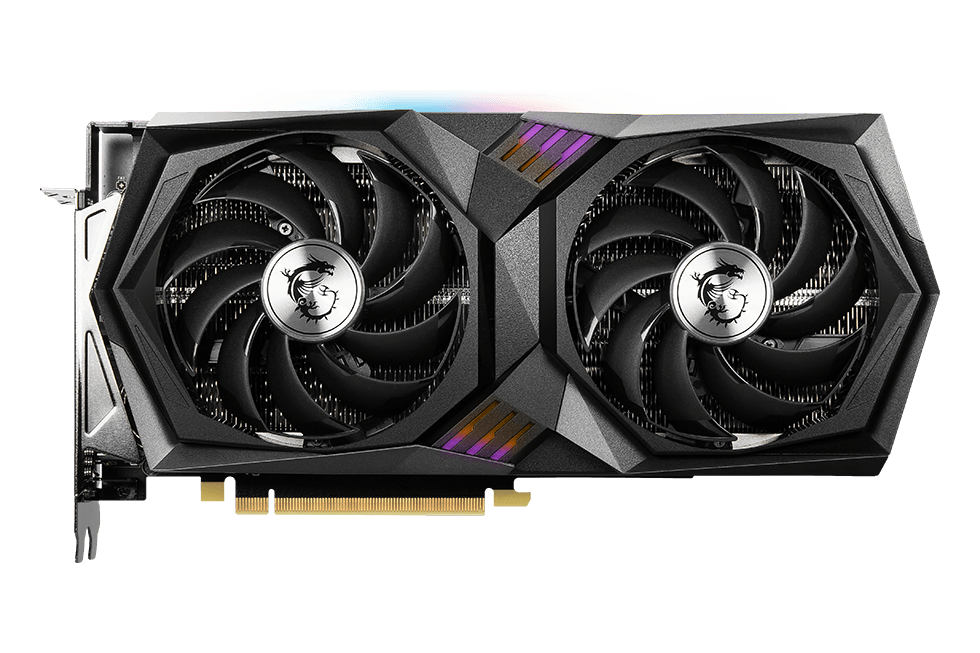

The MSI GAMING RTX 3060 is a 12 GB GDDR6 graphics card built on NVIDIA's RTX 3060 with 3,584 CUDA cores, a 1777 MHz boost clock and 4 display outputs over PCIe 4.0.

  • Memory 12 GB GDDR6 · 192-bit bus · 15 Gbps · 360 GB/s bandwidth
  • Cores 3,584 CUDA cores · DirectX 12.0 · OpenGL 4.6
  • Boost 1777 MHz boost
  • Interface PCIe 4.0 x16 · 1x HDMI, 3x DisplayPort 1.4a · up to 4 displays at 7680×4320
  • Power 170 W board power · 1x 8-pin, 1x 6-pin · 550 W recommended PSU

3 Years Limited manufacturer warranty from MSI, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
1777 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
3584
CUDA CORES
170 W
BOARD POWER
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 3000
CUDA Cores 3584
Boost Clock 1777 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12 GB
Memory Type GDDR6
Memory Bus 192-bit
Memory Bandwidth 360 GB/s
Memory Clock 15000 MHz (15 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 170 W
Min PSU 550 W
Power Connectors 1x 8-pin, 1x 6-pin
Cooling Dual Fan
Lighting RGB
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI, 3x DisplayPort 1.4a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 1.4a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 4.0 x16
Length 276 mm
Slot Width 2-slot
Form Factor Full-Height/Full-Length
Dimensions 276 x 131 x 51 mm
[ FEATURES / API ] SPEC·06
DirectX 12.0
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited MSI → (opens in a new tab)
NIMBUS 1 Year →
