MSI board, 244 x 244 mm, 8 rear USB ports.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

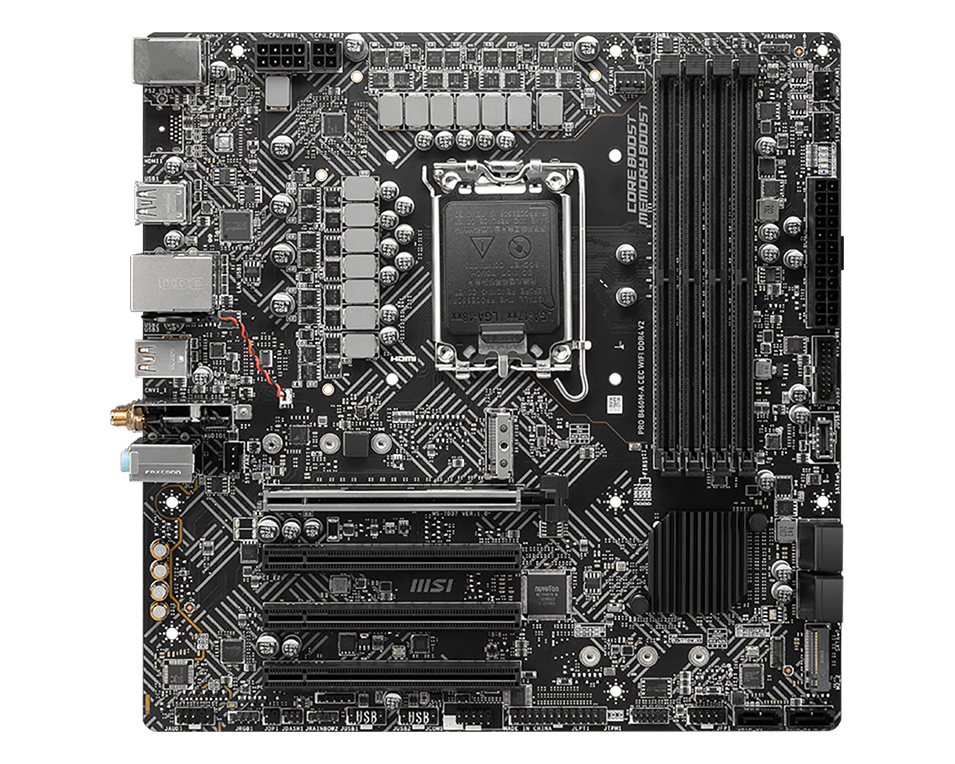

The MSI PRO B660M-A CEC WIFI DDR4 V2 is an LGA1700 mATX motherboard built on Intel's B660 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform LGA1700 · B660 chipset
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4 up to 5200 MT/s
  • Expansion 1x PCIe 4.0 x16, 3x PCIe 3.0 x1 · 2x M.2 (2x PCIe 4.0) · 6x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 8125BG 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC897 audio
  • Rear I/O 8 USB (1x USB-A 10Gbps, 1x USB-C 10Gbps, 4x USB-A 5Gbps, 2x USB 2.0)

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
B660
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 26 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset B660
CPU Platform Intel
Form Factor mATX
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4 up to 5200 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 3x PCIe 3.0 x1
PCIe Gen 4.0
M.2 Slots 2x M.2 (2x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 8125BG 2.5GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Brand MSI
Condition NEW
MFR Part PRO B660M-A CEC WIFI DDR4 V2
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
