[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Gigabyte board, 305 x 269 mm, 10 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

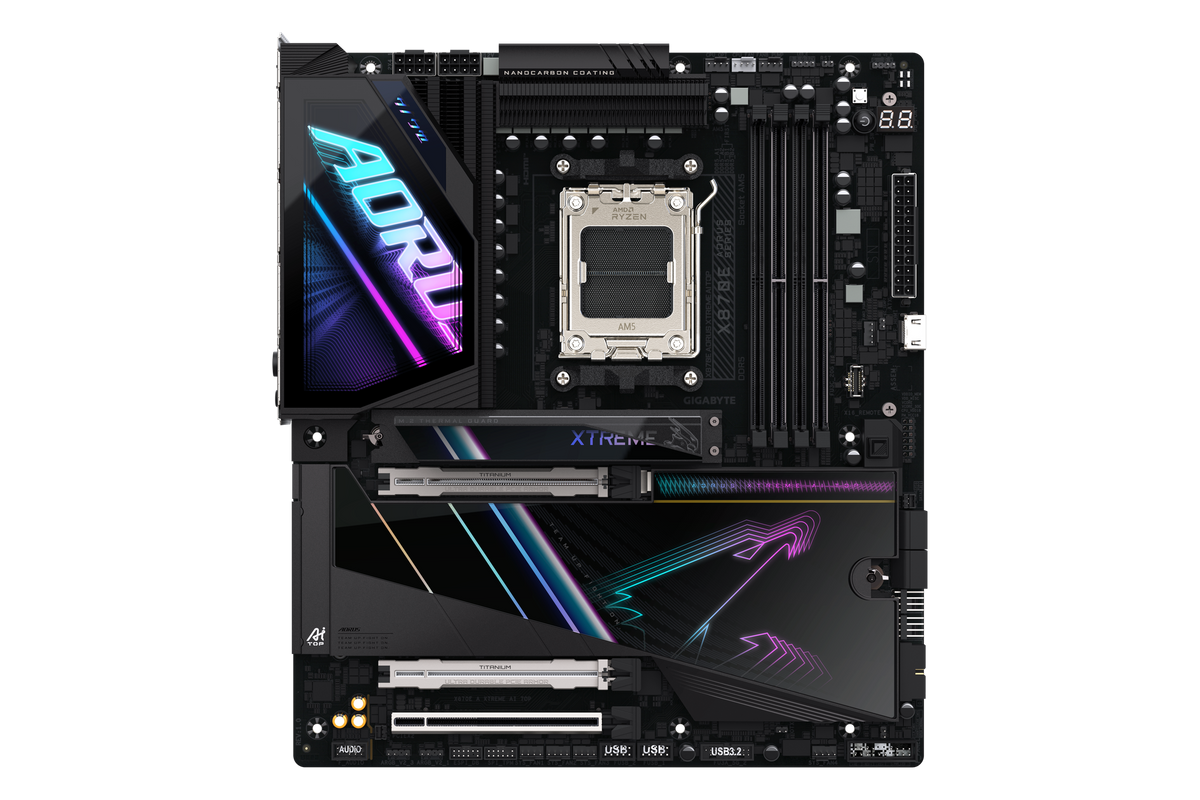

The Gigabyte X870E AORUS XTREME AI TOP is an AM5 E-ATX motherboard built on AMD's X870E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 4 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform AM5 · X870E chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4800 to 5200 MT/s
  • Expansion 2x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (2 x Marvell AQtion AQC113C 10GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC1220 audio
  • Rear I/O 10 USB (2x USB4 Type-C, 6x USB-A 10Gbps, 2x USB 2.0) · 1x HDMI, 2x USB4 Type-C (DisplayPort) · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X870E
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X870E
CPU Platform AMD
Form Factor E-ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4800 to 5200 MT/s
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps
LAN Chip 2 x Marvell AQtion AQC113C 10GbE
Wi-Fi Wi-Fi 7
Wireless Chip Qualcomm QCNCM865 (PCB rev. 1.0)
Bluetooth 5.4
Display Outputs 1x HDMI, 2x USB4 Type-C (DisplayPort)
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 269 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part X870E AORUS XTREME AI TOP
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
