MSI board, 244 x 244 mm, 6 rear USB ports. Supports AMD Ryzen 5000 / 3000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

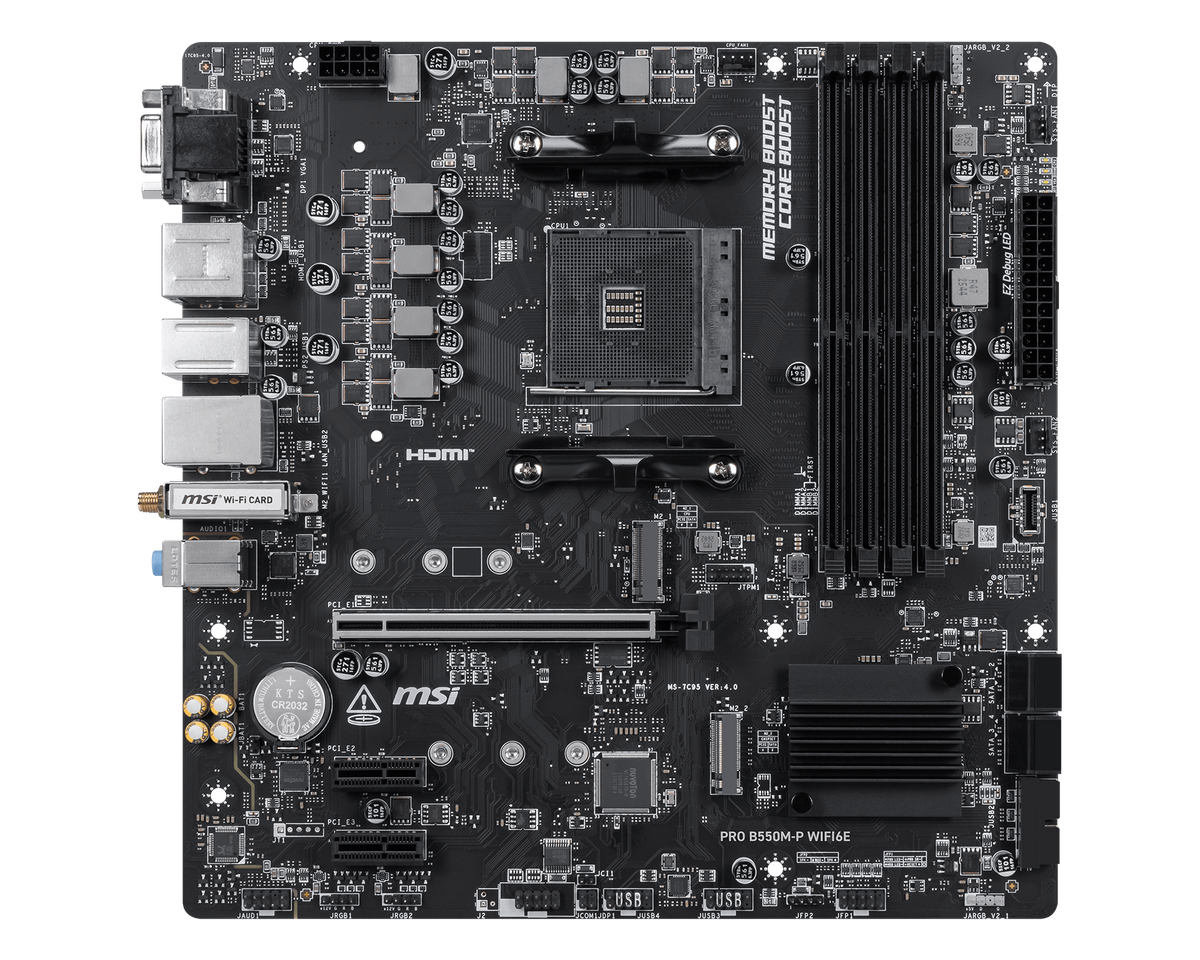

The MSI PRO B550M-P WIFI6E is an AM4 mATX motherboard built on AMD's B550 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 2 M.2 slots, 1GbE LAN and Wi-Fi 6E.

  • Platform AM4 · B550 chipset · AMD Ryzen 5000 / 3000 Series
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4 up to 4400 MT/s
  • Expansion 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 · 2x M.2 (1x PCIe 4.0, 1x PCIe 3.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN (Realtek RTL8111H 1GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC897 audio
  • Rear I/O 6 USB (4x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 28 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 5000 / 3000 Series
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4 up to 4400 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
PCIe Gen 4.0
M.2 Slots 2x M.2 (1x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Realtek RTL8111H 1GbE
Wi-Fi Wi-Fi 6E
Bluetooth 5.3
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Brand MSI
Condition NEW
MFR Part PRO B550M-P WIFI6E
