MSI board, 305 x 244 mm, 14 rear USB ports. Supports AMD Ryzen 3000 / 2000 Series.

MFR WARRANTY
Manufacturer terms apply MSI → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

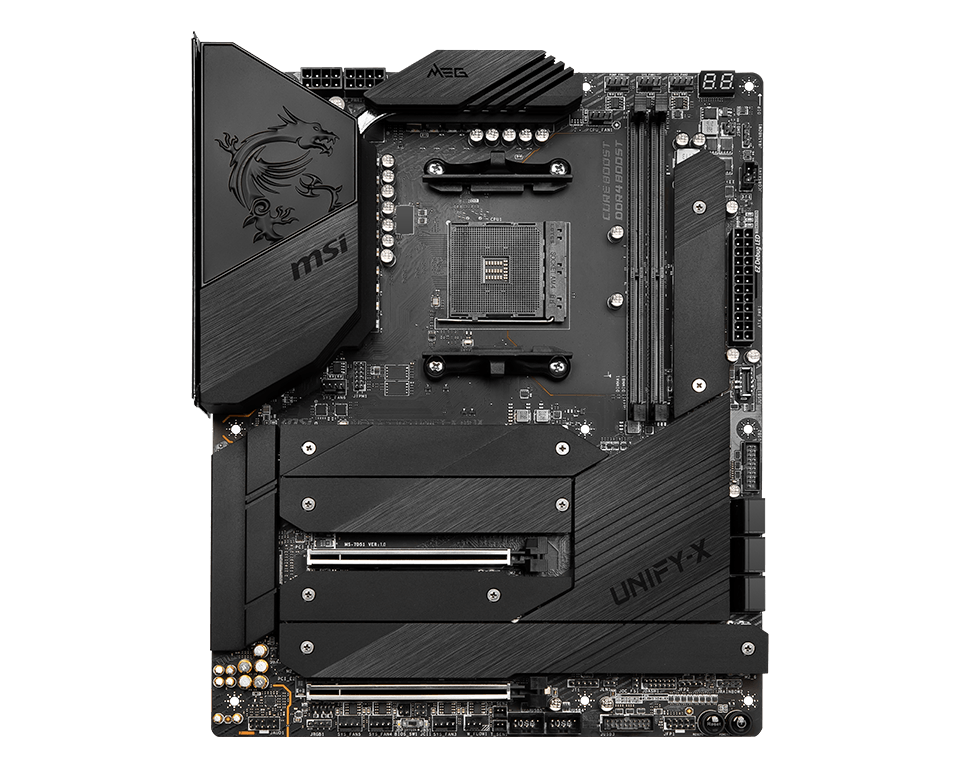

The MSI MEG X570S UNIFY-X MAX is an AM4 ATX motherboard built on AMD's X570 chipset, with 2 DDR4 DIMM slots for up to 64 GB and 2.5GbE LAN.

  • Platform AM4 · X570 chipset · AMD Ryzen 3000 / 2000 Series
  • Memory 2x DDR4 DIMM · up to 64 GB · DDR4-1866 to 5300 MT/s (OC)
  • Connectivity 2.5GbE LAN (Realtek RTL8125) · Realtek ALC4080 audio
  • Rear I/O 14 USB (1x USB-C 20Gbps, 3x USB-A 10Gbps, 4x USB-A 5Gbps, 6x USB 2.0)

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
X570
CHIPSET
2 DIMM
MEMORY SLOTS
6 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 23 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset X570
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 3000 / 2000 Series
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 2
Max Memory 64 GB
Max OC Speed DDR4 up to 5800 MT/s (OC)
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe x16
M.2 Slots 6x M.2
SATA Ports 6x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 8125B 2.5GbE
Wi-Fi None
Audio Realtek ALC4080
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand MSI
Condition NEW
MFR Part MEG X570S UNIFY-X MAX
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
