XFX unit, triple-fan cooling, 3-slot, 320 mm long. Rated 160 W; XFX recommends a 450 W supply.

MFR WARRANTY
Manufacturer terms apply
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

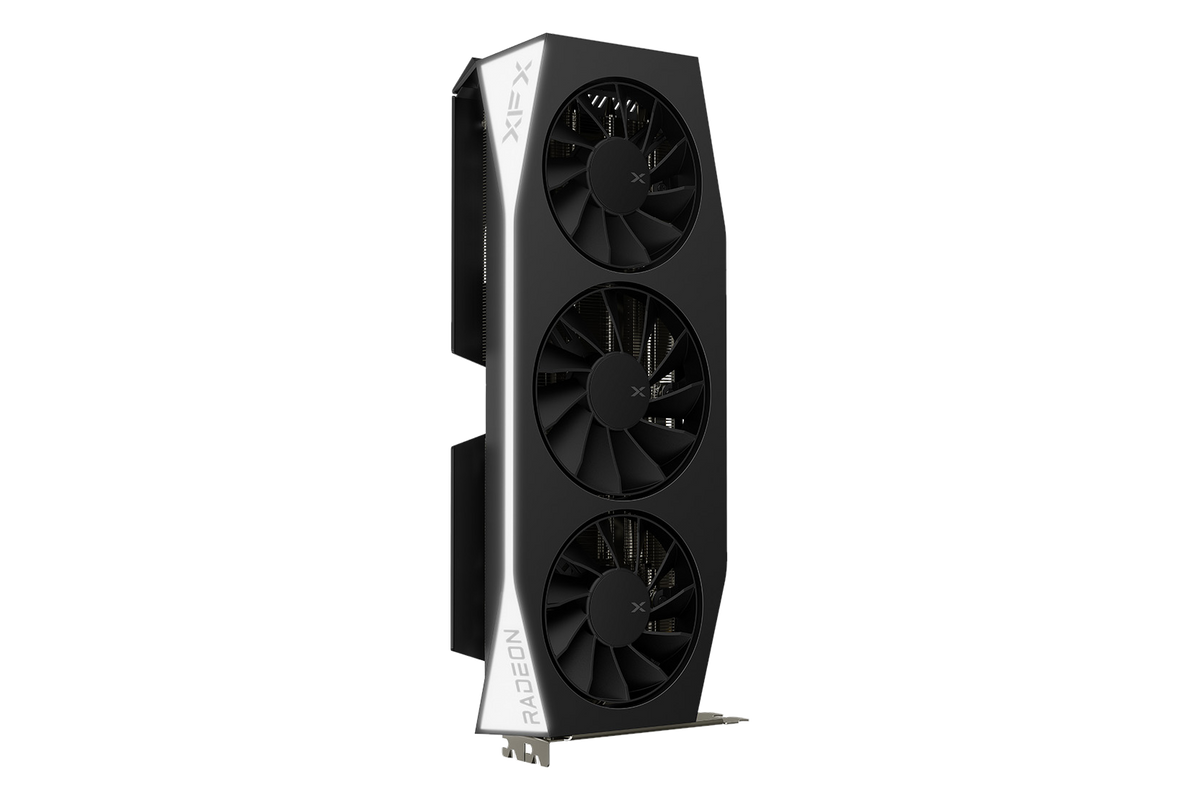

The XFX MERCURY RX 9060 XT OC is a 16 GB GDDR6 graphics card built on AMD's RX 9060 XT with 2,048 stream processors, a 3320 MHz boost clock and 3 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR6 · 128-bit bus · 20 Gbps · 320 GB/s bandwidth
  • Cores 2,048 stream processors
  • Boost 3320 MHz boost · 1900 MHz base · 2780 MHz game
  • Power 160 W board power · 1x 8-pin · 450 W recommended PSU

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
3320 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
2048
STREAM PROCESSORS
160 W
BOARD POWER
[ PARAMETER TABLE ] // 20 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 9000
Stream Processors 2048
Boost Clock 3320 MHz
Game Clock 2780 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 128-bit
Memory Bandwidth 320 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 160 W
Min PSU 450 W
Power Connectors 1x 8-pin
Cooling Triple Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1, 2x DisplayPort 2.1
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Length 320 mm
Slot Width 3-slot
Dimensions 320 x 127 x 53 mm
[ SUPPORT ] SPEC·06
NIMBUS 1 Year →
