PNY unit, 3.5-slot, 329 mm long. Rated 600 W; PNY recommends a 1000 W supply.

MFR WARRANTY
3 Years Limited PNY → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

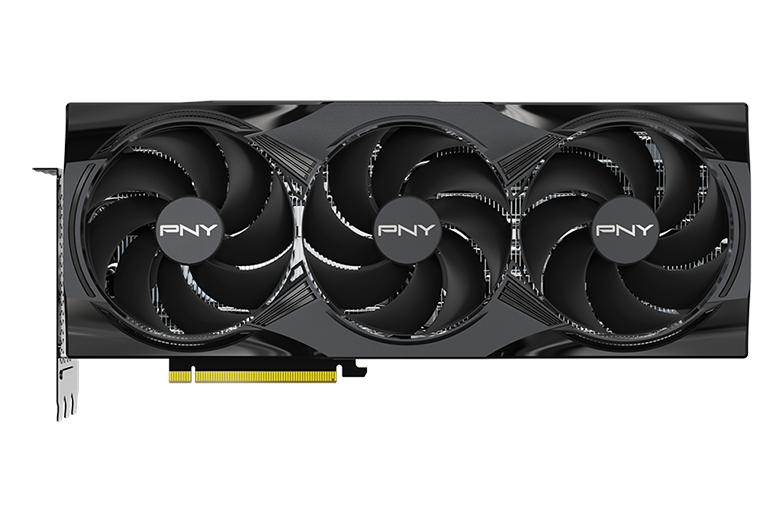

The PNY RTX 5090 OC is a 32 GB GDDR7 graphics card built on NVIDIA's RTX 5090 with 21,760 CUDA cores, a 2527 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 32 GB GDDR7 · 512-bit bus · 28 Gbps · 1792 GB/s bandwidth
  • Cores 21,760 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2527 MHz boost · 2017 MHz base
  • Interface PCIe 5.0 x16 · 1x HDMI, 3x DisplayPort 2.1b · up to 4 displays
  • Power 600 W board power · 1x 16-pin · 1000 W recommended PSU

3 Years Limited manufacturer warranty from PNY, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2527 MHz
BOOST CLOCK
32 GB
VIDEO MEMORY
21760
CUDA CORES
600 W
BOARD POWER
[ PARAMETER TABLE ] // 24 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 5000
Process Node TSMC 4N
CUDA Cores 21760
Boost Clock 2527 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 32 GB
Memory Type GDDR7
Memory Bus 512-bit
Memory Bandwidth 1792 GB/s
Memory Clock 28000 MHz (28 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 600 W
Min PSU 1000 W
Power Connectors 1x 16-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI, 3x DisplayPort 2.1b
Max Monitors 4
DisplayPort 2.1b
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 329 mm
Slot Width 3.5-slot
Dimensions 328.7 x 137.7 x 70 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited PNY → (opens in a new tab)
NIMBUS 1 Year →
