Gigabyte board, 244 x 244 mm, 10 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel Core Ultra (Series 2).

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

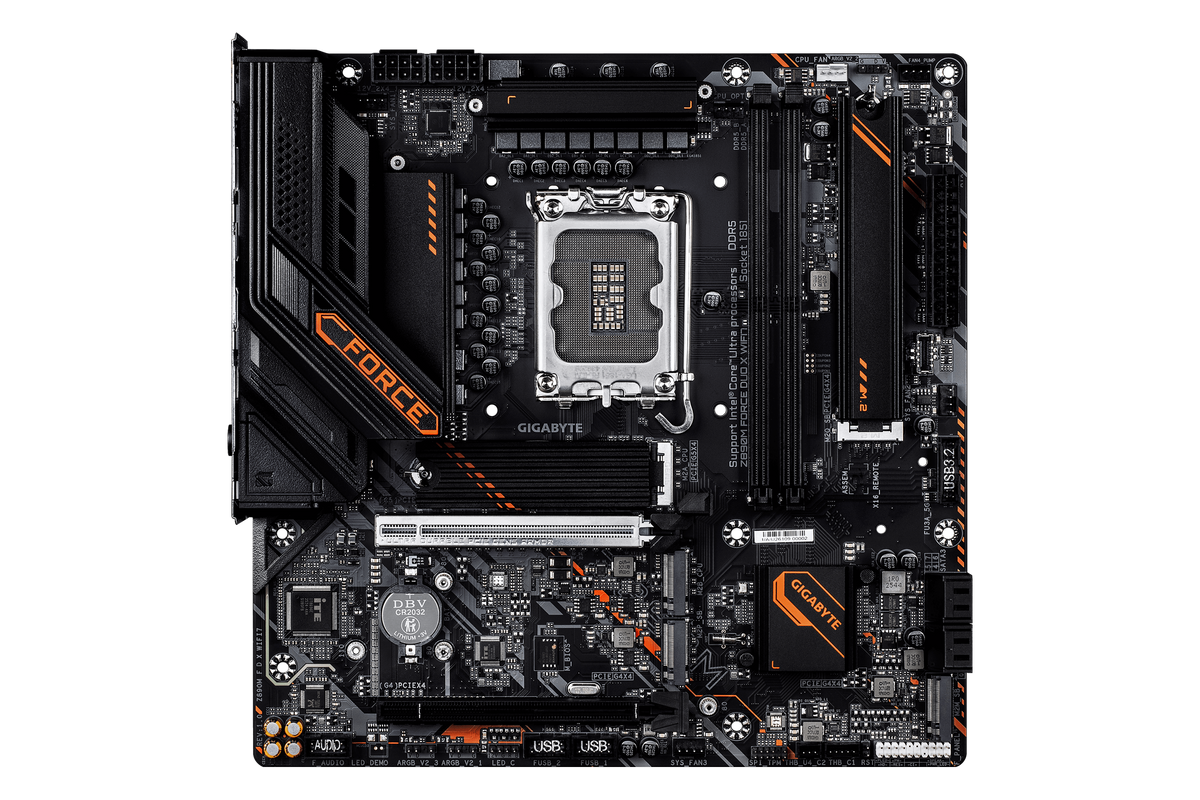

The Gigabyte Z890M FORCE DUO X WIFI7 is an LGA1851 mATX motherboard built on Intel's Z890 chipset, with 2 DDR5 DIMM slots for up to 256 GB, 5 M.2 slots, 5GbE LAN and Wi-Fi 7.

  • Platform LGA1851 · Z890 chipset · Intel Core Ultra (Series 2)
  • Memory 2x DDR5 DIMM · up to 256 GB · DDR5-8000 to 8000 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 5x M.2 (1x PCIe 5.0, 4x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 5GbE LAN (Realtek 5GbE) · Wi-Fi 7 · Bluetooth 5.4
  • Rear I/O 10 USB (4x USB-A 5Gbps, 1x USB4 Type-C, 4x USB 2.0, 1x USB-A 10Gbps) · 1x DisplayPort, 1x USB4 Type-C (DisplayPort) · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
Z890
CHIPSET
2 DIMM
MEMORY SLOTS
5 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 30 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset Z890
CPU Platform Intel
Form Factor mATX
CPU Support Intel Core Ultra (Series 2)
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 256 GB
Max OC Speed DDR5-8000 to 8000 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 5x M.2 (1x PCIe 5.0, 4x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 5 Gbps
LAN Chip Realtek 5GbE
Wi-Fi Wi-Fi 7
Wireless Chip Realtek RTL8922AE (PCB rev. 1.0)
Bluetooth 5.4
Display Outputs 1x DisplayPort, 1x USB4 Type-C (DisplayPort)
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part Z890M FORCE DUO X WIFI7
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
