Gigabyte board, 305 x 285 mm, 10 rear USB ports. Supports Intel Core Ultra (Series 2).

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

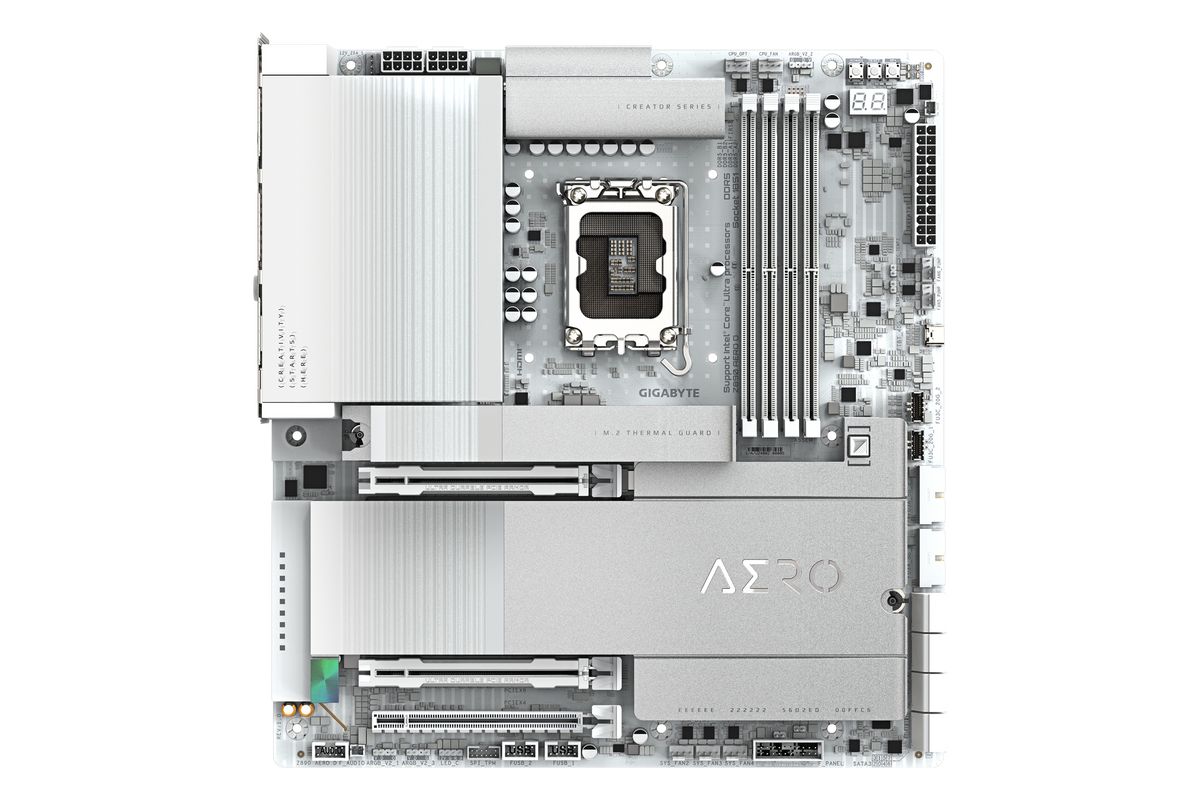

The Gigabyte Z890 AERO D is an LGA1851 E-ATX motherboard built on Intel's Z890 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 4 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform LGA1851 · Z890 chipset · Intel Core Ultra (Series 2)
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-5600 to 6400 MT/s
  • Expansion 2x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (2 x Marvell AQtion AQC113C 10GbE) · Wi-Fi 7 · Bluetooth 5.4 · ESS ES9260 audio
  • Rear I/O 10 USB (2x USB4 Type-C, 2x USB-A 5Gbps, 6x USB-A 10Gbps) · 1x DisplayPort, 1x HDMI

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
Z890
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset Z890
CPU Platform Intel
Form Factor E-ATX
CPU Support Intel Core Ultra (Series 2)
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-5600 to 6400 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps
LAN Chip 2 x Marvell AQtion AQC113C 10GbE
Wi-Fi Wi-Fi 7
Wireless Chip Intel BE200
Bluetooth 5.4
Display Outputs 1x DisplayPort, 1x HDMI
Audio ESS ES9260
[ PHYSICAL ] SPEC·05
Dimensions 305 x 285 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part Z890 AERO D
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
