[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Gigabyte board, 244 x 244 mm, 12 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

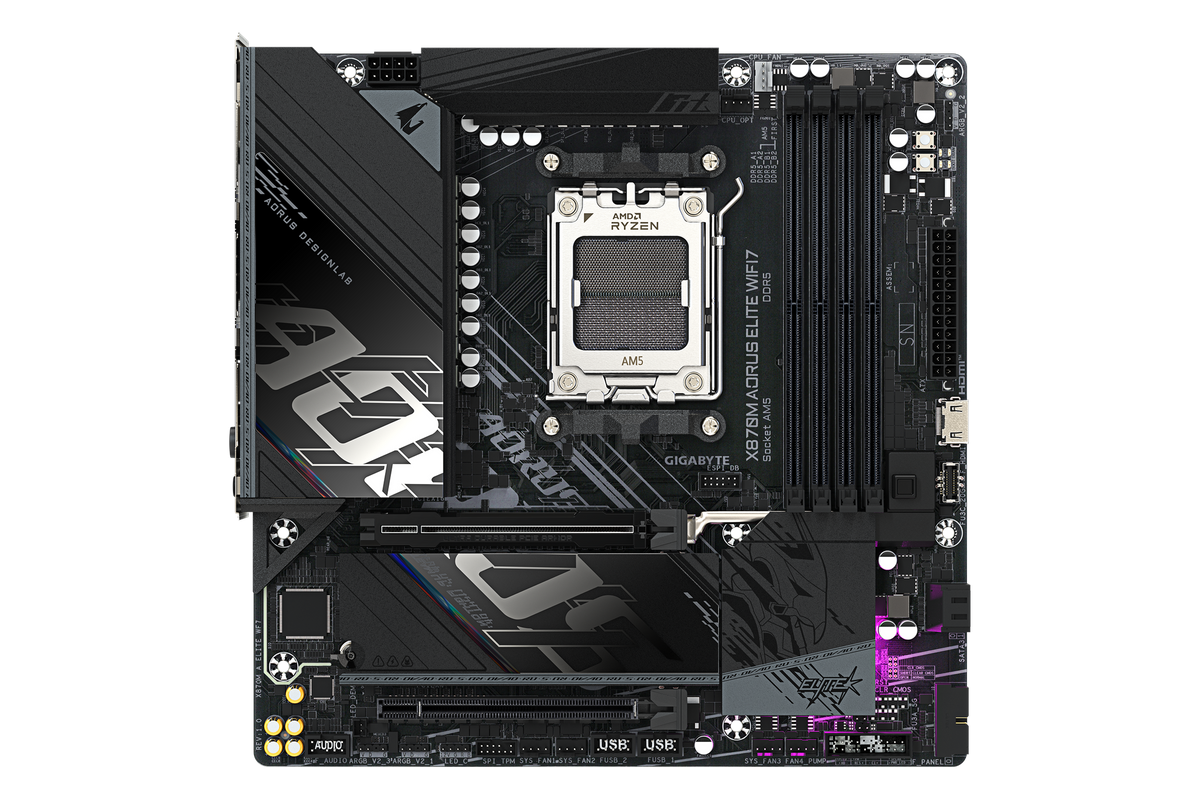

The Gigabyte X870M AORUS ELITE WIFI7 is an AM5 mATX motherboard built on AMD's X870 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 7.

  • Platform AM5 · X870 chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4400 to 5200 MT/s
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0) · 2x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC1220 audio
  • Rear I/O 12 USB (4x USB 2.0, 4x USB-A 5Gbps, 2x USB-A 10Gbps, 2x USB4 Type-C) · 1x HDMI, 2x USB4 Type-C (DisplayPort) · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X870
CHIPSET
4 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X870
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4400 to 5200 MT/s
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 2x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 7
Wireless Chip Realtek RTL8922AE
Bluetooth 5.4
Display Outputs 1x HDMI, 2x USB4 Type-C (DisplayPort)
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 244 x 244 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part X870M AORUS ELITE WIFI7
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
