Gigabyte board, 305 x 275 mm, 8 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

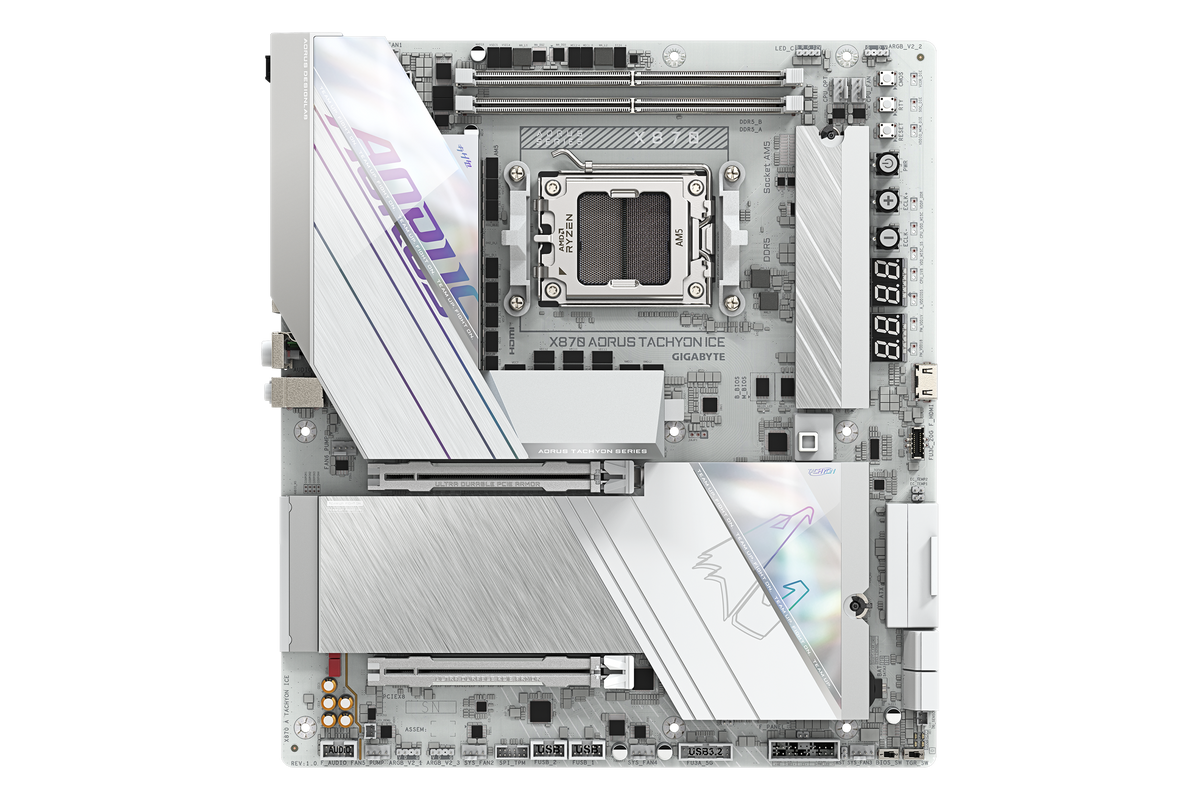

The Gigabyte X870 AORUS TACHYON ICE is an AM5 E-ATX motherboard built on AMD's X870 chipset, with 2 DDR5 DIMM slots for up to 128 GB, 3 M.2 slots, 5GbE LAN and Wi-Fi 7.

  • Platform AM5 · X870 chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 2x DDR5 DIMM · up to 128 GB · DDR5-4400 to 9600 MT/s (OC)
  • Expansion 2x PCIe 5.0 x16 · 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 5GbE LAN (Realtek 5GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC1220 audio
  • Rear I/O 8 USB (4x USB-A 5Gbps, 3x USB-A 10Gbps, 1x USB4 Type-C) · 1x HDMI, 1x USB4 Type-C (DisplayPort) · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
X870
CHIPSET
2 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset X870
CPU Platform AMD
Form Factor E-ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 128 GB
Max OC Speed DDR5-4400 to 9600 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 2x PCIe 5.0 x16
PCIe Gen 5.0
M.2 Slots 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 5 Gbps
LAN Chip Realtek 5GbE
Wi-Fi Wi-Fi 7
Wireless Chip Realtek RTL8922AE
Bluetooth 5.4
Display Outputs 1x HDMI, 1x USB4 Type-C (DisplayPort)
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 275 mm
Color White
Brand Gigabyte
Condition NEW
MFR Part X870 AORUS TACHYON ICE
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
