Gigabyte unit, triple-fan cooling, 2.5-slot, 288 mm long. Rated 220 W; Gigabyte recommends a 750 W supply.

MFR WARRANTY
3 Years GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

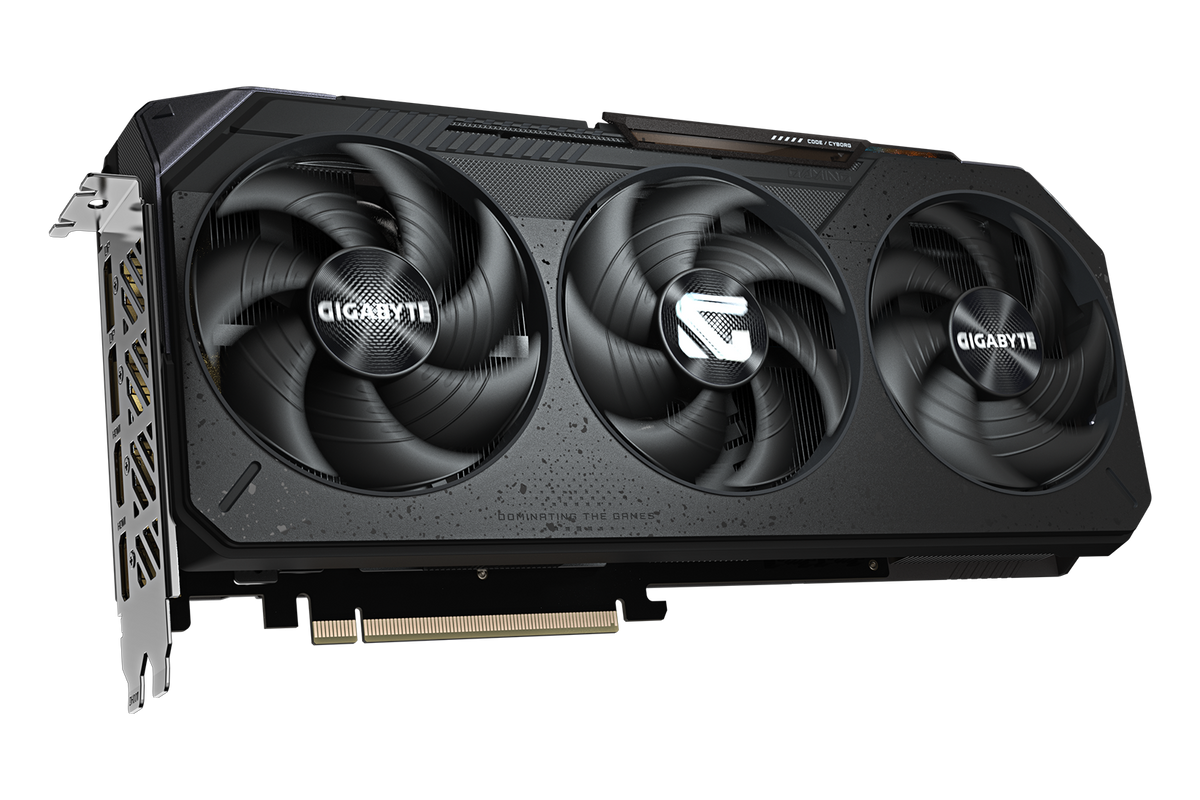

The Gigabyte GAMING RX 9070 GRE OC is a 12 GB GDDR6 graphics card built on AMD's RX 9070 GRE with 3,072 stream processors, a 2920 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 12 GB GDDR6 · 192-bit bus
  • Cores 3,072 stream processors · DirectX 12.0 · OpenGL 4.6
  • Boost 2920 MHz boost
  • Interface PCIe 5.0 x16 · 2x HDMI, 2x DisplayPort · up to 4 displays at 7680 x 4320
  • Power 220 W board power · 2x 8-pin · 750 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2920 MHz
BOOST CLOCK
12 GB
VIDEO MEMORY
3072
STREAM PROCESSORS
220 W
BOARD POWER
[ PARAMETER TABLE ] // 28 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 9000
Stream Processors 3072
Boost Clock 2920 MHz
Factory OC Yes
Game Clock 2340 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 12 GB
Memory Type GDDR6
Memory Bus 192-bit
Memory Bandwidth 432 GB/s
Memory Clock 18000 MHz (18 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 220 W
Min PSU 750 W
Power Connectors 2x 8-pin
Cooling Triple Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 2x HDMI 2.1b, 2x DisplayPort 2.1a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 288 mm
Slot Width 2.5-slot
Form Factor Full-Height/Full-Length
Dimensions 288 x 132 x 50 mm
[ FEATURES / API ] SPEC·06
DirectX 12.0
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer 3 Years GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
