Gigabyte unit, dual-fan cooling, 2-slot, 208 mm long. Rated 180 W; Gigabyte recommends a 650 W supply.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

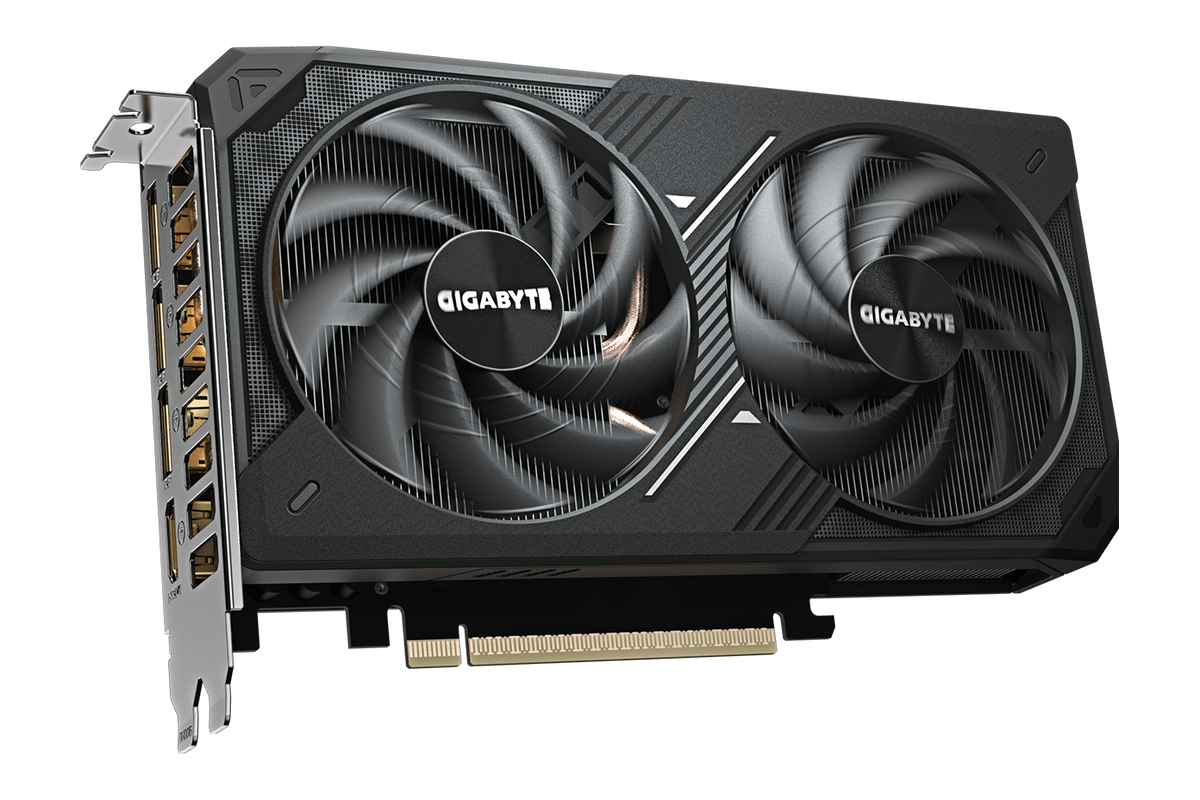

The Gigabyte WINDFORCE MAX RTX 5060 Ti is a 16 GB GDDR7 graphics card built on NVIDIA's RTX 5060 Ti with 4,608 CUDA cores, a 2572 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR7 · 128-bit bus · 28 Gbps · 448 GB/s bandwidth
  • Cores 4,608 CUDA cores · DirectX 12 Ultimate · OpenGL 4.6
  • Boost 2572 MHz boost · 2410 MHz base
  • Interface PCIe 5.0 x8 · 1x HDMI 2.1b, 3x DisplayPort 2.1b · up to 4 displays at 7680 x 4320
  • Power 180 W board power · 1x 8-pin · 650 W recommended PSU

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2572 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
4608
CUDA CORES
180 W
BOARD POWER
[ PARAMETER TABLE ] // 27 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor NVIDIA
Series GeForce RTX 5000
CUDA Cores 4608
Boost Clock 2572 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR7
Memory Bus 128-bit
Memory Bandwidth 448 GB/s
Memory Clock 28000 MHz (28 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 180 W
Min PSU 650 W
Power Connectors 1x 8-pin
Cooling Dual Fan
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1b, 3x DisplayPort 2.1b
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1b
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x8
Length 208 mm
Slot Width 2-slot
Form Factor Full-Height/Half-Length
Dimensions 208 x 120 x 40 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
FreeSync G-SYNC
[ SUPPORT ] SPEC·07
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
