Gigabyte board, 244 x 215 mm, 6 rear USB ports. Supports Intel Core Ultra (Series 2).

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

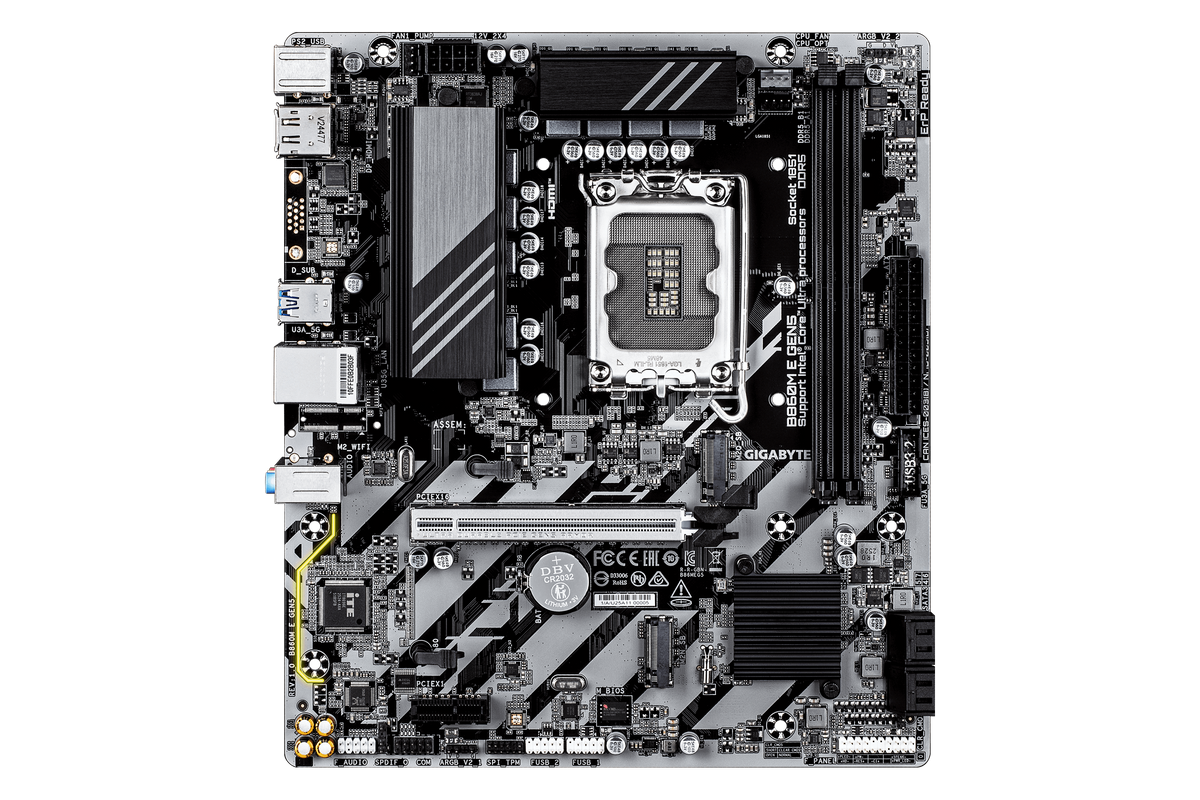

The Gigabyte B860M E GEN5 is an LGA1851 mATX motherboard built on Intel's B860 chipset, with 2 DDR5 DIMM slots for up to 128 GB, 2 M.2 slots and 1GbE LAN.

  • Platform LGA1851 · B860 chipset · Intel Core Ultra (Series 2)
  • Memory 2x DDR5 DIMM · up to 128 GB · DDR5-5600 to 6400 MT/s
  • Expansion 1x PCIe 5.0 x16 · 2x M.2 (2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN (Realtek GbE) · Realtek ALC897 audio
  • Rear I/O 6 USB (4x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
B860
CHIPSET
2 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset B860
CPU Platform Intel
Form Factor mATX
CPU Support Intel Core Ultra (Series 2)
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 128 GB
Max OC Speed DDR5-5600 to 6400 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16
PCIe Gen 5.0
M.2 Slots 2x M.2 (2x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Realtek GbE
Wi-Fi None
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 244 x 215 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part B860M E GEN5
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
