[ UNIT BRIEFING ]

// ORBITAL INVENTORY

Gigabyte board, 170 x 170 mm, 6 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2).

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

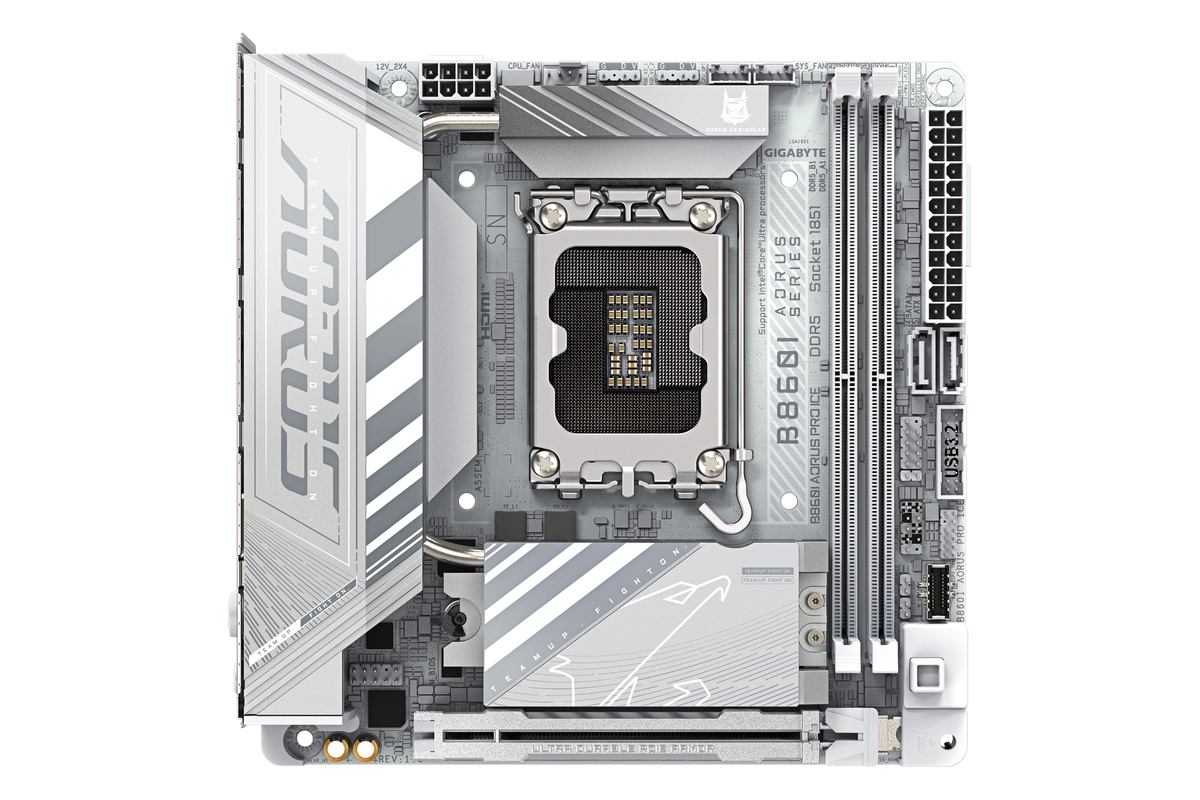

The Gigabyte B860I AORUS PRO ICE is an LGA1851 Mini-ITX motherboard built on Intel's B860 chipset, with 2 DDR5 DIMM slots for up to 128 GB, 2 M.2 slots, 2.5GbE LAN and Wi-Fi 7.

  • Platform LGA1851 · B860 chipset · Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
  • Memory 2x DDR5 DIMM · up to 128 GB · DDR5-5600 to 6400 MT/s
  • Expansion 1x PCIe 5.0 x16 · 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0) · 2x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC897 audio
  • Rear I/O 6 USB (1x USB4 Type-C, 3x USB-A 10Gbps, 2x USB-A 5Gbps) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
B860
CHIPSET
2 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset B860
CPU Platform Intel
Form Factor Mini-ITX
CPU Support Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 128 GB
Max OC Speed DDR5-5600 to 6400 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16
PCIe Gen 5.0
M.2 Slots 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 2x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 7
Wireless Chip Realtek RTL8922AE (PCB rev. 1.0)
Bluetooth 5.4
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 170 x 170 mm
Color White
Brand Gigabyte
Condition NEW
MFR Part B860I AORUS PRO ICE
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
