Gigabyte board, 305 x 244 mm, 11 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 / 8000 / 7000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

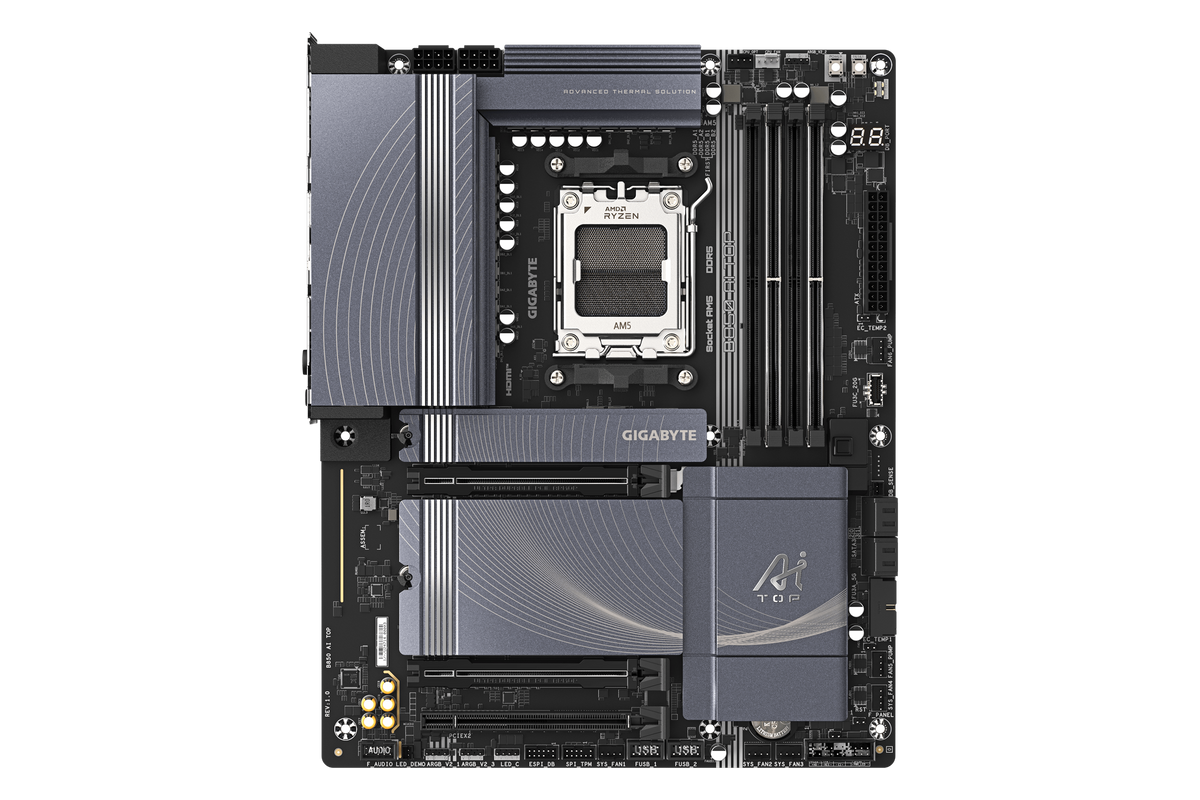

The Gigabyte B850 AI TOP is an AM5 ATX motherboard built on AMD's B850 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots, 10GbE LAN and Wi-Fi 7.

  • Platform AM5 · B850 chipset · AMD Ryzen 9000 / 8000 / 7000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4800 to 8600 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16 · 3x M.2 (2x PCIe 5.0, 1x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (2 x Marvell AQtion AQC113C 10GbE) · Wi-Fi 7 · Bluetooth 5.4 · Realtek ALC1220 audio
  • Rear I/O 11 USB (3x USB-A 10Gbps, 4x USB-A 5Gbps, 4x USB 2.0) · 1x HDMI, 1x DisplayPort · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B850
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B850
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 9000 / 8000 / 7000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4800 to 8600 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 3x M.2 (2x PCIe 5.0, 1x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps
LAN Chip 2 x Marvell AQtion AQC113C 10GbE
Wi-Fi Wi-Fi 7
Wireless Chip Realtek RTL8922AE
Bluetooth 5.4
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part B850 AI TOP
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
