Gigabyte board, 230 x 225 mm, 6 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

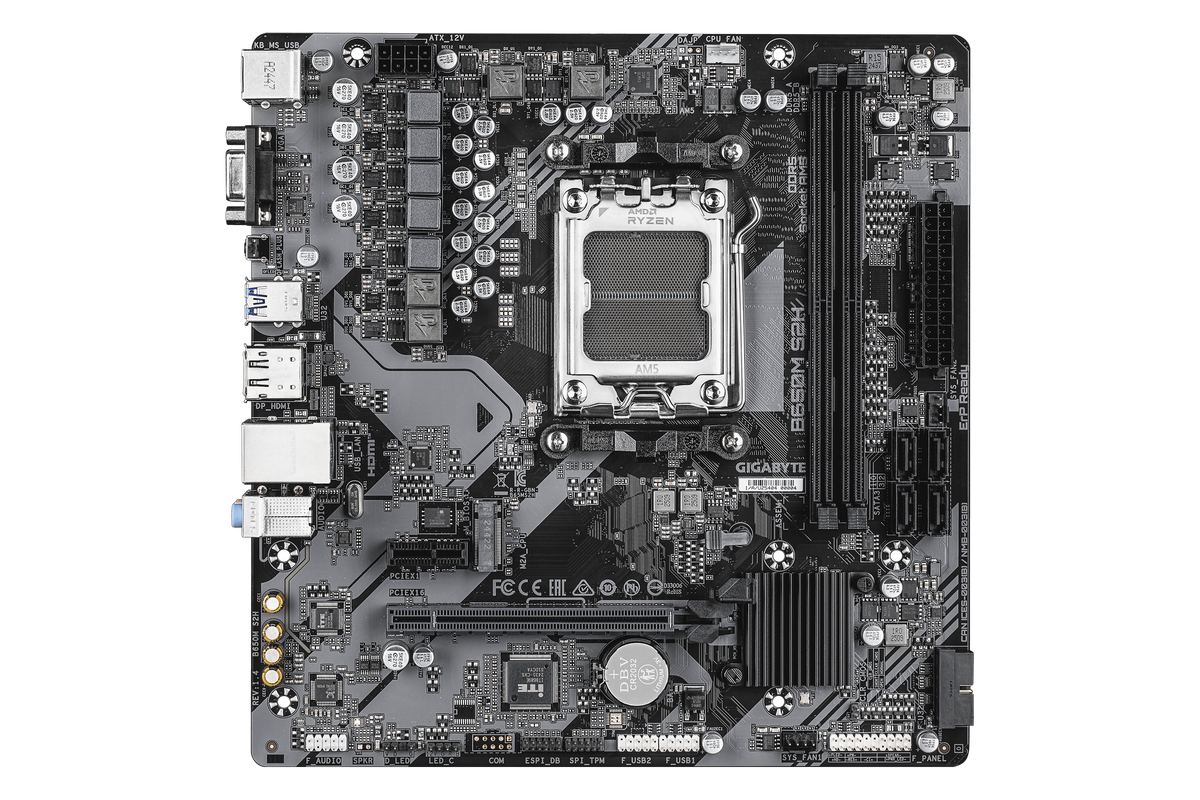

The Gigabyte B650M S2H is an AM5 mATX motherboard built on AMD's B650 chipset, with 2 DDR5 DIMM slots for up to 128 GB, 1 M.2 slots and 1GbE LAN.

  • Platform AM5 · B650 chipset · AMD Ryzen 9000 Series
  • Memory 2x DDR5 DIMM · up to 128 GB · DDR5-4400 to 7200 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16 · 1x M.2 (1x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN (Realtek GbE) · Realtek ALC897 audio
  • Rear I/O 6 USB (4x USB 2.0, 2x USB-A 5Gbps) · 1x DisplayPort, 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B650
CHIPSET
2 DIMM
MEMORY SLOTS
1 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B650
CPU Platform AMD
Form Factor mATX
CPU Support AMD Ryzen 9000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 128 GB
Max OC Speed DDR5-4400 to 7200 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 1x M.2 (1x PCIe 4.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Realtek GbE
Wi-Fi None
Display Outputs 1x DisplayPort, 1x HDMI
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 230 x 225 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part B650M S2H
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
