Gigabyte board, 305 x 244 mm, 13 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

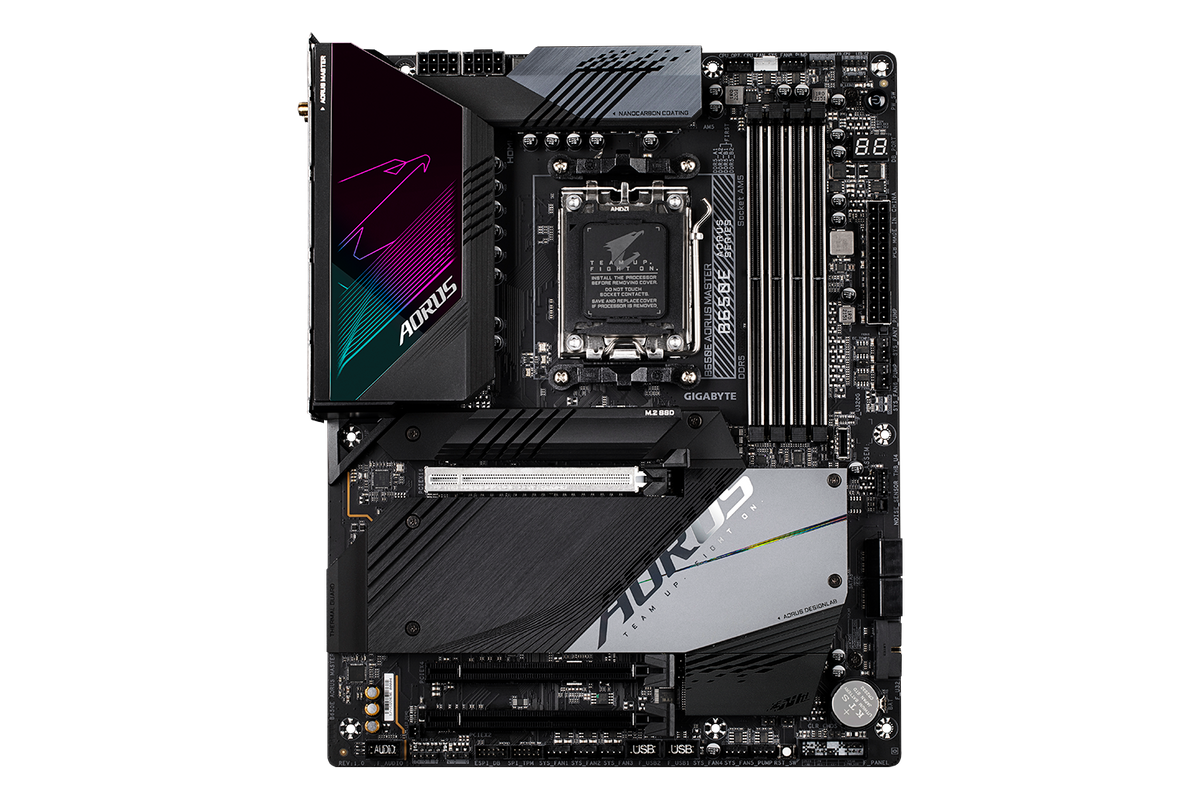

The Gigabyte B650E AORUS MASTER is an AM5 ATX motherboard built on AMD's B650E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 4 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM5 · B650E chipset · AMD Ryzen 9000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4400 to 8000 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 · 4x M.2 (4x PCIe 5.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Intel 2.5GbE) · Wi-Fi 6E · Bluetooth 5.2 · Realtek ALC1220 audio
  • Rear I/O 13 USB (1x USB-C 10Gbps, 4x USB-A 10Gbps, 4x USB-A 5Gbps, 4x USB 2.0) · 1x HDMI · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B650E
CHIPSET
4 DIMM
MEMORY SLOTS
4 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B650E
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 9000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4400 to 8000 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 2x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 4x M.2 (4x PCIe 5.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Intel 2.5GbE
Wi-Fi Wi-Fi 6E
Wireless Chip AMD RZ616 (MT7922A22M)
Bluetooth 5.2
Display Outputs 1x HDMI
Audio Realtek ALC1220
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color Black
Brand Gigabyte
Condition NEW
MFR Part B650E AORUS MASTER
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
