Gigabyte board, 305 x 244 mm, 11 rear USB ports, BIOS flashback (Q-Flash Plus). Supports AMD Ryzen 9000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

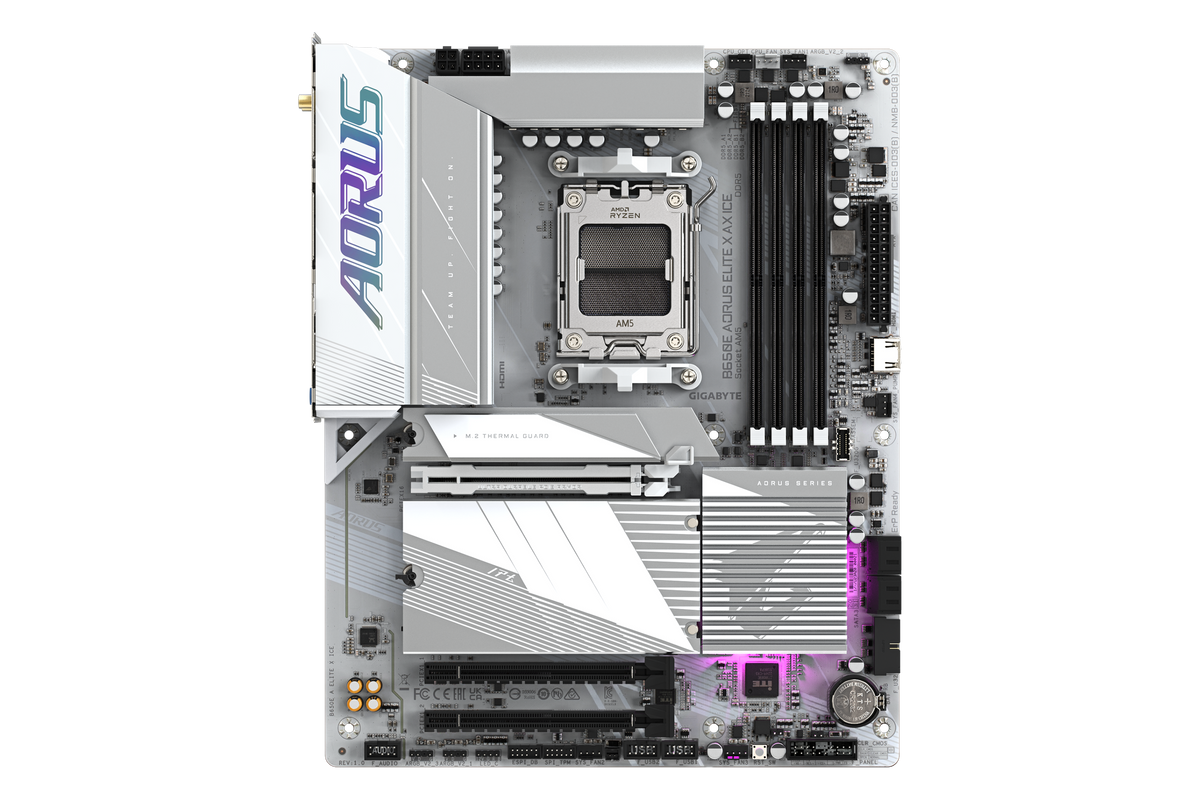

The Gigabyte B650E AORUS ELITE X AX ICE is an AM5 ATX motherboard built on AMD's B650E chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots, 2.5GbE LAN and Wi-Fi 6E.

  • Platform AM5 · B650E chipset · AMD Ryzen 9000 Series
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5-4800 to 8000 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 2x PCIe 3.0 x16 · 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Realtek 2.5GbE) · Wi-Fi 6E · Bluetooth 5.3 · Realtek ALC897 audio
  • Rear I/O 11 USB (2x USB-A 10Gbps, 5x USB-A 5Gbps, 4x USB 2.0) · 1x HDMI, 1x DisplayPort · BIOS flashback (Q-Flash Plus)

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM5
CPU SOCKET
B650E
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 31 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM5
Chipset B650E
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 9000 Series
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5-4800 to 8000 MT/s (OC)
Memory Profiles AMD EXPO, Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 2x PCIe 3.0 x16
PCIe Gen 5.0
M.2 Slots 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Realtek 2.5GbE
Wi-Fi Wi-Fi 6E
Wireless Chip Realtek RTL8852CE (PCB rev. 1.0)
Bluetooth 5.3
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Color White
Brand Gigabyte
Condition NEW
MFR Part B650E AORUS ELITE X AX ICE
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
