Gigabyte board, 305 x 244 mm, 10 rear USB ports. Supports AMD Ryzen 3000 Series.

MFR WARRANTY
3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

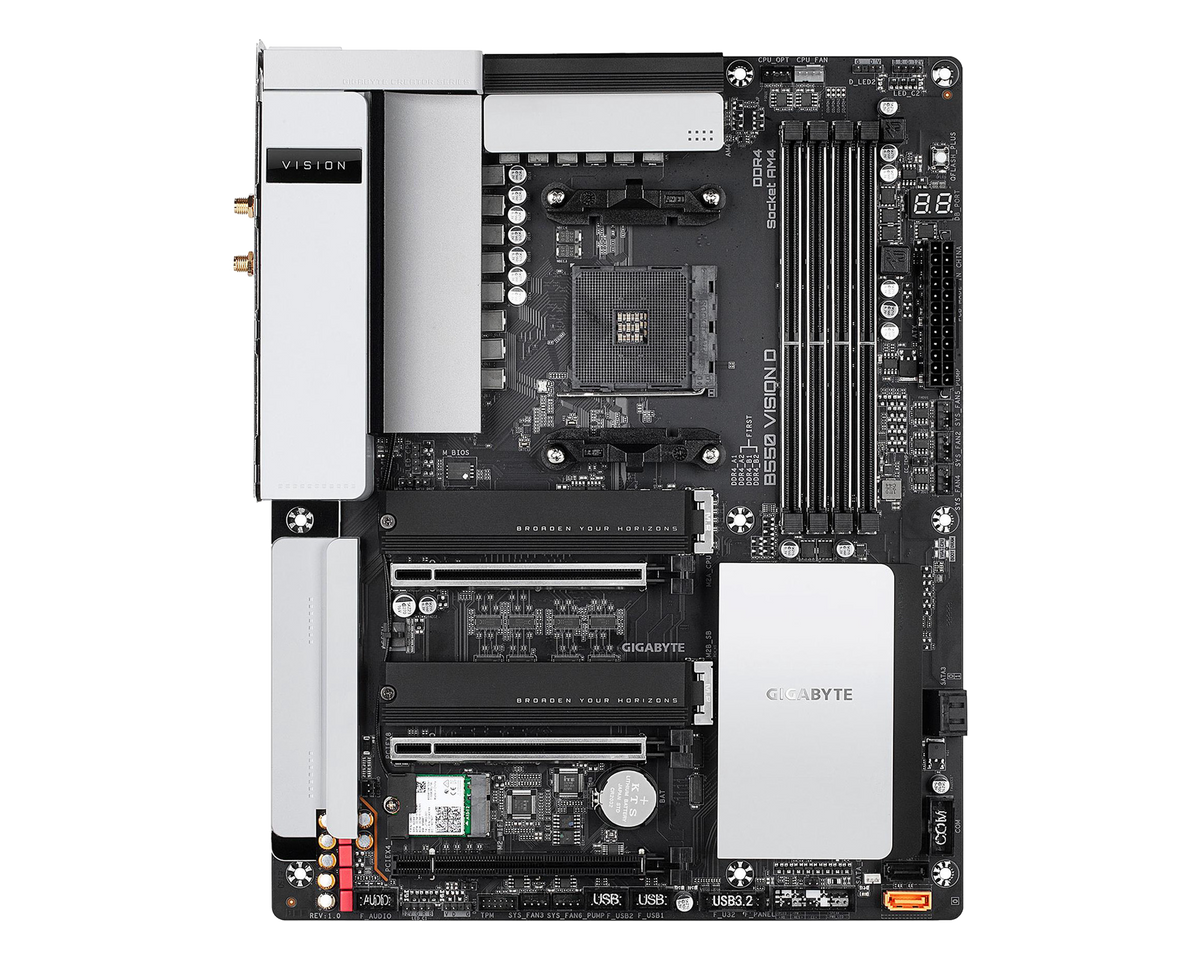

The Gigabyte B550 VISION D is an AM4 ATX motherboard built on AMD's B550 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 1 M.2 slots and 1GbE LAN.

  • Platform AM4 · B550 chipset · AMD Ryzen 3000 Series
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4-2133 to 5400 MT/s (OC)
  • Connectivity 1GbE LAN · Bluetooth 5.0 · Realtek ALC1220-VB audio
  • Rear I/O 10 USB (2x USB-C 10Gbps, 2x USB-A 10Gbps, 4x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI 2.1, 1x DisplayPort

3 Years Limited manufacturer warranty from Gigabyte, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
AM4
CPU SOCKET
B550
CHIPSET
4 DIMM
MEMORY SLOTS
1 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 22 PARAMETERS
[ PLATFORM ] SPEC·01
Socket AM4
Chipset B550
CPU Platform AMD
Form Factor ATX
CPU Support AMD Ryzen 3000 Series
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4-2133 to 5400 MT/s (OC)
[ EXPANSION ] SPEC·03
M.2 Slots 1x M.2
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
Bluetooth 5.0
Display Outputs 1x HDMI 2.1, 1x DisplayPort
Audio Realtek ALC1220-VB
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Brand Gigabyte
Condition NEW
MFR Part B550 VISION D
[ SUPPORT ] SPEC·06
Manufacturer 3 Years Limited GIGABYTE → (opens in a new tab)
NIMBUS 1 Year →
