ASRock board, 305 x 330 mm, 8 rear USB ports. Supports AMD Ryzen Threadripper PRO 9000 / 7000 Series.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

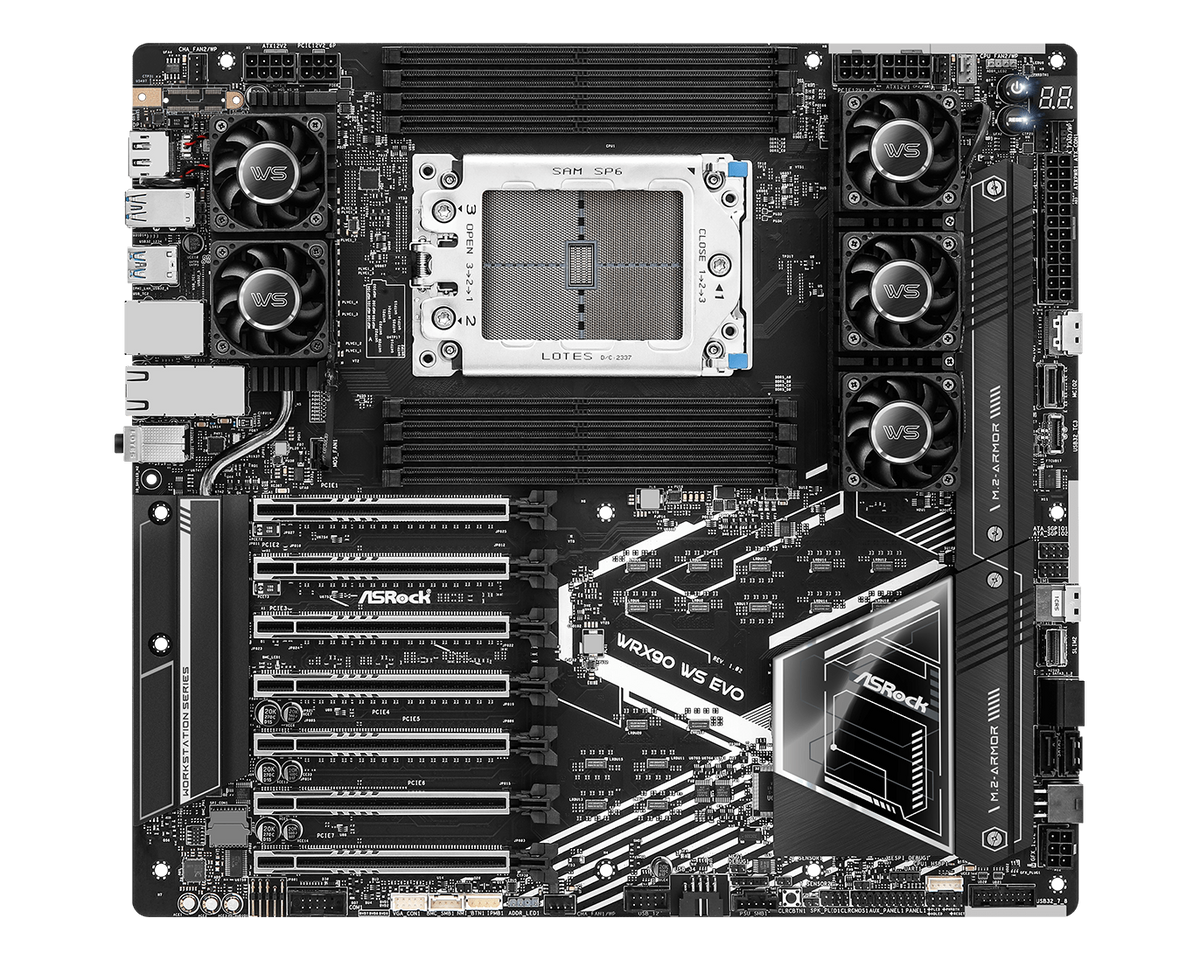

The ASRock WRX90 WS EVO is an sTR5 EEB motherboard built on AMD's WRX90 chipset, with 2 M.2 slots and 10GbE LAN.

  • Platform sTR5 · WRX90 chipset · AMD Ryzen Threadripper PRO 9000 / 7000 Series
  • Memory 8x DDR5 DIMM · DDR5 up to 7600 MT/s (OC)
  • Expansion 7x PCIe 5.0 x16 · 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 10GbE LAN (Intel X710 + Realtek RTL8211F) · Realtek ALC1220 audio
  • Rear I/O 8 USB (2x USB4 40Gbps Type-C, 4x USB-A 10Gbps, 2x USB-A 5Gbps) · 1x DisplayPort

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
sTR5
CPU SOCKET
WRX90
CHIPSET
8 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket sTR5
Chipset WRX90
CPU Platform AMD
Form Factor EEB
CPU Support AMD Ryzen Threadripper PRO 9000 / 7000 Series
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 8
Max Memory 2048 GB
Max OC Speed DDR5 up to 7600 MT/s (OC)
[ EXPANSION ] SPEC·03
PCIe x16 Slots 7x PCIe 5.0 x16
PCIe Gen 5.0
M.2 Slots 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 10 Gbps
LAN Chip Intel X710 + Realtek RTL8211F
Wi-Fi None
Display Outputs 1x DisplayPort
Audio Realtek ALC1220
[ POWER ] SPEC·05
VRM Phases 18+3+3
[ PHYSICAL ] SPEC·06
Dimensions 305 x 330 mm
Color Black
Brand ASRock
Condition NEW
MFR Part WRX90 WS EVO
