ASRock unit.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

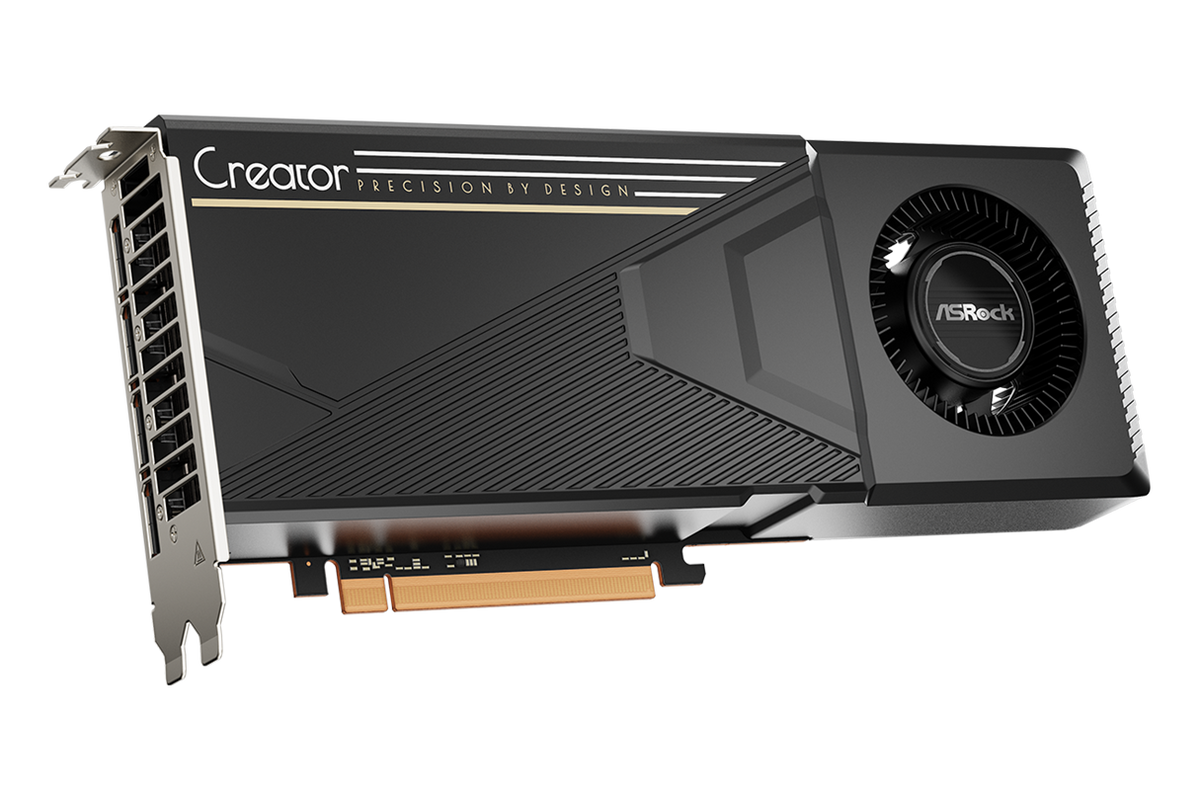

The ASRock CREATOR ARC PRO B65 is a 32 GB GDDR6 graphics card built on Intel's ARC PRO B65 with a 2400 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 32 GB GDDR6 · 256-bit bus · 19 Gbps · 608 GB/s bandwidth
  • Boost 2400 MHz boost
  • Interface PCIe 5.0 x16 · 4x DisplayPort 2.1 · up to 4 displays at 7680×4320

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2400 MHz
BOOST CLOCK
32 GB
VIDEO MEMORY
20
XE CORES
200 W
BOARD POWER
[ PARAMETER TABLE ] // 24 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor Intel
Series Arc PRO
Xe Cores 20
Compute Units 20
Boost Clock 2400 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 32 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 608 GB/s
Memory Clock 19000 MHz (19 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 200 W
Power Connectors 1x 16-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 4x DisplayPort 2.1
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 271 mm
Slot Width 2-slot
Dimensions 271 x 112 x 39 mm
[ FEATURES / API ] SPEC·06
DirectX 12 Ultimate
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
