ASRock unit, 3-slot, 290 mm long. Rated 304 W; ASRock recommends a 750 W supply.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

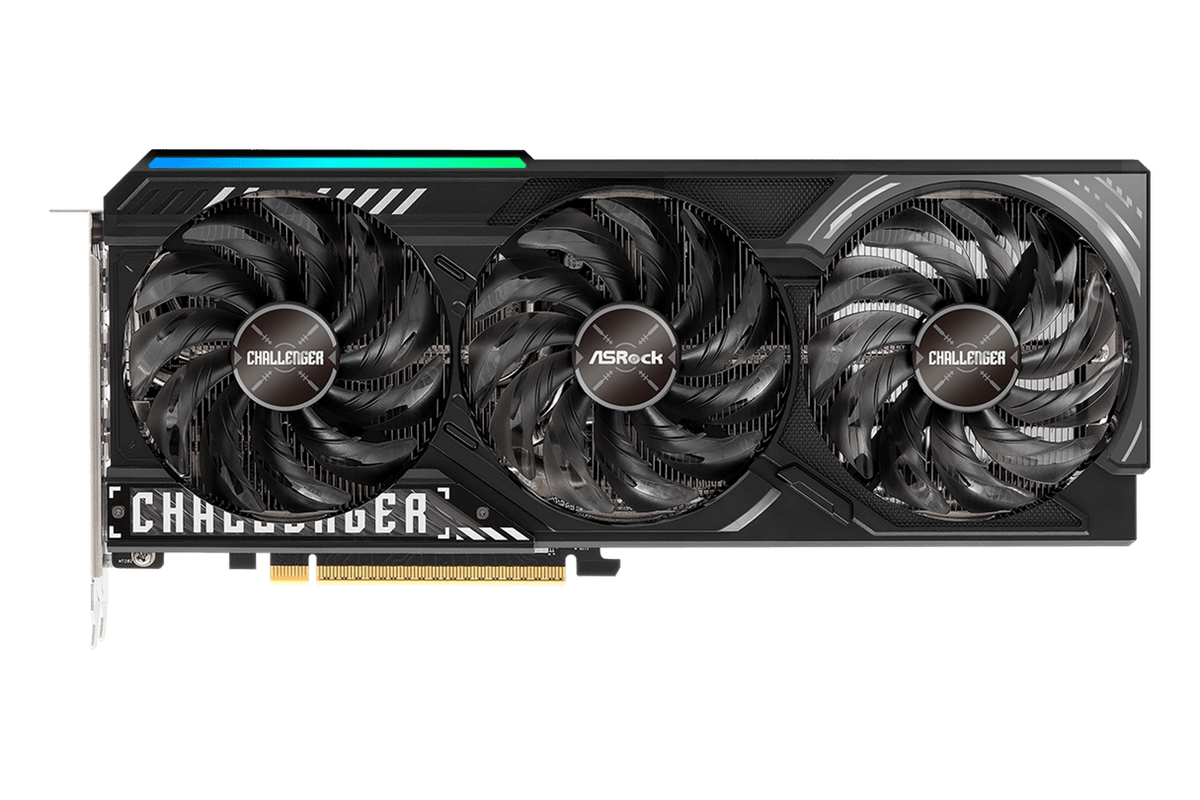

The ASRock CHALLENGER RX 9070 XT is a 16 GB GDDR6 graphics card built on AMD's RX 9070 XT with 4,096 stream processors, a 2970 MHz boost clock and 4 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR6 · 256-bit bus · 20 Gbps · 640 GB/s bandwidth
  • Cores 4,096 stream processors · OpenGL 4.6
  • Boost 2970 MHz boost · 2400 MHz game
  • Interface PCIe 5.0 x16 · 1x HDMI 2.1b, 3x DisplayPort 2.1a · up to 4 displays at 7680×4320
  • Power 304 W board power · 2x 8-pin · 750 W recommended PSU

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
2970 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
4096
STREAM PROCESSORS
304 W
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 9000
Stream Processors 4096
Compute Units 64
Boost Clock 2970 MHz
Game Clock 2400 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 256-bit
Memory Bandwidth 640 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 304 W
Min PSU 750 W
Power Connectors 2x 8-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1b, 3x DisplayPort 2.1a
Max Resolution 7680×4320
Max Monitors 4
DisplayPort 2.1a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 290 mm
Slot Width 3-slot
Dimensions 290 x 123 x 56 mm
[ FEATURES / API ] SPEC·06
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
