ASRock unit, 2-slot, 249 mm long. Rated 160 W; ASRock recommends a 550 W supply.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

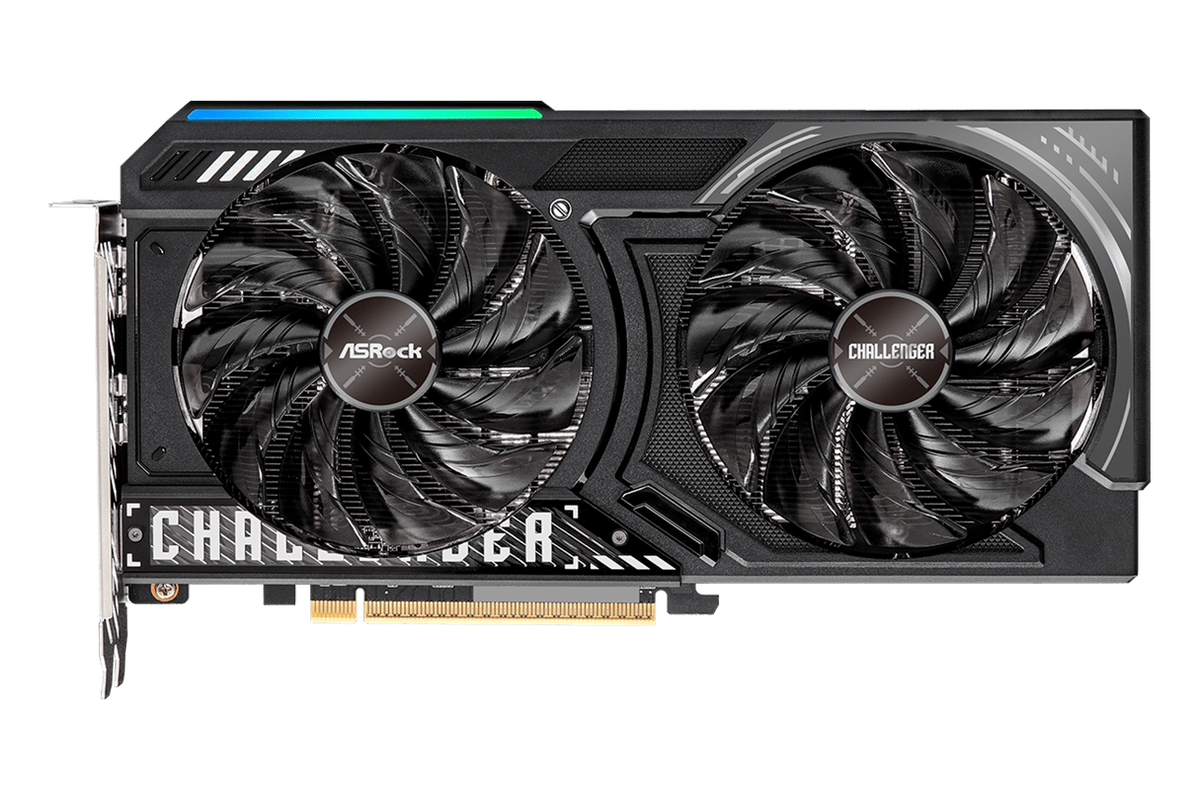

The ASRock CHALLENGER RX 9060 XT is a 16 GB GDDR6 graphics card built on AMD's RX 9060 XT with 2,048 stream processors, a 3230 MHz boost clock and 3 display outputs over PCIe 5.0.

  • Memory 16 GB GDDR6 · 128-bit bus · 20 Gbps · 320 GB/s bandwidth
  • Cores 2,048 stream processors · OpenGL 4.6
  • Boost 3230 MHz boost · 2620 MHz game
  • Interface PCIe 5.0 x16 · 1x HDMI 2.1b, 2x DisplayPort 2.1a · up to 3 displays at 7680×4320
  • Power 160 W board power · 1x 8-pin · 550 W recommended PSU

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
3230 MHz
BOOST CLOCK
16 GB
VIDEO MEMORY
2048
STREAM PROCESSORS
160 W
BOARD POWER
[ PARAMETER TABLE ] // 25 PARAMETERS
[ CORE ARCHITECTURE ] SPEC·01
GPU Vendor AMD
Series Radeon RX 9000
Stream Processors 2048
Compute Units 32
Boost Clock 3230 MHz
Game Clock 2620 MHz
[ MEMORY ] SPEC·02
Memory (VRAM) 16 GB
Memory Type GDDR6
Memory Bus 128-bit
Memory Bandwidth 320 GB/s
Memory Clock 20000 MHz (20 Gbps effective)
[ THERMAL & POWER ] SPEC·03
Board Power (TDP) 160 W
Min PSU 550 W
Power Connectors 1x 8-pin
[ DISPLAY & OUTPUTS ] SPEC·04
Outputs 1x HDMI 2.1b, 2x DisplayPort 2.1a
Max Resolution 7680×4320
Max Monitors 3
DisplayPort 2.1a
[ INTERFACE & FORM ] SPEC·05
Interface PCIe 5.0 x16
Length 249 mm
Slot Width 2-slot
Dimensions 249 x 132 x 41 mm
[ FEATURES / API ] SPEC·06
OpenGL 4.6
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
