ASRock board, 170 x 170 mm, 6 rear USB ports. Supports Intel Core 14th / 13th / 12th Gen.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

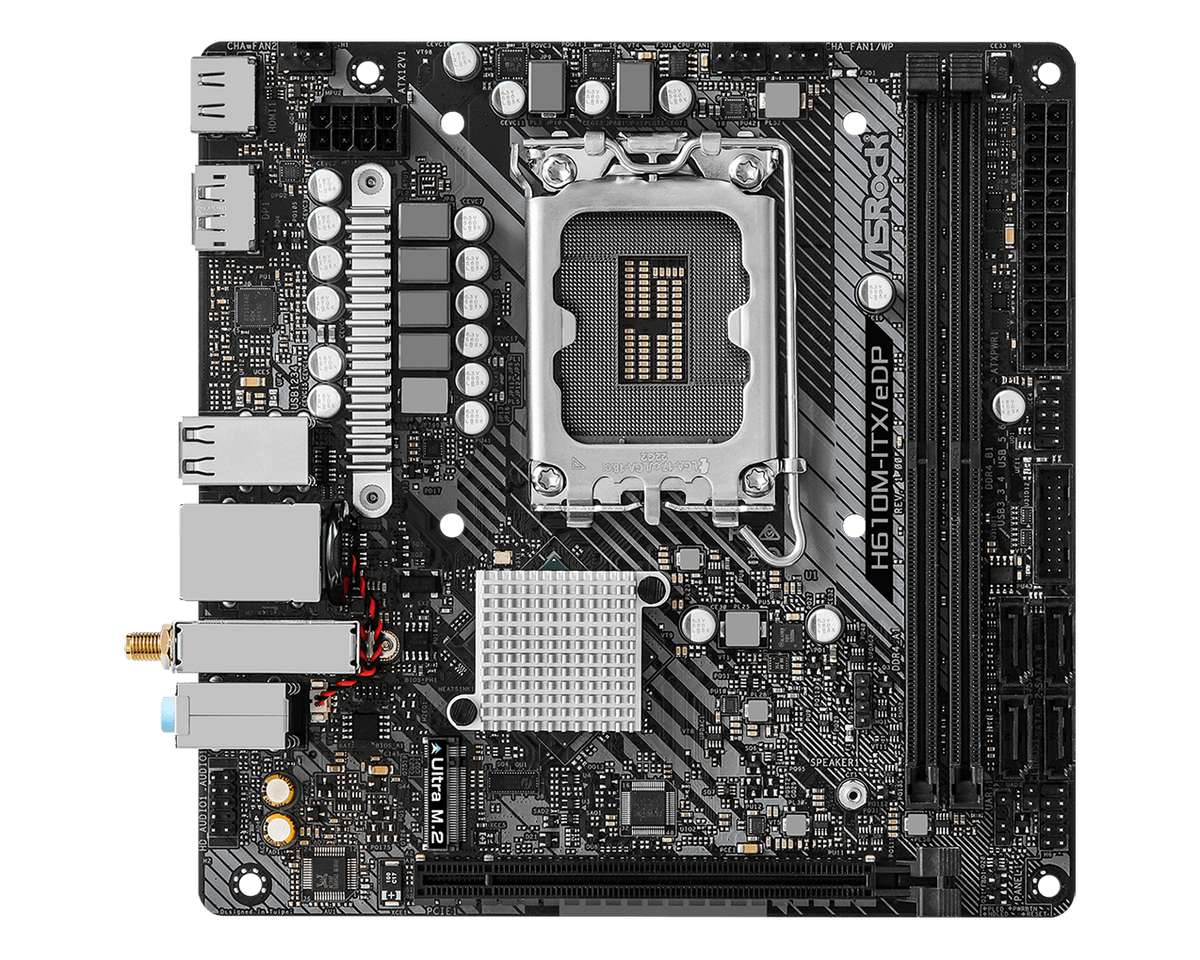

The ASRock H610M-ITX/eDP is an LGA1700 Mini-ITX motherboard built on Intel's H610 chipset, with 2 DDR4 DIMM slots for up to 64 GB, 1 M.2 slots, 1GbE LAN and Wi-Fi 5.

  • Platform LGA1700 · H610 chipset · Intel Core 14th / 13th / 12th Gen
  • Memory 2x DDR4 DIMM · up to 64 GB · DDR4 up to 3200 MT/s
  • Expansion 1x PCIe 4.0 x16 · 1x M.2 (1x PCIe 3.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN (Intel I219V) · Wi-Fi 5 · Bluetooth 5.1 · Realtek ALC897 audio
  • Rear I/O 6 USB (2x USB-A 5Gbps, 4x USB 2.0) · 1x HDMI, 1x DisplayPort

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
H610
CHIPSET
2 DIMM
MEMORY SLOTS
1 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset H610
CPU Platform Intel
Form Factor Mini-ITX
CPU Support Intel Core 14th / 13th / 12th Gen
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 2
Max Memory 64 GB
Max OC Speed DDR4 up to 3200 MT/s
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 1x M.2 (1x PCIe 3.0)
M.2 Gen 3.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Intel I219V
Wi-Fi Wi-Fi 5
Bluetooth 5.1
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 170 x 170 mm
Brand ASRock
Condition NEW
MFR Part H610M-ITX/eDP
[ SUPPORT ] SPEC·06
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
