ASRock board, 244 x 211 mm, 6 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel Core Ultra (Series 2).

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

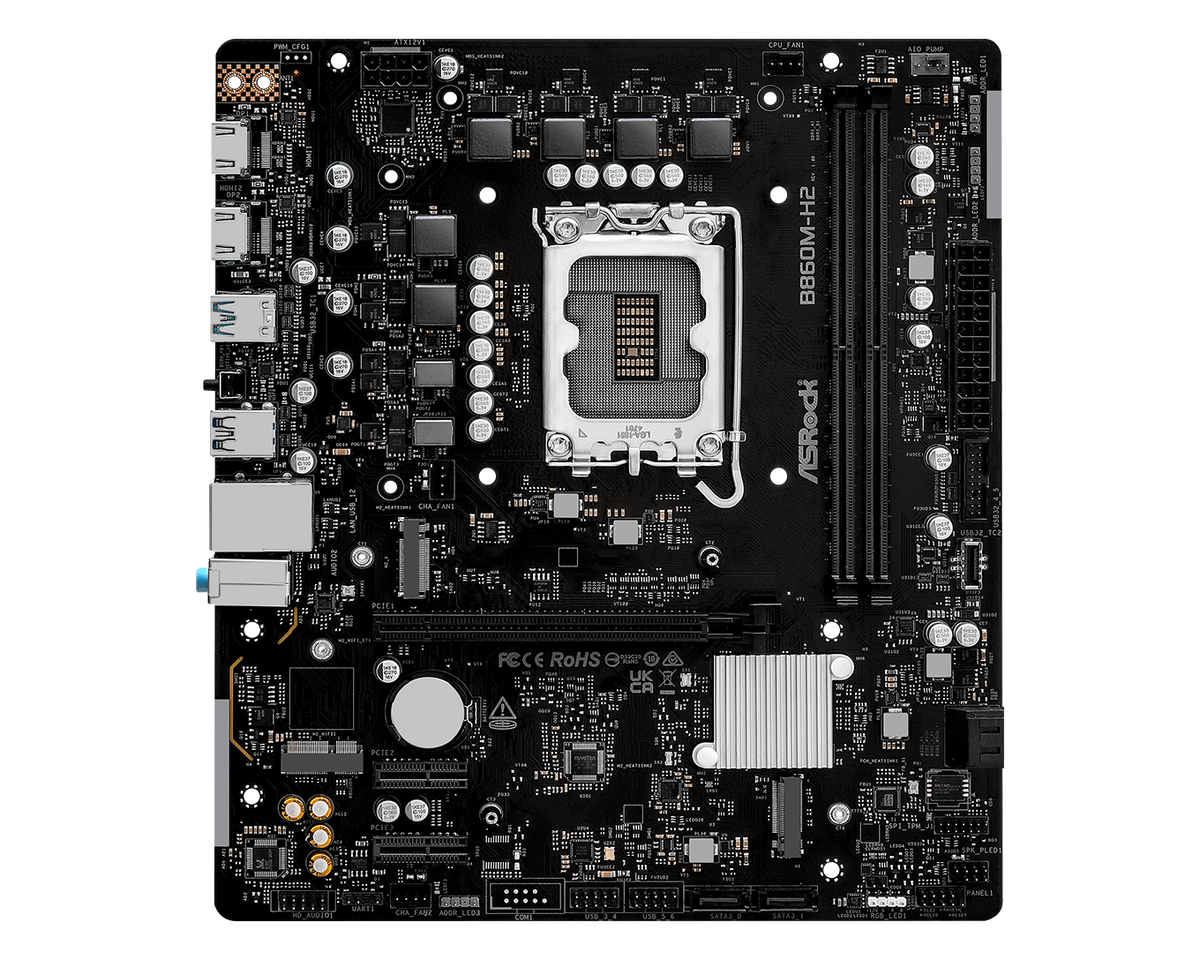

The ASRock B860M-H2 is an LGA1851 mATX motherboard built on Intel's B860 chipset, with 2 DDR5 DIMM slots for up to 128 GB, 2 M.2 slots and 1GbE LAN.

  • Platform LGA1851 · B860 chipset · Intel Core Ultra (Series 2)
  • Memory 2x DDR5 DIMM · up to 128 GB · DDR5 up to 8333 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16 · 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN · Realtek ALC897 audio
  • Rear I/O 6 USB (1x USB-C 20Gbps, 3x USB-A 5Gbps, 2x USB 2.0) · 2x HDMI · BIOS flashback (Q-Flash Plus)

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
B860
CHIPSET
2 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 28 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset B860
CPU Platform Intel
Form Factor mATX
CPU Support Intel Core Ultra (Series 2)
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 128 GB
Max OC Speed DDR5 up to 8333 MT/s (OC)
Memory Profiles Intel XMP, CUDIMM
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 2x M.2 (1x PCIe 5.0, 1x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
Display Outputs 2x HDMI
Audio Realtek ALC897
[ POWER ] SPEC·05
VRM Phases 1+1+1+1
[ PHYSICAL ] SPEC·06
Dimensions 244 x 211 mm
Color Black
Brand ASRock
Condition NEW
MFR Part B860M-H2
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
