ASRock board, 305 x 244 mm, 9 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel Core Ultra (Series 2).

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

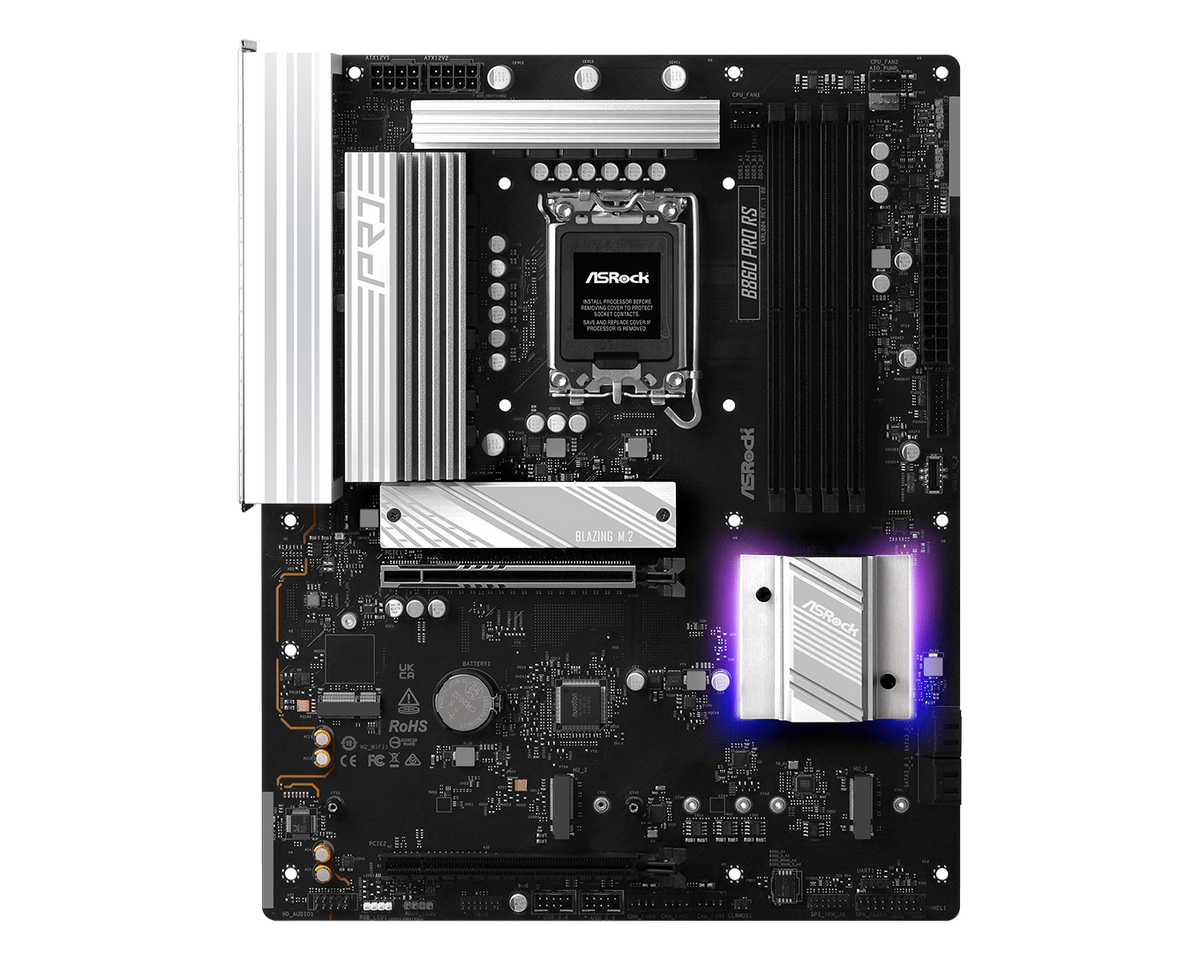

The ASRock B860 Pro RS is an LGA1851 ATX motherboard built on Intel's B860 chipset, with 4 DDR5 DIMM slots for up to 256 GB, 3 M.2 slots and 2.5GbE LAN.

  • Platform LGA1851 · B860 chipset · Intel Core Ultra (Series 2)
  • Memory 4x DDR5 DIMM · up to 256 GB · DDR5 up to 8666 MT/s (OC)
  • Expansion 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 · 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Dragon RTL8125BG) · Realtek ALC897 audio
  • Rear I/O 9 USB (1x USB-C 20Gbps, 6x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort · BIOS flashback (Q-Flash Plus)

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1851
CPU SOCKET
B860
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1851
Chipset B860
CPU Platform Intel
Form Factor ATX
CPU Support Intel Core Ultra (Series 2)
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 4
Max Memory 256 GB
Max OC Speed DDR5 up to 8666 MT/s (OC)
Memory Profiles Intel XMP, CUDIMM
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
PCIe Gen 5.0
M.2 Slots 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0)
M.2 Gen 5.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Dragon RTL8125BG
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ POWER ] SPEC·05
VRM Phases 1+1+1+1
[ PHYSICAL ] SPEC·06
Dimensions 305 x 244 mm
Color Black
Brand ASRock
Condition NEW
MFR Part B860 Pro RS
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
