ASRock board, 244 x 201 mm, 6 rear USB ports. Supports Intel Core 14th / 13th / 12th Gen.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

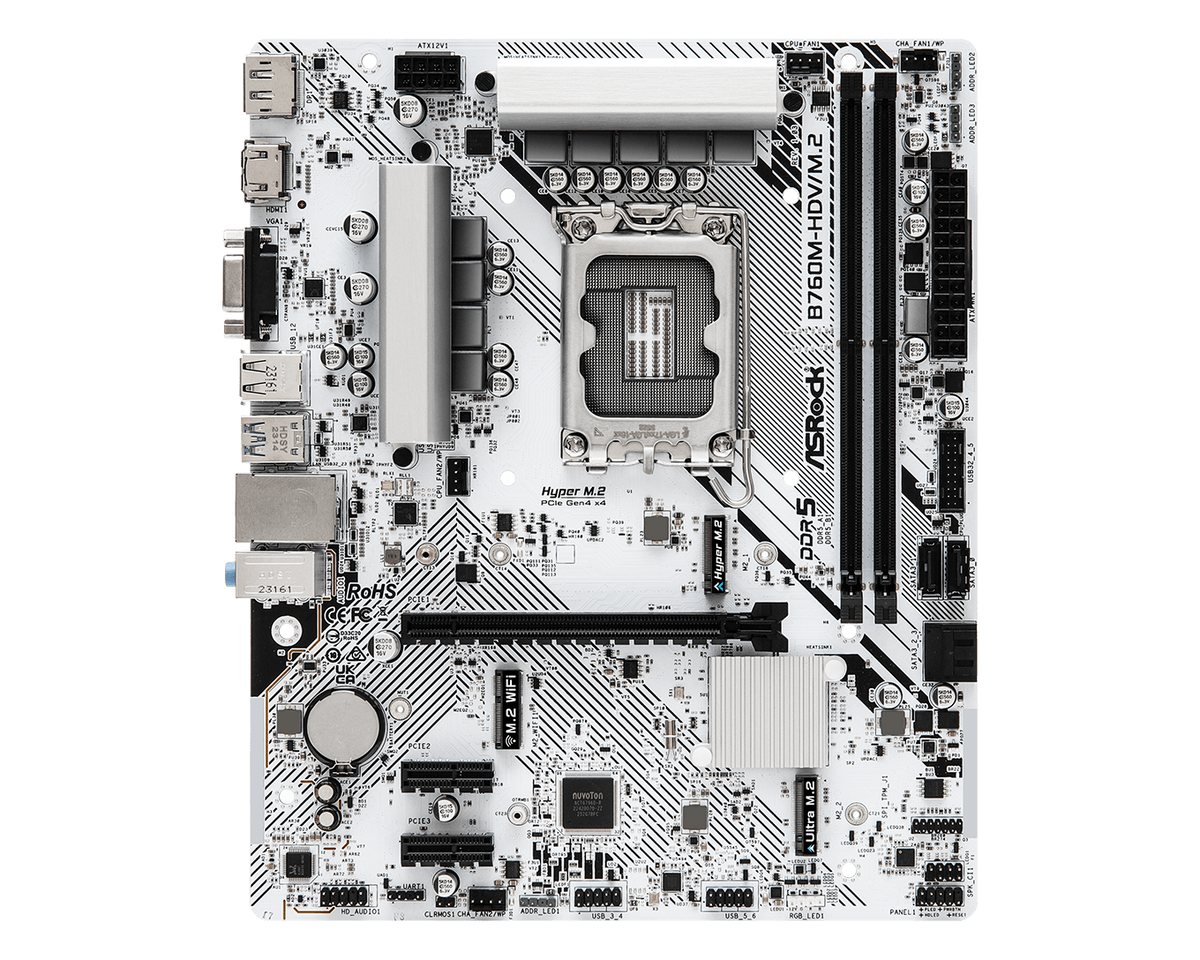

The ASRock B760M-HDV/M.2 is an LGA1700 mATX motherboard built on Intel's B760 chipset, with 2 DDR5 DIMM slots for up to 128 GB, 2 M.2 slots and 2.5GbE LAN.

  • Platform LGA1700 · B760 chipset · Intel Core 14th / 13th / 12th Gen
  • Memory 2x DDR5 DIMM · up to 128 GB · DDR5 up to 7200 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16 · 2x M.2 (1x PCIe 4.0, 1x PCIe 3.0) · 4x SATA 6Gb/s
  • Connectivity 2.5GbE LAN (Dragon RTL8125BG) · Realtek ALC897 audio
  • Rear I/O 6 USB (1x USB-C 5Gbps, 3x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
B760
CHIPSET
2 DIMM
MEMORY SLOTS
2 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 29 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset B760
CPU Platform Intel
Form Factor mATX
CPU Support Intel Core 14th / 13th / 12th Gen
BIOS Flashback No
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR5
DIMM Slots 2
Max Memory 128 GB
Max OC Speed DDR5 up to 7200 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16
PCIe Gen 4.0
M.2 Slots 2x M.2 (1x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 2.5 Gbps
LAN Chip Dragon RTL8125BG
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ POWER ] SPEC·05
VRM Phases 7+1+1
[ PHYSICAL ] SPEC·06
Dimensions 244 x 201 mm
Color White
Brand ASRock
Condition NEW
MFR Part B760M-HDV/M.2
[ SUPPORT ] SPEC·07
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
