[ UNIT BRIEFING ]

// ORBITAL INVENTORY

ASRock board, 305 x 244 mm, 6 rear USB ports, BIOS flashback (Q-Flash Plus). Supports Intel Core 14th / 13th / 12th Gen.

MFR WARRANTY
Limited ASROCK → (opens in a new tab)
NIMBUS COVERAGE
1 Year →
SHIPS FROM
Low Earth Orbit
FREIGHT
Free · contiguous USA

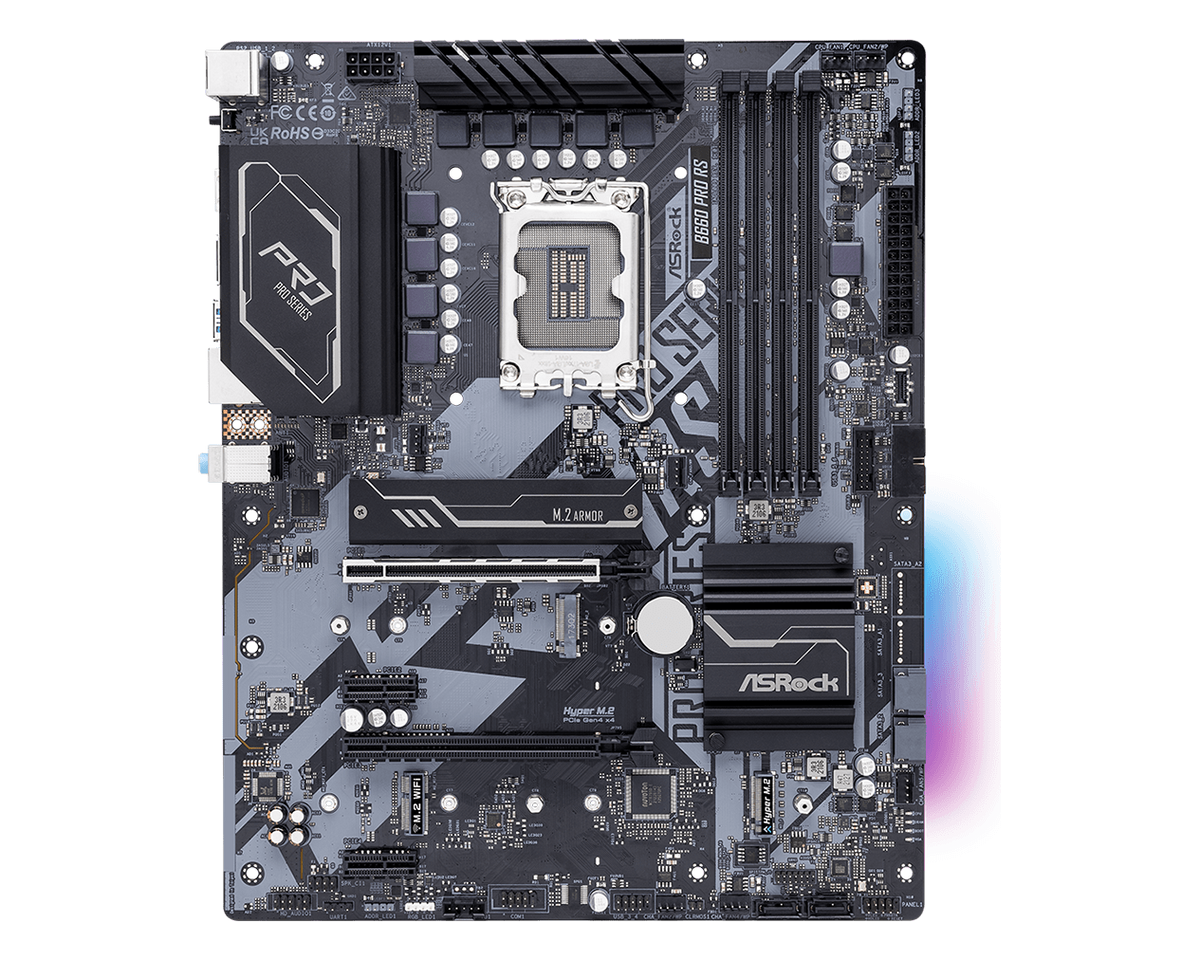

The ASRock B660 Pro RS is an LGA1700 ATX motherboard built on Intel's B660 chipset, with 4 DDR4 DIMM slots for up to 128 GB, 3 M.2 slots and 1GbE LAN.

  • Platform LGA1700 · B660 chipset · Intel Core 14th / 13th / 12th Gen
  • Memory 4x DDR4 DIMM · up to 128 GB · DDR4 up to 5333 MT/s (OC)
  • Expansion 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 · 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0) · 4x SATA 6Gb/s
  • Connectivity 1GbE LAN (Intel I219V) · Realtek ALC897 audio
  • Rear I/O 6 USB (4x USB-A 5Gbps, 2x USB 2.0) · 1x HDMI, 1x DisplayPort · BIOS flashback (Q-Flash Plus)

Limited manufacturer warranty from ASRock, plus NIMBUS Cybertech's 1 Year coverage.

Ships from NIMBUS Cybertech, Dallas TX. Free shipping within the contiguous USA.

[ SPEC MANIFEST ]
[ CORE TELEMETRY ] LIVE FEED
LGA1700
CPU SOCKET
B660
CHIPSET
4 DIMM
MEMORY SLOTS
3 M.2
STORAGE SLOTS
[ PARAMETER TABLE ] // 28 PARAMETERS
[ PLATFORM ] SPEC·01
Socket LGA1700
Chipset B660
CPU Platform Intel
Form Factor ATX
CPU Support Intel Core 14th / 13th / 12th Gen
BIOS Flashback Yes
Generation Current
[ MEMORY ] SPEC·02
Memory Type DDR4
DIMM Slots 4
Max Memory 128 GB
Max OC Speed DDR4 up to 5333 MT/s (OC)
Memory Profiles Intel XMP
[ EXPANSION ] SPEC·03
PCIe x16 Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x16
PCIe Gen 4.0
M.2 Slots 3x M.2 (2x PCIe 4.0, 1x PCIe 3.0)
M.2 Gen 4.0
SATA Ports 4x SATA 6Gb/s
[ CONNECTIVITY ] SPEC·04
LAN 1 Gbps
LAN Chip Intel I219V
Wi-Fi None
Display Outputs 1x HDMI, 1x DisplayPort
Audio Realtek ALC897
[ PHYSICAL ] SPEC·05
Dimensions 305 x 244 mm
Brand ASRock
Condition NEW
MFR Part B660 Pro RS
[ SUPPORT ] SPEC·06
Manufacturer Limited ASROCK → (opens in a new tab)
NIMBUS 1 Year →
